BDS SUSPENSION BDS829FSR 1 INCH LIFT KIT FOX 2.0 SNAP RING STRUT TOYOTA TACOMA 16-23 4WD WITH FOX 2.0 PERFORMANCE SHOCKS

Built to outperform, upgrade your 2016-2023 Toyota Tacoma with this 1-inch lift kit featuring FOX 2.0 Snap Ring Struts from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 32 inch tires.

Up front the lift kit includes FOX 2.0 Performance Series strut shocks and heavy duty tubular upper control arms for increased strength. In the rear this kit utilizes a matching set of FOX 2.0 Performance shocks for the smoothest ride.

FOX 2.0 Snap Ring Strut

The mono-tube design's internal reservoir separates the shock oil from the high-pressure, nitrogen-charged gas chamber. The Internal Floating Piston eliminates oil aeration allowing maximum performance from the factory-tuned, precision valving.

A custom-molded spring seat allows the use of your stock spring and mounting hardware. The precision, impact-extruded 2-inch aluminum body is lightweight and rust resistant. Three predetermined preload settings allow a choice of 0-, 1- or 2-inches of lift.

HD Upper Control Arms

Built for strength, performance and increased travel, these upper control arms are ready to bolt-in with most leveled/lifted trucks. They use 1.5 inch OD x .120-wall tubular construction with an indexed ball joint cup to correct the ball joint positioning allowing additional down travel and camber adjustment.

At the frame mounting ends are durometer-specific rubber bushings for maintenance-free operation while at the other end a quality greaseable ball joints for smooth, quiet operation and superior durability.

Arms are finished in a durable black powder coat with a billet aluminum dust cap ready for installation right out of the box.

• Front Lift Method: Coil-Over
• Rear Lift Method: Stock
• Shocks Included: Yes
• Front Lift Height: 1 inch
• Rear Lift Height: 0 inch

• FOX 2.0 performance series struts offer improved damper performance over factory and are a direct bolt-in replacement
• Performance UCAs increase strength and allow for more suspension travel
• FOX 2.0 performance series Internal Floating Piston rear shocks included
• Factory Protection Plus drivetrain warranty included
• Easy, 100 percent Bolt on installation

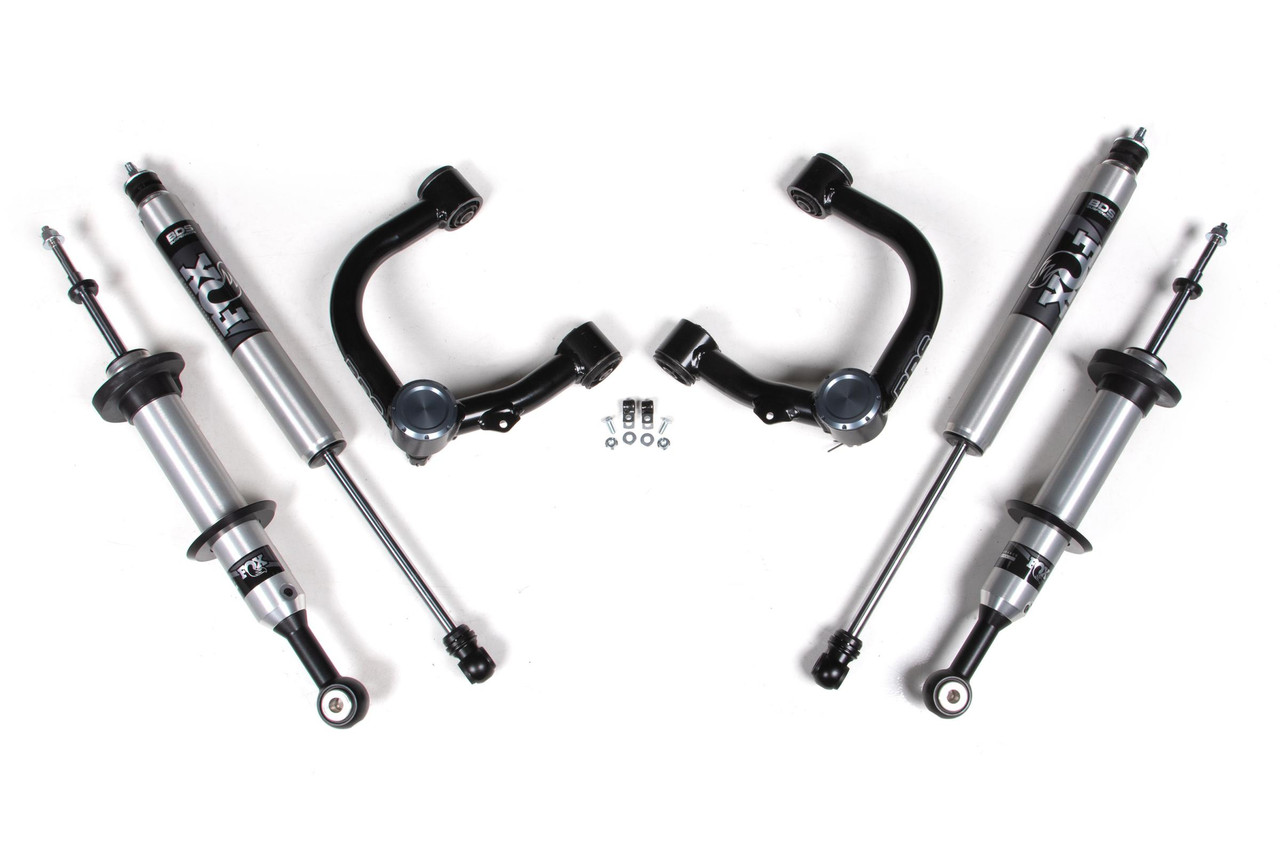

Kit Components:

• Includes one BDS128252, 2005-2023 Toyota Tacoma UCA Kit, UPC Code 711745607897
• Includes two FOX98024670, 05-ON Toyota Tacoma Rear, PS, 2.0, Internal Floating Piston, 8.1 inch, 0-1 Inch Lift
• Includes two FOX98562000, 16-ON Toyota Tacoma, Front C/O, Snap Ring, PS, 2.0, Internal Floating Piston, 4.8 inch, 0-2 inch Lift, UPC Code 788000424698

Enhance your driving experience with the BDS Suspension BDS829FSR 1-Inch Lift Kit, expertly designed for 2016-2023 Toyota Tacoma 4WD models. This premium lift kit elevates your Tacoma by one inch, providing improved stance, performance, and off-road capability while accommodating tire sizes up to 32 inches.

At the forefront of this kit are the FOX 2.0 Snap Ring Struts, engineered for superior shock absorption and durability. The mono-tube design features an internal reservoir that separates shock oil from the nitrogen gas chamber, reducing aeration and maximizing performance. Equipped with factory-tuned precision valving, these struts deliver an exceptional on-road and off-road experience. A custom-molded spring seat allows for the utilization of your stock spring and mounting hardware, making installation a breeze.

Complementing the front struts are heavy-duty tubular upper control arms (UCAs), crafted from robust 1.5-inch outer diameter, .120-wall tubular steel. These arms enhance strength, increase travel, and offer improved alignment and camber adjustments with an indexed ball joint cup. The design prioritizes durability, featuring maintenance-free rubber bushings at the frame mounts and greaseable ball joints for smooth operation.

This complete lift kit also includes FOX 2.0 Performance shocks for the rear, ensuring a balanced and smooth ride across all terrains. With easy, 100% bolt-on installation, transforming your Tacoma’s handling and aesthetics has never been easier. Plus, the kit comes with the Factory Protection Plus drivetrain warranty for added peace of mind.

Elevate your off-road adventures and enjoy unmatched performance with the BDS Suspension BDS829FSR Lift Kit, where quality meets convenience and strength.
