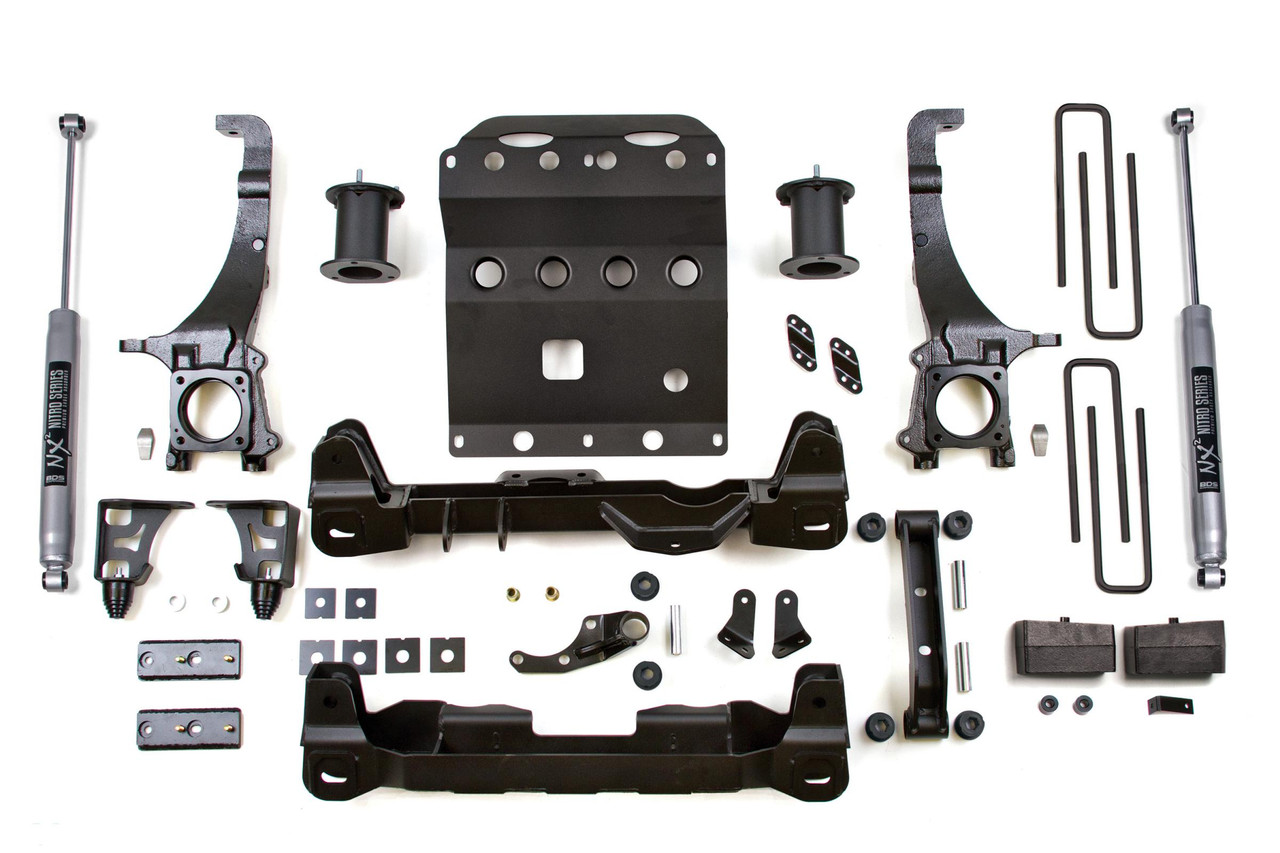

BDS SUSPENSION BDS816H 4 INCH LIFT KIT TOYOTA TACOMA 05-15 4WD NX2 NITRO

BDS steps up the performance and capability of the 2005-2015 Toyota Tacoma 4WD trucks with a 4-inch suspension lift kit. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 33 inch Tires

This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics.

Up front, the kit utilizes top mounted strut spacers, high-arched 1/4-inch thick steel crossmembers along with a multipiece differential relocation brackets and heavy duty skid plates built for offroad protection.

Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles utilizing factory tie rod ends allowing for ESC system compatibility.

These combined with the provided sway bar drops, bump stop extensions, brake line brackets, lower control arm cams, supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it.

In the rear, this kit utilizes heavy duty cast steel lift blocks, brake line bracket and longer u-bolts. The rear of this kit is rounded out with your choice of specially tuned NX2 nitro series gas shocks or FOX 2.0 Internal Floating Piston performance series gas shocks to offer improved damper performance.

High Clearance Crossmembers

BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.

Heavy Duty Steering Knuckles

BDS corrects steering geometry at the new taller ride height using a pair of high-strength, CNC machined ductile cast iron steering knuckle design to work with factory tie rod ends to maintain steering angles for proper function and ESC compatibility.

• Front Lift Method: Cross-Member
• Rear Lift Method: Block
• Shocks Included: Yes
• Front Lift Height: 4 inch
• Rear Lift Height: 3 inch

1. Will not work on TRD Pro Models
2. Minor welding required
3. Requires frame bracket modification
4. Stock wheels cannot be reinstalled
5. System will work on 2WD PreRunner models
6. Can not use 17 inch wheels.
7. Some 2014-15 models may not achieve net lift height stated but will have the same lift stance/final height of an equally equipped 05-13 model
8. Fox Shocks required for 2013-2016 models

• High clearance crossmember design maximizes ground clearance
• Robust steering knuckles maintain ESC system compliance
• HD skid plate system improved offroad protection
• Multipoint differential relocation brackets to secure the front axle and improve CV angles
• BDS NX2 gas or FOX performance series Internal Floating Piston gas shocks to improved ride and offroad performance
• Factory Protection Plus drivetrain warranty included

Rear Shock Option NX2 Nitro Series

• Nitrogen-charged
• Twin-tube design
• 10-stage velocity-sensitive valving
• Dual-welded ends for increased strength
• 1-3/8-inch high-flow piston
• Self-lubricating seals
• Silver powder coat finish

Tire Size: 33 x 12.5 Wheel Diameter: 20 x 9 Back Spacing: 4.5

Kit Components:

• Includes one BDS018318, 2005-2023 Tacoma 3 inch Rear Block Kit, UPC Code 658848614455
• Includes one BDS028403, 2005-2023 Tacoma 4 inch Front Box Kit 4 of 4, UPC Code 658848616176
• Includes one BDS028600, 2005-2023 Toyota Tacoma Front Box Kit 1 of 4, UPC Code 658848616190
• Includes one BDS028601, 05-15 Tacoma Front Box Kit 2 of 4, UPC Code 658848616206
• Includes one BDS028602, 05-15 Tacoma Front Box Kit 3 of 4, UPC Code 658848616213
• Includes two BDS85954, Shock - 26.17 x 15.55 x 2-3/8 - S1/EB1, UPC Code 711745610071

Elevate your off-road adventure with the BDS SUSPENSION BDS816H 4 INCH LIFT KIT designed for the 2005-2015 Toyota Tacoma 4WD. Crafted to enhance both performance and capability, this comprehensive lift kit allows for the installation of larger tires, accommodating up to 33 inches for a rugged, commanding stance.

The innovative high-clearance design ensures increased ground clearance and durability, making it ideal for navigating rough terrains. Featuring robust steel crossmembers and high-arched components, the front suspension lift utilizes top-mounted strut spacers and heavy-duty skid plates that offer exceptional protection against the elements and obstacles.

Key improvements in steering geometry are achieved with CNC-machined ductile iron steering knuckles that not only enhance functionality but also maintain ESC system compatibility. The thoughtful inclusion of sway bar drops, bump stop extensions, and brake line brackets ensures that installation is seamless and the driving experience remains smooth and stable.

In the rear, the kit integrates heavy-duty cast steel lift blocks, extended u-bolts, and offers an option for specialized NX2 nitro series or FOX 2.0 internal floating piston performance shocks, enhancing dampening and overall off-road performance.

With a front lift height of 4 inches and a rear lift of 3 inches, this kit transforms your Tacoma into a powerful vehicle ready to tackle any challenge. Additional features like a factory-backed drivetrain warranty and a robust installation system secure peace of mind.

Note that some modifications may be required for proper fitting; specifically, stock wheels cannot be reinstalled, and certain model adjustments are necessary to ensure optimal lift and performance. Take your Toyota Tacoma to new heights with the BDS816H lift kit—designed for adventure and built for the trails.
