BDS SUSPENSION

BDS SUSPENSION BDS816FS 4 INCH LIFT KIT TOYOTA TACOMA 05-15 4WD FOX 2.0 PERFORMANCE SHOCKS

(No reviews yet) Write a Review
SKU:
BDS816FS
MPN:
BDS816FS
Shipping:
Calculated at Checkout
  • BDS SUSPENSION BDS816FS 4 INCH LIFT KIT TOYOTA TACOMA 05-15 4WD FOX 2.0 PERFORMANCE SHOCKS
  • BDS SUSPENSION BDS816FS 4 INCH LIFT KIT TOYOTA TACOMA 05-15 4WD FOX 2.0 PERFORMANCE SHOCKS
$2,198.60

Description

BDS steps up the performance and capability of the 2005-2015 Toyota Tacoma 4WD trucks with a 4-inch suspension lift kit. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 33 inch Tires

This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics.

Up front, the kit utilizes top mounted strut spacers, high-arched 1/4-inch thick steel crossmembers along with a multipiece differential relocation brackets and heavy duty skid plates built for offroad protection.

Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles utilizing factory tie rod ends allowing for ESC system compatibility.

These combined with the provided sway bar drops, bump stop extensions, brake line brackets, lower control arm cams, supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it.

In the rear, this kit utilizes heavy duty cast steel lift blocks, brake line bracket and longer u-bolts. The rear of this kit is rounded out with your choice of specially tuned NX2 nitro series gas shocks or FOX 2.0 Internal Floating Piston performance series gas shocks to offer improved damper performance.

High Clearance Crossmembers

BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.

Heavy Duty Steering Knuckles

BDS corrects steering geometry at the new taller ride height using a pair of high-strength, CNC machined ductile cast iron steering knuckle design to work with factory tie rod ends to maintain steering angles for proper function and ESC compatibility.

  • Front Lift Method: Cross-Member
  • Rear Lift Method: Block
  • Shocks Included: Yes
  • Front Lift Height: 4 inch
  • Rear Lift Height: 3 inch
  1. Will not work on TRD Pro Models
  2. Minor welding required
  3. Requires frame bracket modification
  4. Stock wheels cannot be reinstalled
  5. System will work on 2WD PreRunner models
  6. Can not use 17 inch wheels.
  7. Some 2014-15 models may not achieve net lift height stated but will have the same lift stance/final height of an equally equipped 05-13 model
  8. Fox Shocks required for 2013-2016 models
  • High clearance crossmember design maximizes ground clearance
  • Robust steering knuckles maintain ESC system compliance
  • HD skid plate system improved offroad protection
  • Multipoint differential relocation brackets to secure the front axle and improve CV angles
  • BDS NX2 gas or FOX performance series Internal Floating Piston gas shocks to improved ride and offroad performance
  • Factory Protection Plus drivetrain warranty included

Rear Shock Option

FOX 2.0 Performance Series

  • 2-inch Impact extruded aluminum body
  • Internal floating piston (Internal Floating Piston) monotube design
  • CNC machined 6061-T6 aluminum mounting ends
  • Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
  • Race-developed high-flow piston design
  • Application-specific valving to maximize performance
  • Long-lasting clear anodized finish

Tire Size: 33 x 12.5 Wheel Diameter: 20 x 9 Back Spacing: 4.5

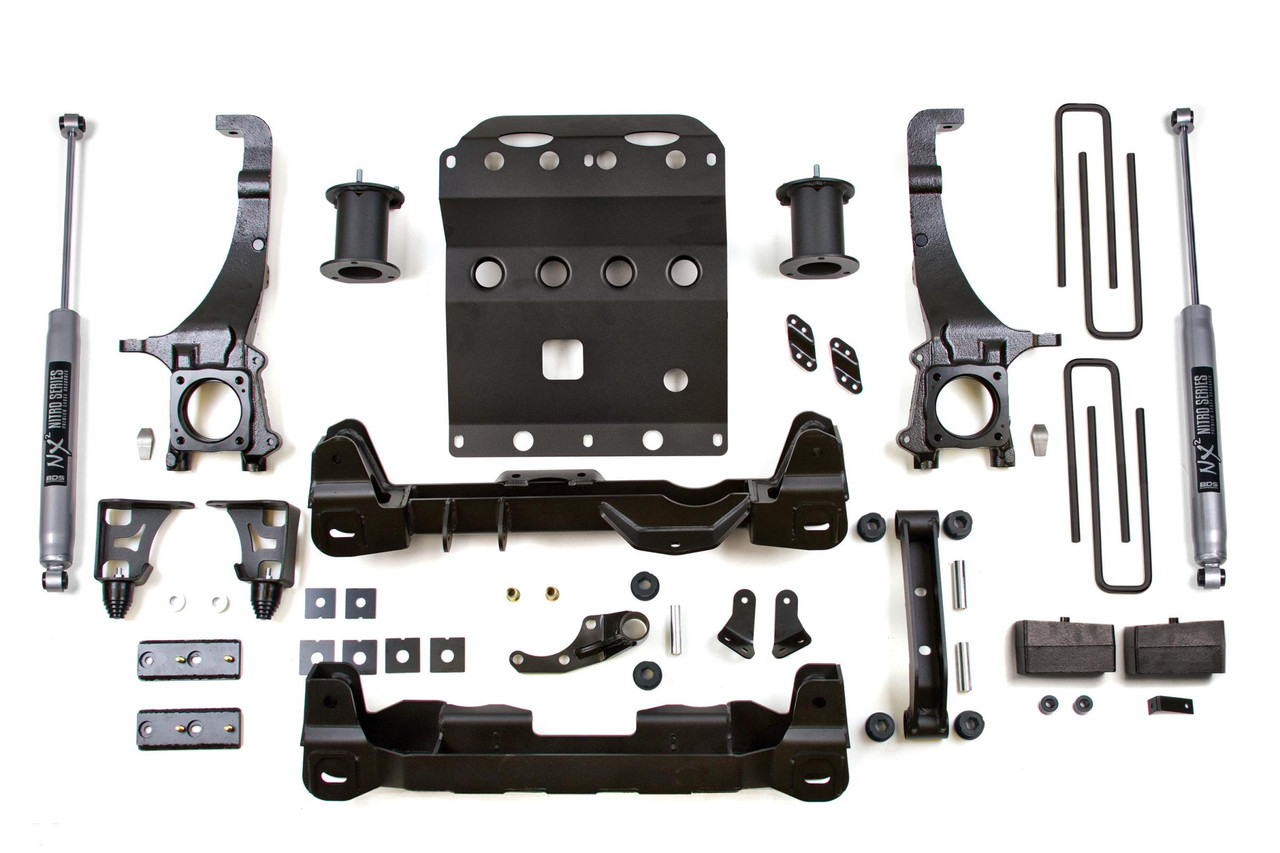

Kit Components:

  • Includes one BDS018318, 2005-2023 Tacoma 3 inch Rear Block Kit, UPC Code 658848614455
  • Includes one BDS028403, 2005-2023 Tacoma 4 inch Front Box Kit 4 of 4, UPC Code 658848616176
  • Includes one BDS028600, 2005-2023 Toyota Tacoma Front Box Kit 1 of 4, UPC Code 658848616190
  • Includes one BDS028601, 05-15 Tacoma Front Box Kit 2 of 4, UPC Code 658848616206
  • Includes one BDS028602, 05-15 Tacoma Front Box Kit 3 of 4, UPC Code 658848616213
  • Includes two FOX98224954, Fox 2.0 Shock 26.15 x 16.05 x 2- S50/EB1

The BDS SUSPENSION BDS816FS 4 INCH LIFT KIT is expertly engineered for 2005-2015 Toyota Tacoma 4WD trucks, enhancing both performance and aesthetic appeal. This comprehensive lift kit elevates your Tacoma by four inches, creating enough space for up to 33-inch tires, ensuring a commanding presence on and off the road.

Built with BDS’s high-clearance design, this kit significantly increases ground clearance while reinforcing the vehicle’s structural integrity. Front components include precision-engineered top-mounted strut spacers, robust 1/4-inch thick steel crossmembers, and heavy-duty skid plates. These elements are designed to provide exceptional off-road security while maintaining excellent on-road handling characteristics.

The kit also focuses on steering geometry correction at the new ride height, utilizing CNC-machined ductile iron steering knuckles that are compatible with factory tie rod ends, ensuring ESC system compliance. Accompanying components — such as sway bar drops, bump stop extensions, and brake line brackets — come included, ensuring a seamless front suspension lift installation.

In the rear, heavy-duty cast steel lift blocks, alongside longer u-bolts, complete the setup. Customers can choose between BDS NX2 nitro series gas shocks or premium FOX 2.0 Internal Floating Piston shocks, both designed to elevate damping performance for an unparalleled driving experience.

Additional features include high-clearance crossmembers to maximize ground clearance, multipoint differential relocation brackets to improve CV angles, and a robust skid plate system for enhanced off-road protection. With the inclusion of a Factory Protection Plus drivetrain warranty, this lift kit promises durability and reliability.

Transform your Tacoma into a powerful, off-road capable machine with the BDS SUSPENSION BDS816FS Lift Kit.

View AllClose

Warranty Information

Lifetime Replacement Warranty Extends to Cover all BDS Hard Parts
