BDS SUSPENSION BDS815FS 6 INCH LIFT KIT TOYOTA TACOMA 05-15 4WD FOX 2.0 PERFORMANCE SHOCKS

BDS steps up the performance and capability of the 2005-2015 Toyota Tacoma 4WD trucks with a 6-inch suspension lift kit. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35 inch Tires

This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics.

Up front, the kit utilizes top mounted strut spacers, high-arched 1/4-inch thick steel crossmembers along with a multipiece differential relocation brackets and heavy duty skid plates built for offroad protection.

Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles utilizing factory tie rod ends allowing for ESC system compatibility.

These combined with the provided sway bar drops, bump stop extensions, brake line brackets, lower control arm cams, supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it.

In the rear, this kit utilizes heavy duty cast steel lift blocks, brake line bracket and longer u-bolts. The rear of this kit is rounded out with your choice of specially tuned NX2 nitro series gas shocks or FOX 2.0 Internal Floating Piston performance series gas shocks to offer improved damper performance.

High Clearance Crossmembers

BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.

Heavy Duty Steering Knuckles

BDS corrects steering geometry at the new taller ride height using a pair of high-strength, CNC machined ductile cast iron steering knuckle design to work with factory tie rod ends to maintain steering angles for proper function and ESC compatibility.

• Front Lift Method: Cross-Member
• Rear Lift Method: Block
• Shocks Included: Yes
• Front Lift Height: 6 inch
• Rear Lift Height: 4 inch

1. Minor welding required
2. Requires frame bracket modification
3. Strut compressor required for installation
4. Stock wheels cannot be reinstalled
5. System will work on 2WD PreRunner models
6. Can not use 17 inch wheels.
7. Some 2014-15 models may not achieve net lift height stated but will have the same lift stance/final height of an equally equipped 05-13 model

• High clearance crossmember design maximizes ground clearance
• Robust steering knuckles maintain ESC system compliance
• HD skid plate system improved offroad protection
• Multipoint differential relocation brackets to secure the front axle and improve CV angles
• BDS NX2 gas or FOX performance series Internal Floating Piston gas shocks to improved ride and offroad performance
• Factory Protection Plus drivetrain warranty included

Rear Shock Option

FOX 2.0 Performance Series

• 2-inch Impact extruded aluminum body
• Internal floating piston (Internal Floating Piston) monotube design
• CNC machined 6061-T6 aluminum mounting ends
• Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• Long-lasting clear anodized finish

Tire Size: 35 x 12.5 Wheel Diameter: 20 x 9 Back Spacing: 4.5

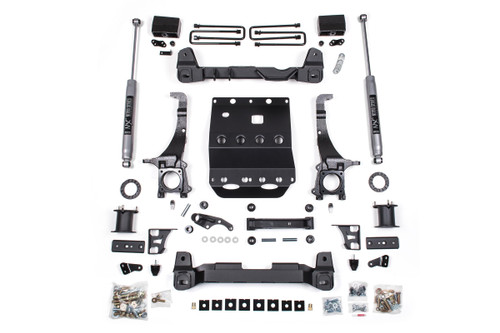

Kit Components:

• Includes one BDS018408, 2005-2023 Toyota Tacoma 4 inch Rear Block Kit, UPC Code 658848614479
• Includes one BDS028600, 2005-2023 Toyota Tacoma Front Box Kit 1 of 4, UPC Code 658848616190
• Includes one BDS028601, 05-15 Tacoma Front Box Kit 2 of 4, UPC Code 658848616206
• Includes one BDS028602, 05-15 Tacoma Front Box Kit 3 of 4, UPC Code 658848616213
• Includes one BDS028603, 2005-2023 Tacoma 6 inch Frt Box Kit 4 of 4, UPC Code 658848616220
• Includes two FOX98224953, Fox 2.0 Shock 29.85 x 18.25 x 2- S50/EB1

Elevate the driving experience of your 2005-2015 Toyota Tacoma 4WD with the BDS SUSPENSION BDS815FS 6 Inch Lift Kit, specifically designed to enhance performance and capability like never before. This comprehensive kit is engineered for off-road enthusiasts seeking to improve their truck’s stance, offering the perfect clearance for up to 35-inch tires.

The BDS lift kit features a high-clearance design that significantly improves ground clearance and off-road protection. It includes robust components such as top-mounted strut spacers and a set of heavy-duty 1/4-inch thick steel crossmembers, ensuring strength and durability under even the most challenging conditions. The precision-engineered multilayer differential relocation brackets maintain superior steering geometry, enabling your truck to navigate rough terrains while maintaining an impressive handling capability on paved roads.

The front suspension benefits from CNC-machined ductile iron steering knuckles that work seamlessly with factory tie rod ends, ensuring electronic stability control compatibility. With the inclusion of sway bar drops, bump stop extensions, and brake line brackets, installation is streamlined and straightforward.

In the rear, the lift kit utilizes heavy-duty cast steel lift blocks and extended u-bolts to enhance durability. It also offers a choice between specially tuned NX2 nitro series gas shocks or FOX 2.0 Internal Floating Piston shocks, both designed to maximize ride quality and performance.

With its innovative features like high-clearance crossmembers, robust steering knuckles, and impressive off-road capabilities, the BDS SUSPENSION BDS815FS 6 Inch Lift Kit redefines what your Tacoma can achieve. Whether tackling rugged trails or cruising through urban environments, this kit is the ultimate upgrade for any Tacoma owner looking to enhance their vehicle’s performance and outlook. Enjoy the assurance of the Factory Protection Plus drivetrain warranty, giving you peace of mind for your adventures ahead.
