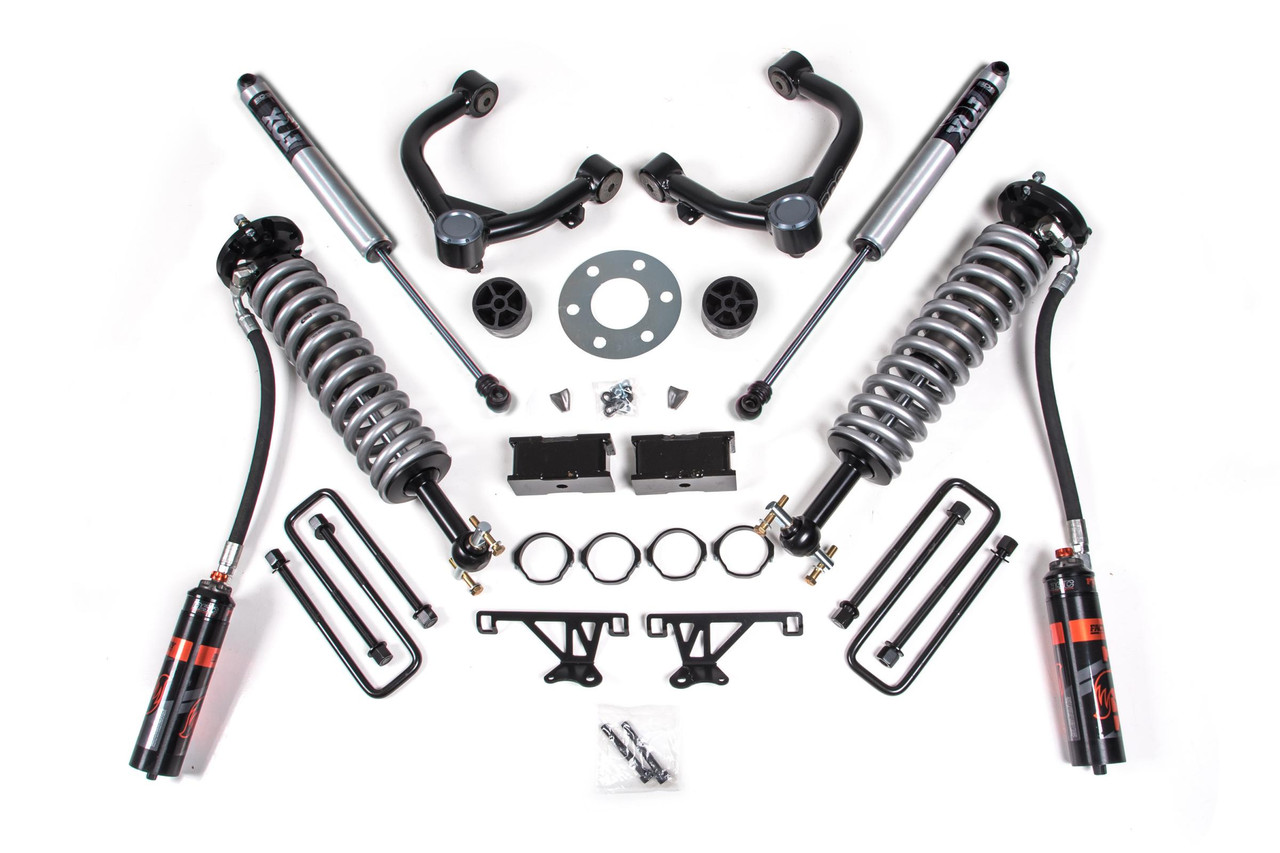

BDS SUSPENSION BDS774FDSC 1.5 INCH LIFT KIT FOX 2.5 PERFORMANCE ELITE COIL-OVER CHEVY TRAIL BOSS OR GMC AT4 1500 19-24 4WD WITH FOX 2.5 PERFORMANCE ELITE SHOCKS

Up the ante in your Chevy Trail Boss or GMC AT4 1500 truck with style and performance by installing this 1.5-inch lift kit featuring FOX Performance Elite 2.5 coil-over shocks from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35 inch tires (Chevy) or 33 inch tires (GMC).

Up front the lift kit includes FOX 2.5 Performance Elite Series remote reservoir coil-over shocks and heavy duty tubular upper control arms for increased strength. In the rear this kit utilizes fabricated steel lift blocks, longer u-bolts and a complementary set of FOX 2.0 Performance shocks for the smoothest ride.

FOX Performance Elite

FOX 2.5 Performance Elite shocks offer next level performance for on-road comfort and off-road comfort capability. Tuned and ready to install right out of the box, these bolt-on 2.5-inch diameter shocks are built for abuse and packed with race-proven technology.

They include a remote reservoir for additional fluid capacity to keep your shocks running cool so you can push the limits in the rough terrain. The Dual Speed Compression Adjust adjuster adds remarkable versatility and precise tuning with a simple twist of either two adjuster knobs, offering 10 separate low-speed and 12 high-speed compression levels, with a black anodized aluminum reservoir to increase cooling efficiency.

HD Upper Control Arms (UCAs)

Built for strength, performance and increased travel, these upper control arms are ready to bolt-in with most leveled/lifted trucks. They use 1.5 inch OD x .120-wall tubular construction with an indexed ball joint cup to correct the ball joint positioning allowing additional down travel and camber adjustment.

At the frame mounting ends are durometer-specific rubber bushings for maintenance-free operation while at the other end a quality greaseable ball joints for smooth, quiet operation and superior durability. Arms are finished in a durable black powder coat with a billet aluminum dust cap ready for installation right out of the box.

• Front Lift Method: Coil-Over
• Rear Lift Method: Stock
• Shocks Included: Yes
• Front Lift Height: 1.5 inch
• Rear Lift Height: 0 inch

1. Requires a maximum of 5.5 inch BS Wheel for tire clearance to the upper ball joint
2. All aftermarket wheels should be test fit prior to mounting the tire to ensure proper clearance to the brake caliper. Some wheel profiles will not clear the brake caliper. These can be test fitted before the vehicle is lifted in a stock condition
3. Will NOT fit models with a single leaf spring (monoleaf) rear suspension.

• FOX 2.5 Performance Elite coil-overs offer improved damper performance over stock
• Dual Speed Compression Adjust Adjuster allows easy high-speed and low-speed compression tuning for optimal performance in any terrain
• Performance UCAs increase strength and allow for more suspension travel
• FOX 2.0 performance series Internal Floating Piston rear shocks included
• Factory Protection Plus drivetrain warranty included
• Easy, 100 percent Bolt on installation

Rear Shock Option

FOX 2.5 Performance Elite Series

• Increased off-road capabilities
• Easily adjust your shock for terrain, load and speed
• 2.5-inch Impact extruded aluminum body
• Massive 7/8-inch hard chrome plated heat-treated alloy steel shaft
• External reservoir design separates shock oil from the high-pressure nitrogen
• Dual Speed Compression Adjust - Dual Speed Compression Adjuster comes standard
• Fully serviceable for a lifetime of use
• 1-year Manufacturer's Warranty

Tire Size: 33 x 12.5 Wheel Diameter: 20 x 9 Back Spacing: 5.5

• Front Lift Method: Coil-Over
• Rear Lift Method: Stock
• Shocks Included: Yes
• Front Lift Height: 1.5 inch
• Rear Lift Height: 0 inch

Kit Components:

• Includes one BDS011350, 2019-2024 Chevrolet Silverado/GMC Sierra 1500 Coilover 3.5 inch Box Kit, UPC Code 658848611775
• Includes one FOX88306162, Kit: 2019-2024 GM 1500, w/UCA, Front Coilover, 2.5 Series, AL, R/R, 6.0 inch, Non-TB/Non-AT4 3.5 inch Lift, TB/AT4 1.5 inch Lift, UPC Code 711745603943
• Includes one FOX88326087, 2019-2024 GM 1500, Rear, 2.5 Truck Fox Performance Elite Series, R/R, 10.5 inch, Non-TB/Non-AT4 2.5-4 inch Lift, TB/AT4 0-2 inch Lift, Dual Speed Compression Adjust, UPC Code 711745591349

Transform your Chevy Trail Boss or GMC AT4 1500 into an elevated powerhouse with the BDS SUSPENSION BDS774FDSC 1.5-Inch Lift Kit. Engineered for optimal performance, this kit includes FOX 2.5 Performance Elite coil-over shocks, ensuring robust ride quality and enhanced off-road capability. Designed for vehicles built between 2019 and 2024, it provides an excellent foundation for tackling any terrain, with clearance for impressive tire sizes—up to 35 inches for Chevy or 33 inches for GMC.

At the front, this lift kit features high-strength FOX 2.5 Performance Elite Series remote reservoir coil-over shocks paired with heavy-duty tubular upper control arms. This combination not only improves suspension travel but also strengthens your vehicle’s stance and performance, allowing you to conquer rugged landscapes with confidence. The rear utilizes fabricated steel lift blocks, longer u-bolts, and FOX 2.0 Performance shocks for a consistently smooth ride, ensuring stability and comfort no matter the load or terrain.

With an easy, 100% bolt-on installation, you won't have to worry about complicated setups. The innovative Dual Speed Compression Adjust feature provides unrivaled flexibility in tuning your shocks, enabling quick adjustments between 10 low-speed and 12 high-speed compression settings. For those looking for maximum durability and extended lifespan, these shocks come fully serviceable, ensuring long-term reliability.

Additionally, the included upper control arms feature indexed ball joint cups for enhanced alignment and travel, crafted from durable materials and finished with a robust black powder coat. The comprehensive installation kit primes you for adventure, integrating seamlessly into your truck and elevating its performance to new heights. With the BDS SUSPENSION BDS774FDSC lift kit, adventure awaits.
