BDS SUSPENSION BDS769FDSC 2 INCH LIFT KIT FOX 2.5 COIL-OVER SILVERADO/SIERRA 1500 07-18 4WD ALUMINUM/STAMPED STEELFOX 2.5 PERFORMANCE SHOCKS

Take your 2007-2018 Chevy Silverado and GMC Sierra 1500 truck to the next level and improve the ride with this 2-inch lift kit featuring FOX 2.5 coil-over shocks from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 33 inch Tires.

Up front the lift kit includes FOX 2.5 Factory Series remote reservoir coil-over shocks and heavy duty tubular upper control arms for increased strength. In the rear this kit utilizes a complementary set of FOX 2.0 Performance shocks for the smoothest ride.

Dual Speed Compression Adjust Adjustment

FOX 2.5 coil-overs are available with optional Dual Speed Compression Adjust (dual speed compression) adjustment to tune the high-speed and low-speed compression damping allowing for added control on-road with the ability to easily dial in more aggressive damping offroad. Tuning is a simple twist of the two clearly defined knobs with immediate feedback to dial it in for any terrain.

HD Upper Control Arms (UCAs)

Built for strength, performance and increased travel, these upper control arms are ready to bolt-in with most leveled/lifted trucks. They use 1.5 inch OD x .120-wall tubular construction with an indexed ball joint cup to correct the ball joint positioning allowing additional down travel and camber adjustment.

At the frame mounting ends are durometer-specific rubber bushings for maintenance-free operation while at the other end a quality greaseable ball joints for smooth, quiet operation and superior durability. Arms are finished in a durable black powder coat with a billet aluminum dust cap ready for installation right out of the box.

• Front Lift Method: Coil-Over
• Rear Lift Method: Stock
• Shocks Included: Yes
• Front Lift Height: 2 inch
• Rear Lift Height: 0 inch

1. 33x12.50 Tires will require weld on steering stop, also it requires inner fender well modification to clear this width Tire
2. Will Not fit MagneRide magnetic ride control equipped models

• FOX 2.5 Factory series coil-overs offer improved damper performance over stock
• Performance UCAs increase strength and allow for more suspension travel
• FOX 2.0 performance series Internal Floating Piston rear shocks included
• Factory Protection Plus drivetrain warranty included
• Easy, 100 percent Bolt on installation

Factory Control Arm Type - Aluminum / Stamped Steel

Important: GM is producing several knuckle/control arm configurations in 2014-2018 models trucks.

Cast Steel control arm equipped models will require the Cast Steel Control Arm kit. Stamped Steel and Aluminum control arm equipped models will require the Aluminum Control Arm kit.

Tire Size: 285 / 70 Tire Size 2: 33 x 12.5 Wheel Diameter: 20 x 9 Wheel Diameter 2: 20 x 94.5

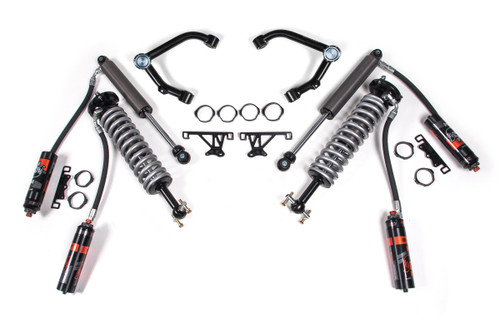

Kit Components:

• Includes one BDS121152, 2014-18 GM 1500 UCA - Aluminum / Stamped Steel CA, UPC Code 658848618897
• Includes one FOX88306121, Kit: 07-ON Chevy 1500 Front Coilover, 2.5 Series, R/R, 4.4 inch, 0-2 inch Lift, Dual Speed Compression Adjust, UPC Code 714686852166
• Includes two FOX98224719, Fox 2.0 Shock 26.85 x 16.75 x 2- EB1/EB1

Transform your 2007-2018 Chevy Silverado or GMC Sierra 1500 into an off-road powerhouse with the BDS SUSPENSION BDS769FDSC 2-inch lift kit. Featuring premium FOX 2.5 coil-over shocks, this lift kit redefines vehicle performance and stance, ensuring your truck stands out on any terrain while providing a smoother ride.

Engineered for durability and enhanced capabilities, the BDS769FDSC kit enables clearance for tires up to 33 inches, elevating your truck's profile and off-road prowess. The kit includes FOX 2.5 Factory Series remote reservoir coil-over shocks, which offer advanced moisture control and better damping performance compared to stock shocks. These are complemented by heavy-duty tubular upper control arms designed to withstand all the rigors of off-road driving, ensuring superior strength and increased suspension travel.

One of the standout features is the optional Dual Speed Compression Adjust, allowing users to easily tune the shock settings for both on-road comfort and off-road challenges. The intuitive adjustment knobs provide immediate feedback, making it simple to customize your ride. This means enhanced control when navigating rugged terrains or simply cruising on highways.

The kit also employs robust 1.5-inch OD x .120-wall tubular upper control arms that enhance the truck's handling and steering precision. With maintenance-free rubber bushings and greaseable ball joints, installation is straightforward and leads to long-lasting performance.

Backing your purchase is the Factory Protection Plus drivetrain warranty, ensuring peace of mind as you pursue adventures. The BDS769FDSC lift kit is designed for easy, 100% bolt-on installation—get ready to elevate your driving experience and tackle new challenges head-on. Dive into the world of off-roading with confidence and style.
