BDS SUSPENSION BDS753FPE 6.5 INCH LIFT KIT FOX 2.5 COIL-OVER CONVERSION SILVERADO/SIERRA 2500HD/3500HD 20-24 DIESEL BLOCK WITHOUT FACTORY OVERLOAD FOX 2.0 PERFORMANCE

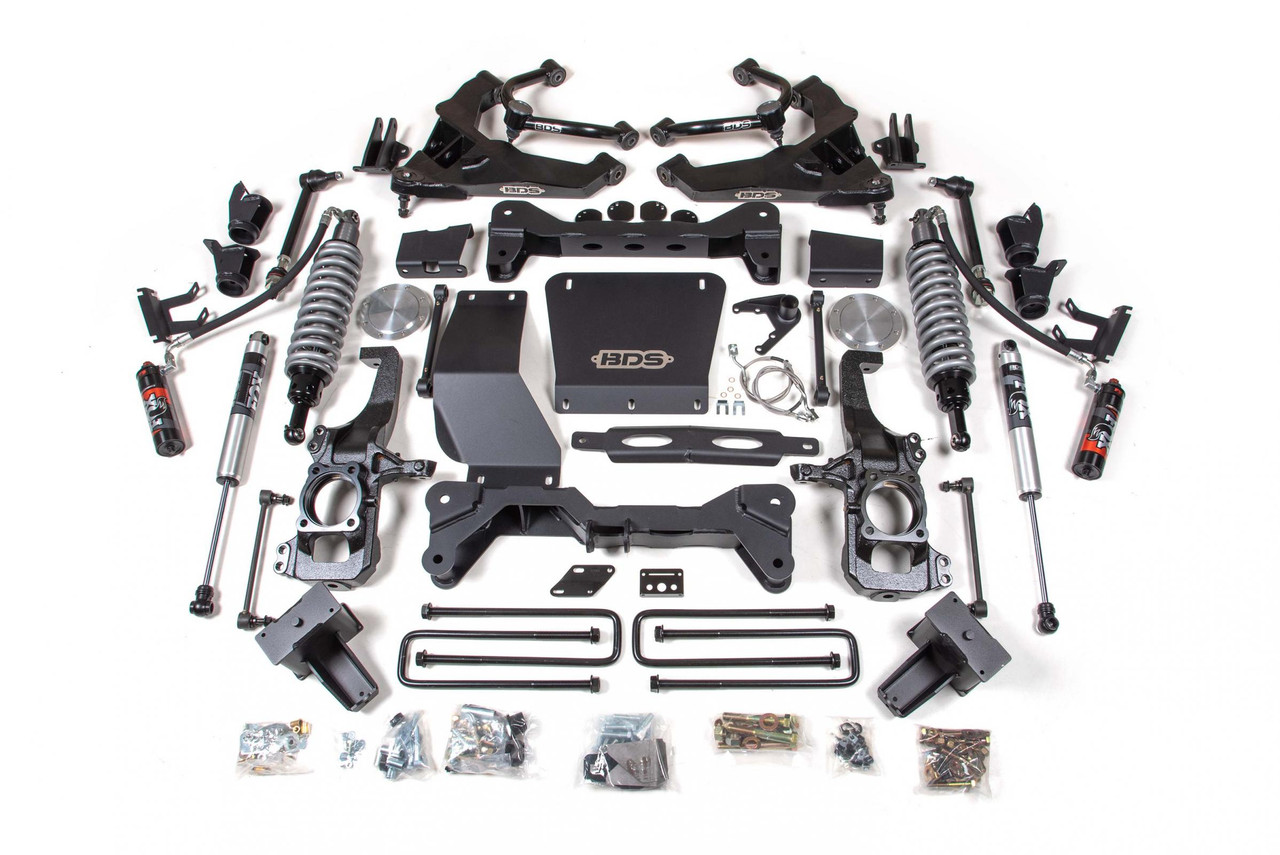

BDS is a game changer in performance of your 2020-2024 Chevy Silverado and GMC Sierra 2500 HD truck with a 6.5-inch suspension lift kit with FOX 2.5 Coil-Over conversion. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 38 Inch Tires.

These kits feature proprietary FOX 2.5 coil-over shocks designed specifically to bolt-on performance for increased travel and the ability to soak up the roughest terrain along with smooth on-road comfort.

In addition to replacing the factory torsion bars, the upper and lower control arms are upgraded to improve strength, travel, and accommodate the new coilovers. The new upper control arms are fabricated from large 1.5 Inch OD x .120-wall tubing, fully TIG welded for the highest quality, strength and durability.

To compliment the uppers, the new lower control arms are built from high strength steel, fully boxed with internally gusseted.

This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics.

Up front, the kit utilizes FOX 2.5 coil-over shocks, heavy duty tubular upper control arms, fully boxed and gusseted lower control arms, high-arched 1/4-inch thick steel crossmembers, and a multipiece differential relocation brackets and heavy duty skid plates built for offroad protection. Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles.

These combined with the provided sway bar links, bump stop extensions, stainless steel brake lines, CV spacers, supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it.

In the rear BDS offers replacement lift blocks to lift and level that stance. The lift block installs in place of the stock block and retains ride quality and load capacity. Also for the rear is a u-bolt flip kit for max clearance and precision tuned FOX 2.0 Performance Series shocks for ultimate off road performance.

FOX Performance Elite

FOX 2.5 Performance Elite shocks offer next level performance for on-road comfort and off-road comfort capability. Tuned and ready to install right out of the box, these bolt-on 2.5-inch diameter shocks are built for abuse and packed with race-proven technology. They include a remote reservoir for additional fluid capacity to keep your shocks running cool so you can push the limits in the rough terrain.

The Dual Speed Compression Adjust adjuster adds remarkable versatility and precise tuning with a simple twist of either two adjuster knobs, offering 10 separate low-speed and 12 high-speed compression levels, with a black anodized aluminum reservoir to increase cooling efficiency.

HD Control Arms

Built for strength, performance and increased travel, these control arms are ready to bolt-in. The upper arms use 1.5 Inch OD x .120-wall tubular construction with an indexed ball joint cup to correct the ball joint positioning allowing additional down travel and camber adjustment.

The new lower control arms are built from high strength steel, fully boxed with internally gusseted. At the frame mounting ends are durometer-specific rubber bushings for maintenance-free operation while at the other end a quality greaseable ball joints for smooth, quiet operation and superior durability.

Arms are finished in a durable black powder coat with a billet aluminum dust cap ready for installation right out of the box.

• Front Lift Method: Coil-Over
• Rear Lift Method: Block
• Shocks Included: Yes
• Front Lift Height: 6.5 Inch
• Rear Lift Height: 5 Inch

1. Models with two-piece rear drive shafts will require a carrier bearing drop kit. (BDS121612)
2. Requires frame bracket modification.
3. Disassembly/assembly of the factory torsion bar system requires the use of a special unloading tool. The GM specified tool # is CH48809.
4. Compatible with diesel models ONLY. Works with standard or AT4 diesel models.
5. Some minor trim will be required with certain wheel/Tire combination. This is normal with most aftermarket Tire/wheel fitment on Chevy/GM trucks. Trimming will normally include the bottom edge of the inner fender shrouds and/or lower corner of front bumper valance. As a rule of thumb, deeper backspacing and shorter/narrower Tires will reduce/eliminate trimming required. Further trimming tips are included at the end of this instruction sheet.
6. Factory 17-18 Inch wheels cannot be reinstalled due to tie rod end interference, stock 20 Inch wheels can be reinstalled with up to a 37x12.50 Tire.
7. In some cases vehicles used in 4WD on the highway regularly could potentially experience a minor front driveline vibration. If this occurs we recommend replacing the front driveshaft with a dual Cardan style driveshaft.
8. Coilover coil has a large amount of preload, a coil spring compressor must be used to remove the coil from the coilover. Failure to use a coil spring compressor may result in death or injury.
9. Do not increase coilover preload.
10. For DRW models, use the w/ overload rear lift option.
11. Will NOT work with AT4X or ZR2 models, lower control arm profile is different

• FOX 2.5 coil-overs offer improved damper performance over stock
• Dual Speed Compression Adjust Adjuster allows easy high-speed and low-speed compression tuning for optimal performance in any terrain
• Performance UCAs increase strength and allow for more suspension travel
• High Clearance design w/ no torsion bar drop maximizes ground clearance
• Robust steering knuckles maintain ESC system compliance
• HD skid plate system improved offroad protection
• Multipoint differential relocation brackets to secure the front axle and improve CV angles
• Factory Protection Plus drivetrain warranty included

Kit Components:

• Includes one BDS011516, 2020-2024 Chevrolet Silverado/GMC Sierra 2500/3500 HD 6.5 Inch Rear Box Kit w/o Overloads, UPC Code 658848611911
• Includes one BDS021303, 2020-2024 GM HD LCA Kit - Drv, UPC Code 711745611894
• Includes one BDS021304, 2020-2024 GM HD LCA Kit - Pass, UPC Code 711745611900
• Includes one BDS021690, 2020-2024 Chevrolet Silverado/GMC Sierra 2500/3500 HD 5 Inch-6.5 Inch Knuckle Box Kit - Drv, UPC Code 658848615179
• Includes one BDS021691, 2020-2024 Chevrolet Silverado/GMC Sierra 2500/3500 HD 5 Inch-6.5 Inch Knuckle Box Kit - Pass, UPC Code 658848615186
• Includes one BDS021692, 2020-2024 Chevrolet Silverado/GMC Sierra 2500/3500 HD 5 Inch-6.5 Inch Front Box Kit 1of2, UPC Code 658848615193
• Includes one BDS021693, 2020-2024 Chevrolet Silverado/GMC Sierra 2500/3500 HD 5 Inch-6.5 Inch Front Box Kit 2of2, UPC Code 658848615209
• Includes one BDS121301, 2020-2024 GM HD Coil Over Conversion UCA Kit, UPC Code 711745612051
• Includes one BDS121661, 2020-2024 Chevrolet Silverado/GMC Sierra 2500/3500 HD 5 Inch-6.5 Inch Skid Plate Box Kit, UPC Code 658848619276
• Includes one BDS121663, 2020-2024 GM HD Coil Over Conversion Kit - 6.5 Inch, UPC Code 711745612099
• Includes one FOX88406339, Kit: 20+ GM 2500/3500 HD Front Coilover, 2.5 Series, R/R 6.5 Inch Lift, Dual Speed Compression Adjust
• Includes two FOX98224767, Fox 2.0 Shock 31.02 x 18.95 x 2- EB1/EB1

The BDS SUSPENSION BDS753FPE 6.5 Inch Lift Kit is an essential enhancement for 2020-2024 Chevy Silverado and GMC Sierra 2500HD/3500HD diesel owners, designed to take your truck’s performance to exhilarating new heights. This comprehensive lift kit features a 6.5-inch suspension lift that not only elevates your vehicle but also accommodates up to 38-inch tires, ensuring you make a commanding statement on and off the road.

Precision-engineered, the kit includes proprietary FOX 2.5 coil-over shocks that offer a perfect blend of increased suspension travel and superior ride comfort. Whether tackling rugged terrains or cruising on highways, these shocks are designed to deliver exceptional dampening performance and control. The heavy-duty upper and lower control arms enhance strength and performance, incorporating a unique high-clearance design that offsets any suspension geometry issues, ensuring smooth handling.

Installation is straightforward, as the components are designed for a bolt-on fit. The upper control arms are constructed from robust 1.5-inch tubing and are fully TIG-welded for added durability. Meanwhile, the lower arms are fully boxed with internal gussets, providing advanced structural integrity.

Equipped with premium features like a multipoint differential relocation bracket and heavy-duty skid plates, this lift kit protects vital components while maintaining your truck's factory-like maneuverability. The rear lift blocks retain ride quality and load capacity, ingeniously providing a balanced stance.

Experience superior off-road capabilities with FOX Performance Elite shocks, featuring dual-speed compression adjusters for tailored performance. Each element of the BDS753FPE Lift Kit is meticulously crafted to elevate your driving experience, blending rugged performance with reliable durability. Transform your truck into a force to be reckoned with while enjoying the smooth ride it has to offer.
