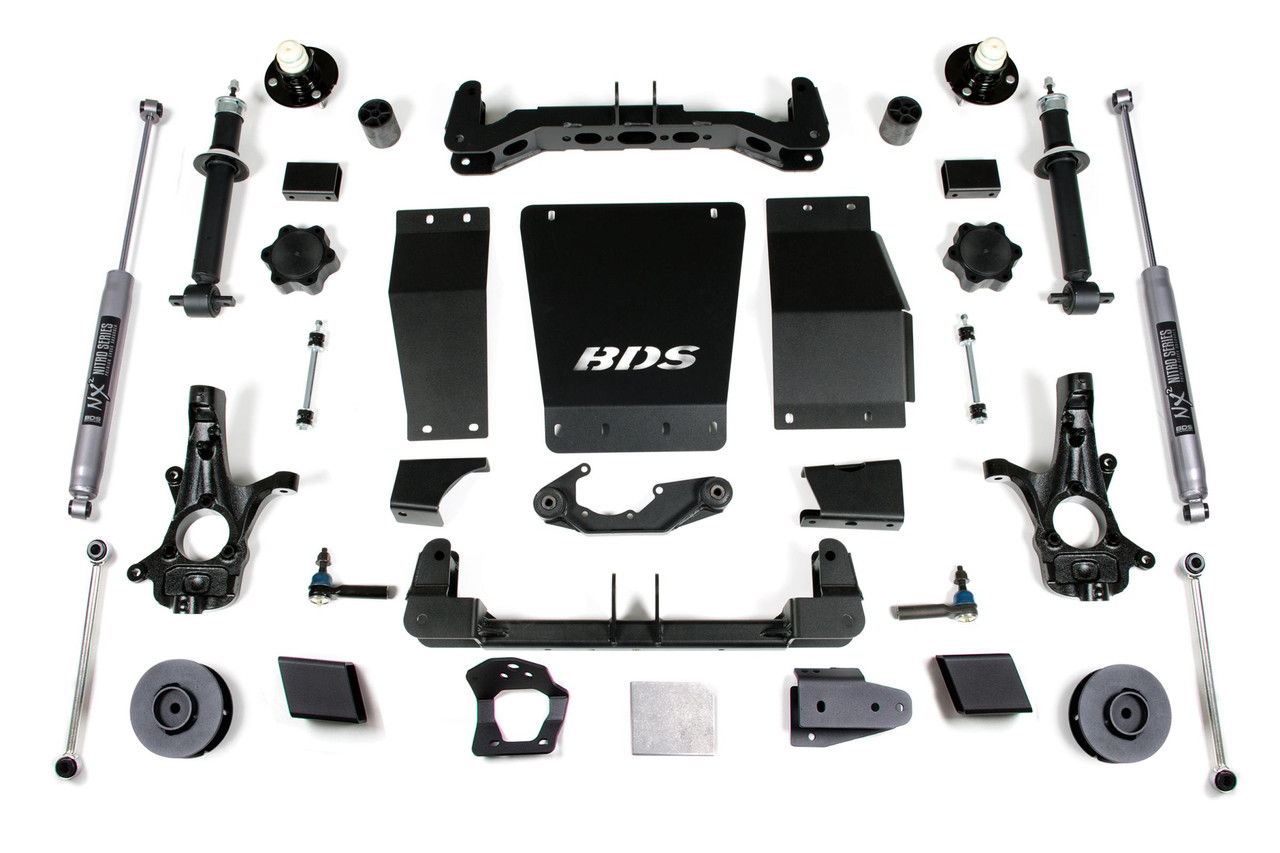

BDS SUSPENSION BDS733FS 4 INCH LIFT KIT CHEVY/GMC SUBURBAN TAHOE YUKON/XL 1500 15-19 4WD CAST STEEL FOX 2.0 PERFORMANCE SHOCKS

Take your 2015-2019 Chevy Suburban, or Tahoe and GMC Yukon 1500 to new heights with a BDS 4-inch lift kit. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 33 inch Tires

This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics.

Up front, the kit utilizes full length replacement strut shocks, high-arched 1/4-inch thick steel crossmembers along with a multipiece differential relocation brackets and heavy duty skid plates built for offroad protection.

Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles. These combined with the provided sway bar drops, bump stop extensions, brake line brackets, CV spacers, supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it.

In the rear BDS offers coil spring spacers to properly level the vehicle. Also for the rear are precision tuned NX2 Nitro or premium FOX 2.0 Performance Series shocks.

High Clearance Crossmembers

BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.

Heavy Duty Steering Knuckles

BDS corrects steering geometry at the new taller ride height using a pair of high-strength, CNC machined ductile cast iron steering knuckle design to work with factory tie rod ends to maintain steering angles for proper function and ESC compatibility.

• Front Lift Method: Cross-Member
• Rear Lift Method: Coil Springs
• Shocks Included: Yes
• Front Lift Height: 4 inch
• Rear Lift Height: 3 inch

Important: GM is producing several knuckle/control arm configurations in 2015-2016 model trucks. Cast Steel control arm equipped models will require the Cast Steel Control Arm kit.

Stamped Steel and Aluminum control arm equipped models will require the inchAluminum Control Arm inch kit. Be sure to verify which factory control arms your truck has before ordering by referencing our help images when customizing your kit.

1. Frame bracket modification and welding are required.
2. 20 inch wheels with 5 inch to 5-3/4 inch backspacing are recommended to reduce trimming.
3. AWD models may require front driveline modification
4. Factory 17 inch and 18 inch wheels cannot be reinstalled due to tie rod interference.
5. Will not work with Auto-ride or Magna-ride suspension.

• High clearance crossmember design maximizes ground clearance
• Robust steering knuckles maintain ESC system compliance
• High-strength replacement upper control arms provide durability and serviceability
• HD skid plate system improved offroad protection
• Multipoint differential relocation brackets to secure the front axle and improve CV angles
• Factory Protection Plus drivetrain warranty included

Factory Control Arm Type Cast Steel

Tire Size: 33 x 12.5 Tire Size 2: 33 x 12.5 Wheel Diameter: 18 x 9 Wheel Diameter 2: 20 x 9 Back Spacing: 5/5.75

Rear Shock Option

FOX 2.0 Performance Series

• 2-inch Impact extruded aluminum body
• Internal floating piston (Internal Floating Piston) monotube design
• CNC machined 6061-T6 aluminum mounting ends
• Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• Long-lasting clear anodized finish

Kit Components:

• Includes one BDS021307, 2015+ GM SUV Rear 3in Box Kit, UPC Code 658848614554
• Includes one BDS021462, 2014 Chevy 1500 4 inch Frt Box Kit (1of2), UPC Code 658848614707
• Includes one BDS021660, 14-18 GM 1500 - 15-19 GM SUV Knuckle Box - Cast, UPC Code 658848615018
• Includes one BDS021663, 14-18 GM 1500 15-19 GM SUV 6 inch Frt Box Kit (2of2), UPC Code 658848615049
• Includes one BDS98144, 2014 Chevy 1500 4 inch Strut Kit, UPC Code 711745610316
• Includes two FOX98224719, Fox 2.0 Shock 26.85 x 16.75 x 2- EB1/EB1

Elevate your driving experience with the BDS Suspension BDS733FS 4 Inch Lift Kit, designed specifically for 2015-2019 Chevy Suburban, Tahoe, and GMC Yukon 1500 models equipped with 4WD. This premium lift kit transforms your vehicle by improving stance, performance, and overall capability, allowing the fitment of aggressive 33-inch tires.

Engineered with BDS's high-clearance design, the lift kit enhances ground clearance and off-road protection while correcting suspension and steering geometry. This careful attention to detail ensures excellent handling characteristics on both rugged terrains and smooth roads. The front of the kit features full-length replacement strut shocks, heavy-duty 1/4-inch thick steel crossmembers, multipiece differential relocation brackets, and robust skid plates for uncompromised off-road performance.

To maintain optimal steering geometry at the lifted height, the kit incorporates CNC-machined ductile iron steering knuckles, along with sway bar drops, bump stop extensions, and brake line brackets. The result is a comprehensive upfront upgrade that is ready to handle the challenges of off-roading with precision.

In the rear, enjoy a perfectly leveled setup with coil spring spacers and your choice between precisely tuned NX2 Nitro shocks or premium FOX 2.0 Performance shocks, providing the smooth ride quality you expect from a top-tier suspension system.

The BDS733FS kit also boasts high clearance crossmembers for unparalleled ground clearance, heavy-duty steering knuckles to maintain ESC compatibility, and a high-definition skid plate system for added protection. Coupled with multipoint differential relocation brackets, this kit enhances the front axle's stability while improving CV angles.

Designed for durability and ease of service, this lift kit promises to transform your ride into a true off-road powerhouse while maintaining the comfort and control of a factory suspension. Ready to tackle any terrain, it’s the ultimate upgrade for your Chevy or GMC SUV.
