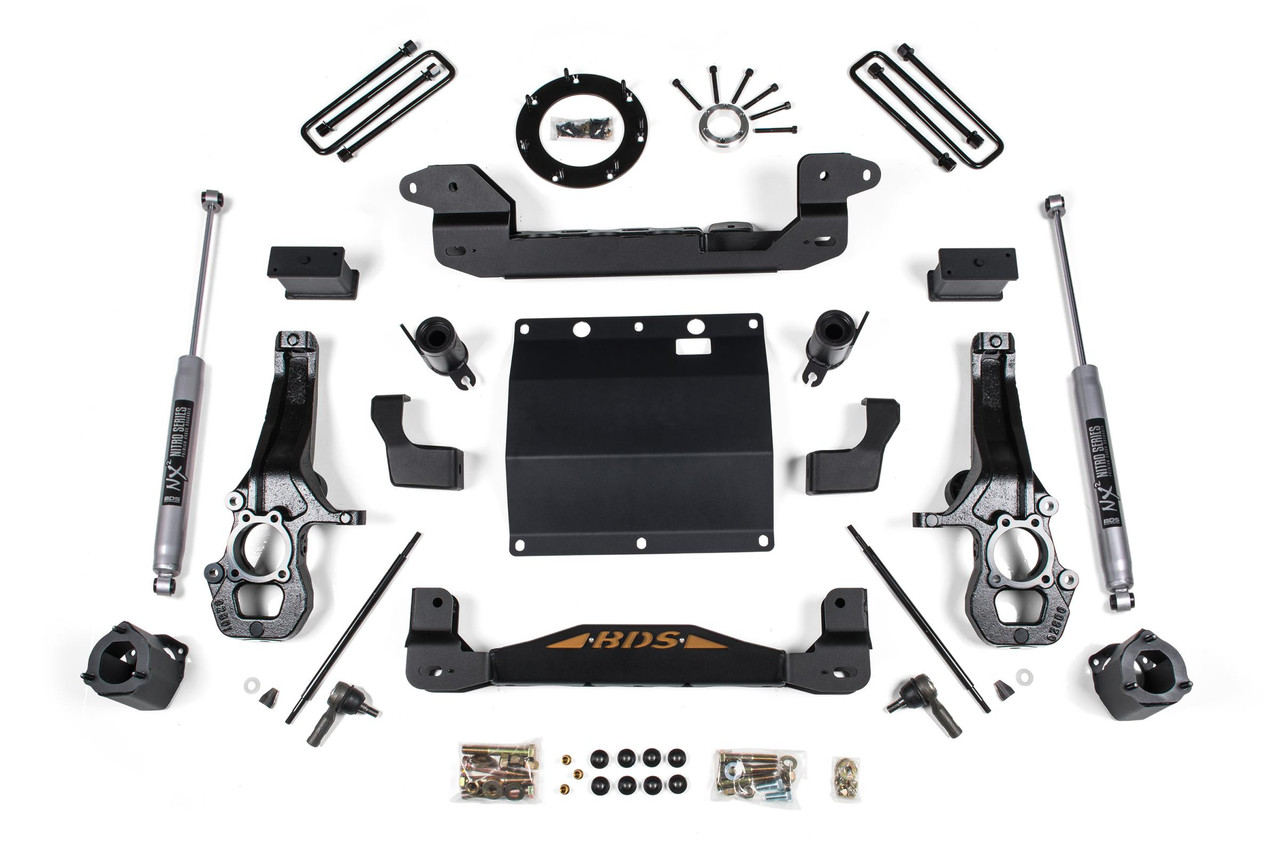

BDS SUSPENSION BDS722FS 5.5 INCH LIFT KIT CHEVY COLORADO OR GMC CANYON 15-22 4WD FOX 2.0 PERFORMANCE

Take your Chevy Colorado and GMC Canyon 4WD truck to the next level with a 5.5-inch suspension lift kit by BDS. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 33 inch Tires.

This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics.

Up front, the kit utilizes top mounted strut spacers, high-arched 1/4-inch thick steel crossmembers along with a multipiece differential relocation brackets and heavy duty skid plates built for offroad protection. Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles and replacement tie rod ends allowing for ESC system compatibility.

These combined with the provided sway bar links, bump stop extensions, CV spacers, supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it.

In the rear BDS offers a heavy duty fabricated lift block to lift and level that stance. The lift block installs in place of the stock block and retains ride quality and load capacity. Also for the rear are new u-bolts and precision tuned NX2 Nitro or premium FOX 2.0 Performance Series shocks.

High Clearance Crossmembers

BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.

Heavy Duty Steering Knuckles

BDS corrects steering geometry at the new taller ride height using a pair of high-strength, CNC machined ductile cast iron steering knuckle design to work with replacement tie rod ends to maintain steering angles for proper function and ESC compatibility.

• Front Lift Method: Cross-Member
• Rear Lift Method: Block
• Shocks Included: Yes
• Front Lift Height: 5.5 inch
• Rear Lift Height: 4 inch

1. Inner fender trimming is required.
2. Minor welding is required.
3. The electronically assisted power steering system is sensitive to out-of-round, unbalanced, and more aggressive tread pattern Tires. High speed steering wheel feedback can occur.
4. The actual ride height on Coil Over kits is closer to 6 inch of lift.
5. Stock 17 inch & 18 inch wheels can not be reinstalled with the lift kit. Aftermarket 20 inch wheels with a maximum of 5.25 inch Backspacing are recommended - certain wheel and Tire combinations will require weld on steering stops, these are included in the kit. See end of inst. sheet for details on installation.
6. Will not fit ZR2 Models.
7. Will fit diesel models.

• High clearance crossmember design maximizes ground clearance
• Robust steering knuckles maintain ESC system compliance
• High-strength replacement upper control arms provide durability and serviceability
• HD skid plate system improved offroad protection
• Multipoint differential relocation brackets to secure the front axle and improve CV angles
• Factory Protection Plus drivetrain warranty included

Rear Shock Option

FOX 2.0 Performance Series

• 2-inch Impact extruded aluminum body
• Internal floating piston (Internal Floating Piston) monotube design
• CNC machined 6061-T6 aluminum mounting ends
• Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• Long-lasting clear anodized finish

Tire Size: 305 / 70 Tire Size 2: 305 / 55 Wheel Diameter: 17 x 9 Wheel Diameter 2: 20 x 9 Back Spacing: 4.5/5.25

Kit Components:

• Includes one BDS011406, 2015-2022 Colorado 4 inch Rear Block Box Kit, UPC Code 658848611799
• Includes one BDS021670, 2015-2022 Colorado Front Box Kit 1of4, UPC Code 658848615070
• Includes one BDS021671, 2015-2022 Colorado Front Box Kit 2of4, UPC Code 658848615087
• Includes one BDS021672, 2015-2022 Colorado Front Box Kit 3of4, UPC Code 658848615094
• Includes one BDS021673, 2015-2022 Colorado Front Box Kit 4of4, UPC Code 658848615100
• Includes one BDS021674, 2015-2022 Colorado 5.5 inch Strut Spacer Box Kit, UPC Code 658848615117
• Includes two FOX98224758, Fox 2.0 Shock 27.95 x 17.35 x 2- EB1/EB1, UPC Code 692878899062

Elevate your driving experience with the BDS Suspension BDS722FS 5.5 Inch Lift Kit designed specifically for the 2015-2022 Chevy Colorado and GMC Canyon 4WD trucks. This exceptional lift kit transforms your vehicle, offering an impressive 5.5-inch front lift and a 4-inch rear lift, enabling compatibility with tires up to 33 inches. Engineered for both on and off-road performance, this kit is a robust solution for those looking to enhance their truck's capabilities.

BDS’s high-clearance design allows for improved ground clearance and superior durability, while also correcting steering and suspension geometry for optimal handling. The front of the kit incorporates top-mounted strut spacers, laser-cut steel crossmembers, and multipiece differential relocation brackets, paired with heavy-duty skid plates to provide tremendous off-road protection. Precision-CNC machined ductile iron steering knuckles and replacement tie rod ends ensure seamless compatibility with the electronic stability control system.

In the rear, a heavy-duty fabricated lift block replaces the stock component, ensuring a leveled stance without sacrificing ride quality. The included precision-tuned FOX 2.0 Performance shocks guarantee exceptional ride performance, whether navigating rugged trails or cruising city streets.

Highlights of the BDS722FS lift kit include a high-clearance crossmember design, robust steering knuckles for maintaining ESC compliance, and an HD skid plate system for enhanced off-road resilience. Comprehensive instructions are provided, noting that minor modifications such as inner fender trimming and welding may be required during installation.

Take command of the road and tackle any terrain with confidence. The BDS Suspension BDS722FS Lift Kit is not just an upgrade; it’s a complete transformation for your Chevy Colorado or GMC Canyon, delivering the performance and protection you demand.
