BDS SUSPENSION BDS696H 4 INCH LIFT KIT RAM 3500 13-18 4WD DIESEL 3 INCH BLOCK NX2 NITRO
- SKU:
- BDS696H
- MPN:
- BDS696H
- Shipping:
- Calculated at Checkout
Description
Improve the ride and style of your 2013-2018 RAM 3500 diesel powered truck with this 4-inch lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35 inch Tires.
Up front the lift kit includes diesel-specific Pro-Ride coil springs, radius arms drop brackets, forged drop pitman arm and track bar bracket for steering correction, bump stops, brake line brackets and precision tuned NX2 or FOX 2.0 nitrogen charged shocks.
In the rear this kit utilizes a high-strength fabricated lift block, longer u-bolts and a matching set of NX2 Nitro or FOX 2.0 Performance shocks.
Pro-Ride Coil Springs
A pair of full-length, diesel-specific, progressive rate Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.
Steering Correction
To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.
- Front Lift Method: Coil Spring
- Rear Lift Method: Block
- Shocks Included: Yes
- Front Lift Height: 4 inch
- Rear Lift Height: 2 inch
- The carrier bearing drop kit is necessary for models equipped with two piece rear drive shaft.
- Heavy duty radius arm drop brackets maintain proper suspension geometry
- Front high strength progressive rate coil springs for a great ride on any terrain
- Front track bar relocation bracket to re-position axle
- Forged drop pitman arm to correct steering angles
- Front sway bar correction to maintain handling performance
- BDS NX2 gas or FOX performance series Internal Floating Piston gas shocks to improved ride and offroad performance
Rear Lift Option
- 3 Inch Block Kit - Slightly tail-high rear stance.
Tire Size: 35 x 12.5 Tire Size 2: 35 x 12.5 Wheel Diameter: 18 x 9 Wheel Diameter 2: 20 x 9 Back Spacing: 4.5/4.5
Shock Option NX2 Nitro Series
- Nitrogen-charged
- Twin-tube design
- 10-stage velocity-sensitive valving
- Dual-welded ends for increased strength
- 1-3/8-inch high-flow piston
- Self-lubricating seals
- Silver powder coat finish

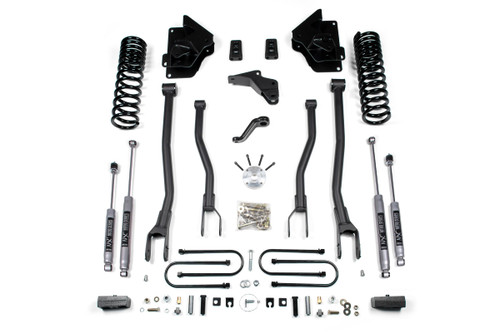

Kit Components:
- Includes one BDS012317, 2013 Ram 3500 3 inch Rear Box w/4 inch axle, UPC Code 711745611450
- Includes one BDS012401, 2013-18 Ram 2500/300 4 inch Front Box Kit, UPC Code 658848612321
- Includes one BDS032401, 2013-2018 Ram 3500 / 2014-2018 2500 Ram - Front Coils 4 inch Diesel - 5.5 inch Gas, UPC Code 658848616367
- Includes two BDS85752, Shock- 27.40 x 16.20 x 2-3/8 - S50/EB2, UPC Code 711745609624
- Includes two BDS85759, Shock- 29.80 x 17.60 x 2-3/8 - EB1/EB1, UPC Code 711745609686
The front of the lift kit features diesel-specific Pro-Ride coil springs designed to provide optimal lift height and a smooth ride across diverse terrains. The inclusion of heavy-duty radius arm drop brackets ensures proper suspension geometry, while a forged drop pitman arm and track bar bracket correct steering angles, improving handling and driving experience.
In the rear, this kit includes a high-strength fabricated lift block combined with longer u-bolts, working in tandem with NX2 Nitro or FOX 2.0 shocks to enhance overall ride comfort. The rear lift method adds a balanced stance to your vehicle, slightly elevating the rear for a robust look.
Key components of the kit include custom bump stops, brake line brackets, and sway bar corrections to maintain superior handling performance. The nitrogen-charged NX2 performance shocks feature a twin-tube design with 10-stage velocity-sensitive valving, ensuring durability and efficiency under varying driving conditions.
This lift kit is a perfect choice for those seeking to improve their RAM 3500's capabilities both on and off the road. Built for adventure and designed for performance, the BDS SUSPENSION BDS696H 4 INCH LIFT KIT is the ultimate upgrade for your truck enthusiast arsenal. With easy installation and all necessary components, your truck will be ready to tackle any challenge while turning heads wherever you go. Transform your driving experience today!
