BDS SUSPENSION BDS691FS 3 INCH LIFT KIT DODGE RAM 2500 03-13 & 3500 03-12 4WD DIESEL 3.5 INCH AXLE FOX 2.0 PERFORMANCE SHOCKS

Take your 2003-2013 Dodge RAM 2500 and 2003-2012 RAM 3500 4WD diesel powered truck to the next level with this 3-inch lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35 inch Tires. The BDS 3-inch lift kit features fixed length, greaseable, heavy-duty round tubular construction upper and lower control arms that position the axle properly and adjust for proper caster and pinion angles.

Up front the lift kit includes diesel-specific Pro-Ride coil springs, heavy duty adjustable track bar, fixed length tubular upper and lower control arms, fixed length sway bar links with stud eliminator, and precision tuned NX2 or FOX 2.0 nitrogen charged shocks. In the rear this kit utilizes heavy duty cast steel blocks, longer u-bolts, and a matching set of NX2 Nitro or FOX 2.0 Performance shocks.

Pro-Ride Coil Springs

A pair of full-length, diesel-specific, progressive rate Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains. Manufactured from high tensile steel, our direct OE replacement coil springs are engineered with properly sized wire diameter. This results in maximum reliability without premature coil bind.

HD Adjustable Track Bar

Maintain proper handling and steering geometry with the BDS high strength adjustable track bar that allows you to recenter the front axle at a variety of lift heights. Built from 1-3/8 inch solid steel stock, the track bar comes pre-assembled with bushings and is ready to bolt into the factory mounting points.

• Front Lift Method: Coil Spring
• Rear Lift Method: Block
• Shocks Included: Yes
• Front Lift Height: 3 inch
• Rear Lift Height: 2 inch

1. Measure rear axle tube before ordering.  Some 4 inch axle models have dual overloads that will require #4063 u-bolts.

2. Rear lift options will not fit dually applications.

3. Not recommended for Power Wagon models.

4. Will not fit commercial chassis (Cab and Chassis) models.

• Heavy duty tubular short arms improve strength, handling and caster control
• Front high strength progressive rate coil springs for a great ride on any terrain
• Front HD adjustable track bar to re-position axle
• Front sway bar correction to maintain handling performance
• BDS NX2 gas or FOX performance series Internal Floating Piston gas shocks to improve ride and offroad performance

Axle Diameter -3.5 Inch Axle

The Dodge Ram truck has 2 different rear axle diameters. Please measure your rear axle and select the appropriate rear kit for your vehicle.

FOX 2.0 Performance Series

• 2-inch Impact extruded aluminum body
• Internal floating piston (Internal Floating Piston) monotube design
• CNC machined 6061-T6 aluminum mounting ends
• Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• Long-lasting clear anodized finish

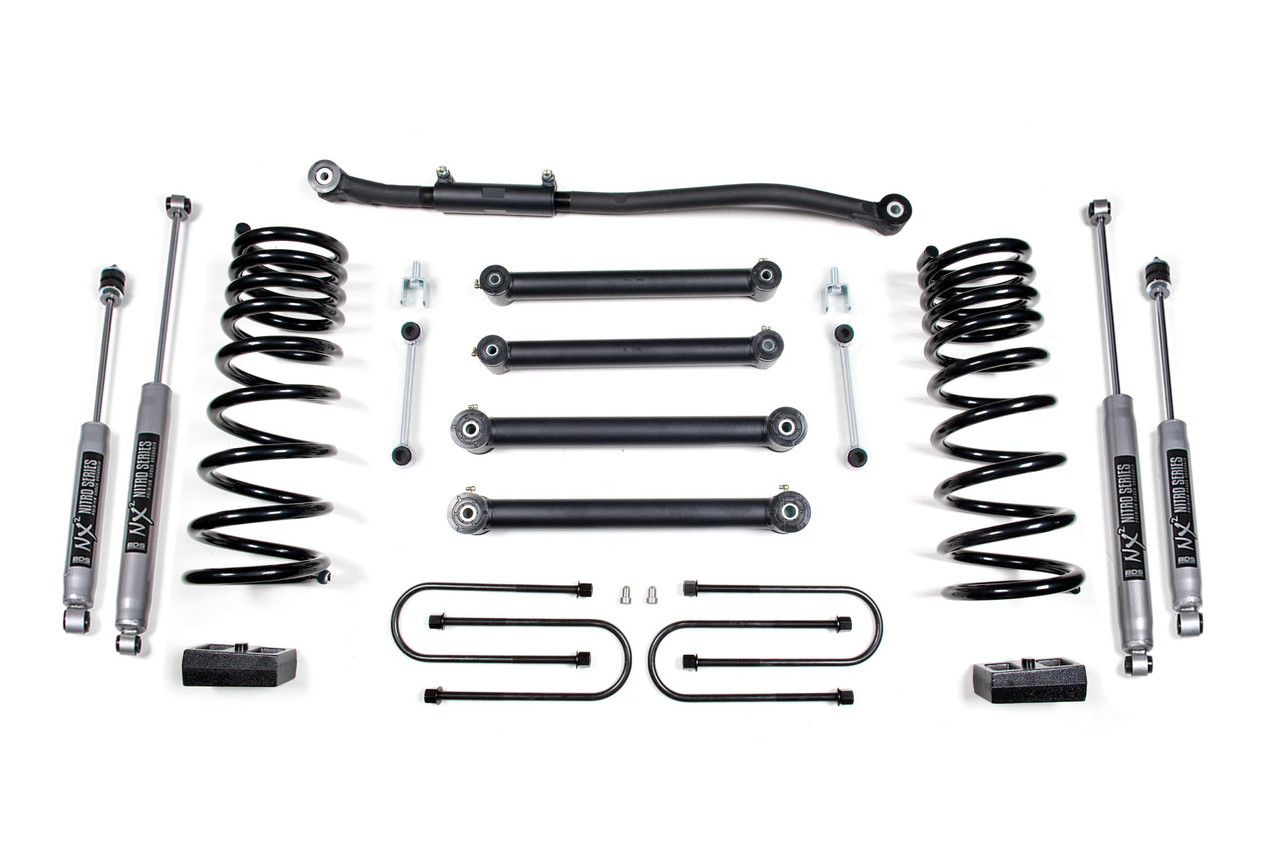

Kit Components:

• Includes one BDS012208, 03-06 Dodge 2500 2 Inch Rear Box w/3-1/2 ax, UPC Code 658848612109
• Includes one BDS012304, 03-13 Dodge 2500 3in Box Kit, UPC Code 658848612192
• Includes one BDS032301, Dodge 2500 3 inch Coil Spring (diesel), UPC Code 658848616336
• Includes two FOX98224700, Fox 2.0 Shock 25.65 x 16.05 x 2- S50/EB1
• Includes two FOX98224759, Fox 2.0 Shock 30.05 x 18.45 x 2- EB1/EB1

Elevate your Dodge RAM’s performance and aesthetics with the BDS Suspension BDS691FS 3-Inch Lift Kit, expertly engineered for 2003-2013 RAM 2500 and 2003-2012 RAM 3500 4WD diesel models. This comprehensive lift kit is designed to enhance your truck’s stance while providing the necessary clearance for aggressive 35-inch tires.

Built with durability in mind, this kit includes robust, greaseable round tubular upper and lower control arms that ensure the axle is accurately positioned for optimal caster and pinion angles. The front end of the suspension system features diesel-specific Pro-Ride coil springs that deliver a smooth and stable ride, regardless of the terrain. Complementing these springs are heavy-duty adjustable track bars and precision-tuned NX2 or FOX 2.0 nitrogen-charged shocks that improve ride quality and off-road performance.

In the rear, the BDS lift kit integrates heavy-duty cast steel blocks and longer u-bolts, ensuring a robust lift that perfectly balances your truck’s profile. The adjustable track bar maintains excellent handling and steering geometry, allowing for precise axle recentering at varying lift heights.

Every component of this lift kit is crafted to exact specifications, including front sway bar corrections to enhance handling performance. The FOX 2.0 Performance Series shocks come with a 2-inch impact extruded aluminum body and advanced internal floating piston design, ensuring long-lasting durability and exceptional response.

Prepare to conquer any landscape with a suspension system that promises both strength and stability. The BDS691FS 3-Inch Lift Kit not only transforms the appearance of your Dodge RAM but also elevates its overall capability, making it an essential upgrade for any serious truck enthusiast.
