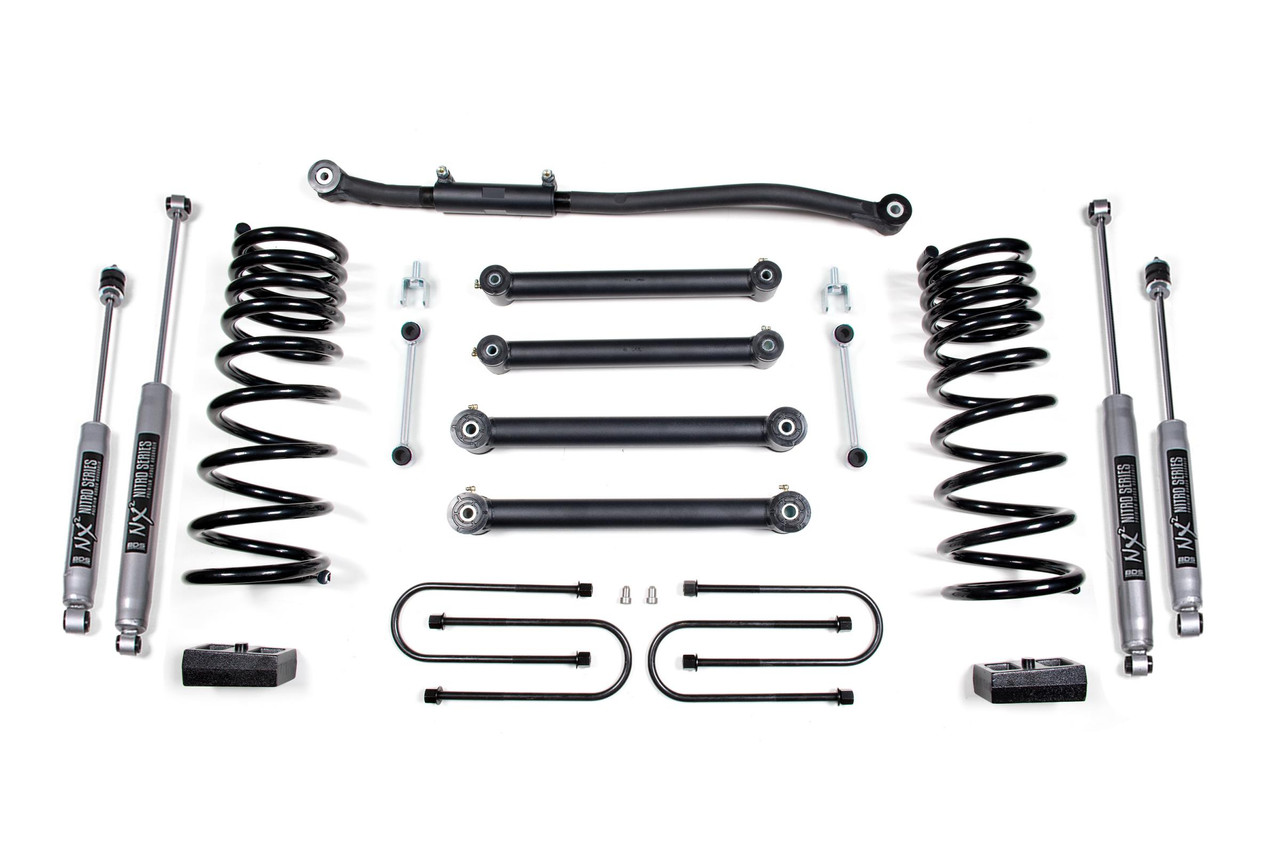

BDS SUSPENSION BDS690H 3 INCH LIFT KIT DODGE RAM 2500 03-13 & 3500 03-12 4WD DIESEL 4 INCH AXLE NX2 NITRO SHOCKS

Take your 2003-2013 Dodge RAM 2500 and 2003-2012 RAM 3500 4WD diesel powered truck to the next level with this 3-inch lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35 inch Tires. The BDS 3-inch lift kit features fixed length, greaseable, heavy-duty round tubular construction upper and lower control arms that position the axle properly and adjust for proper caster and pinion angles.

Up front the lift kit includes diesel-specific Pro-Ride coil springs, heavy duty adjustable track bar, fixed length tubular upper and lower control arms, fixed length sway bar links with stud eliminator, and precision tuned NX2 or FOX 2.0 nitrogen charged shocks. In the rear this kit utilizes heavy duty cast steel blocks, longer u-bolts, and a matching set of NX2 Nitro or FOX 2.0 Performance shocks.

Pro-Ride Coil Springs

A pair of full-length, diesel-specific, progressive rate Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains. Manufactured from high tensile steel, our direct OE replacement coil springs are engineered with properly sized wire diameter. This results in maximum reliability without premature coil bind.

HD Adjustable Track Bar

Maintain proper handling and steering geometry with the BDS high strength adjustable track bar that allows you to recenter the front axle at a variety of lift heights. Built from 1-3/8 inch solid steel stock, the track bar comes pre-assembled with bushings and is ready to bolt into the factory mounting points.

• Front Lift Method: Coil Spring
• Rear Lift Method: Block
• Shocks Included: Yes
• Front Lift Height: 3 inch
• Rear Lift Height: 2 inch

1. Measure rear axle tube before ordering.  Some 4 inch axle models have dual overloads that will require #4063 u-bolts.

2. Rear lift options will not fit dually applications.

3. Not recommended for Power Wagon models.

4. Will not fit commercial chassis (Cab and Chassis) models.

• Heavy duty tubular short arms improve strength, handling and caster control
• Front high strength progressive rate coil springs for a great ride on any terrain
• Front HD adjustable track bar to re-position axle
• Front sway bar correction to maintain handling performance
• BDS NX2 gas or FOX performance series Internal Floating Piston gas shocks to improve ride and offroad performance

Axle Diameter -4 Inch Axle

The Dodge Ram truck has 2 different rear axle diameters. Please measure your rear axle and select the appropriate rear kit for your vehicle.

Shock Option NX2 Nitro Series

• Nitrogen-charged
• Twin-tube design
• 10-stage velocity-sensitive valving
• Dual-welded ends for increased strength
• 1-3/8-inch high-flow piston
• Self-lubricating seals
• Silver powder coat finish

Kit Components:

• Includes one BDS012207, 03-13 Dodge 2500 2 Inch Rear Box w/4, UPC Code 658848612093
• Includes one BDS012304, 03-13 Dodge 2500 3in Box Kit, UPC Code 658848612192
• Includes one BDS032301, Dodge 2500 3 inch Coil Spring (diesel), UPC Code 658848616336
• Includes two BDS85700, Shock- 25.20 x 15.20 x 2-3/8 - S50/EB2, UPC Code 711745609495
• Includes two BDS85759, Shock- 29.80 x 17.60 x 2-3/8 - EB1/EB1, UPC Code 711745609686

Transform the performance and aesthetics of your 2003-2013 Dodge RAM 2500 or 2003-2012 RAM 3500 4WD diesel truck with the BDS Suspension 3-Inch Lift Kit. Engineered for those who demand superior capability and style, this lift kit elevates your truck while providing the necessary enhancements for optimal stance and functionality. With the ability to accommodate tires up to 35 inches, this kit takes your off-road adventures to exhilarating new heights.

The heart of this lift kit features rugged components, including diesel-specific Pro-Ride coil springs that offer a progressive rate for a smooth, predictable ride across diverse terrains. The heavy-duty adjustable track bar ensures proper handling and allows for axle recentering across various lift heights, thus maintaining superior steering geometry. Additionally, the fixed-length tubular upper and lower control arms preserve proper caster and pinion angles, guaranteeing an improved driving experience.

The rear kit employs robust cast steel blocks, complemented by longer u-bolts and a matching set of precision-tuned NX2 Nitro or FOX 2.0 Performance shocks. Each component is meticulously designed to enhance durability, providing reliable performance even in the toughest environments.

SHOCK technology is integral to this lift kit, featuring nitrogen-charged NX2 gas or FOX performance series shocks, equipped with advanced velocity-sensitive valving and high-flow pistons. These shocks deliver an unrivaled ride quality and off-road performance, ensuring your truck can handle whatever the trail throws your way.

Installation is straightforward with all necessary hardware included, making it easier than ever to elevate your truck’s capabilities. The BDS Suspension 3-Inch Lift Kit is the perfect blend of functionality and rugged style, designed to enhance every aspect of your Dodge RAM experience. Equip your truck for the future of off-roading with this premium suspension kit.
