BDS SUSPENSION BDS690FS 3 INCH LIFT KIT DODGE RAM 2500 03-13 & 3500 03-12 4WD DIESEL 4 INCH AXLE FOX 2.0 PERFORMANCE SHOCKS

Take your 2003-2013 Dodge RAM 2500 and 2003-2012 RAM 3500 4WD diesel powered truck to the next level with this 3-inch lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35 inch Tires. The BDS 3-inch lift kit features fixed length, greaseable, heavy-duty round tubular construction upper and lower control arms that position the axle properly and adjust for proper caster and pinion angles.

Up front the lift kit includes diesel-specific Pro-Ride coil springs, heavy duty adjustable track bar, fixed length tubular upper and lower control arms, fixed length sway bar links with stud eliminator, and precision tuned NX2 or FOX 2.0 nitrogen charged shocks. In the rear this kit utilizes heavy duty cast steel blocks, longer u-bolts, and a matching set of NX2 Nitro or FOX 2.0 Performance shocks.

Pro-Ride Coil Springs

A pair of full-length, diesel-specific, progressive rate Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains. Manufactured from high tensile steel, our direct OE replacement coil springs are engineered with properly sized wire diameter. This results in maximum reliability without premature coil bind.

HD Adjustable Track Bar

Maintain proper handling and steering geometry with the BDS high strength adjustable track bar that allows you to recenter the front axle at a variety of lift heights. Built from 1-3/8 inch solid steel stock, the track bar comes pre-assembled with bushings and is ready to bolt into the factory mounting points.

• Front Lift Method: Coil Spring
• Rear Lift Method: Block
• Shocks Included: Yes
• Front Lift Height: 3 inch
• Rear Lift Height: 2 inch

1. Measure rear axle tube before ordering.  Some 4 inch axle models have dual overloads that will require #4063 u-bolts.

2. Rear lift options will not fit dually applications.

3. Not recommended for Power Wagon models.

4. Will not fit commercial chassis (Cab and Chassis) models.

• Heavy duty tubular short arms improve strength, handling and caster control
• Front high strength progressive rate coil springs for a great ride on any terrain
• Front HD adjustable track bar to re-position axle
• Front sway bar correction to maintain handling performance
• BDS NX2 gas or FOX performance series Internal Floating Piston gas shocks to improve ride and offroad performance

Axle Diameter - 4 Inch Axle

The Dodge Ram truck has 2 different rear axle diameters. Please measure your rear axle and select the appropriate rear kit for your vehicle.

FOX 2.0 Performance Series

• 2-inch Impact extruded aluminum body
• Internal floating piston (Internal Floating Piston) monotube design
• CNC machined 6061-T6 aluminum mounting ends
• Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• Long-lasting clear anodized finish

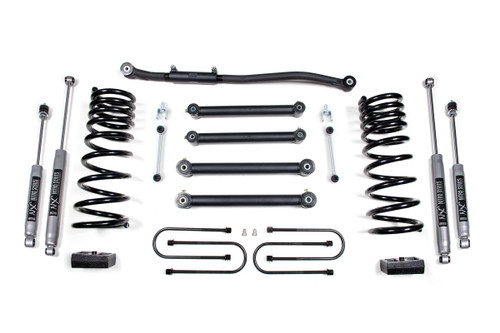

Kit Components:

• Includes one BDS012207, 03-13 Dodge 2500 2 Inch Rear Box w/4, UPC Code 658848612093
• Includes one BDS012304, 03-13 Dodge 2500 3in Box Kit, UPC Code 658848612192
• Includes one BDS032301, Dodge 2500 3 inch Coil Spring (diesel), UPC Code 658848616336
• Includes two FOX98224700, Fox 2.0 Shock 25.65 x 16.05 x 2- S50/EB1
• Includes two FOX98224759, Fox 2.0 Shock 30.05 x 18.45 x 2- EB1/EB1

Elevate your driving experience with the BDS Suspension BDS690FS 3 Inch Lift Kit, engineered specifically for the 2003-2013 Dodge RAM 2500 and 2003-2012 RAM 3500 4WD diesel trucks. This comprehensive lift kit not only enhances your truck's stance but also boosts its overall performance and capability, providing ample clearance for tires up to 35 inches.

At the heart of this kit are the heavy-duty upper and lower control arms crafted from greaseable, round tubular construction, ensuring durability and precision. The diesel-specific Pro-Ride coil springs deliver a smooth ride, allowing for progressive rates across various terrains. Front-end stability is further supported with an adjustable track bar that fine-tunes your steering geometry, ensuring optimal handling.

This expertly designed kit includes precision-tuned FOX 2.0 Performance shocks, enhancing ride quality and off-road performance. The durable construction features an internal floating piston design, providing remarkable responsiveness and reliability for every adventure.

The rear lift is secured with cast steel blocks and longer u-bolts, coupled with matching FOX 2.0 Performance shocks, creating a well-balanced setup that stands up to tough demands. The components work cohesively to retain proper caster and pinion angles, delivering a balanced driving experience.

Installation is straightforward, as each component is precision-engineered to fit factory mounting points, yielding a seamless upgrade to your truck. However, compatibility considerations should be reviewed, such as rear axle measurements for optimal fit.

Transform your Dodge RAM with the BDS690FS 3 Inch Lift Kit and enjoy enhanced capability, superior handling, and a bold new look every time you hit the road. Whether navigating rugged terrain or cruising city streets, this lift kit empowers your RAM to tackle any challenge with confidence.
