BDS SUSPENSION BDS679H 6 INCH LIFT KIT LONG ARM DODGE RAM 2500 09-13 4WD GAS LEAF SPRINGS 4 INCH AXLE NX2 NITRO

Built to outperform, BDS Suspension engineered a 6-inch lift kit with long arm conversion for your 2009-2013 Dodge RAM 2500 gas powered truck that maximizes performance on and off road.

Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37 inch Tires.

BDS built the long lower control arms to reduce caster change through wheel travel which creates a more controlled feeling in the steering wheel. This long arm long arm system retains the factory triangulation of the arms which adds to the stability of the suspension system.

Up front the lift kit includes gas-specific Pro-Ride coil springs, all four control arms plus mounting bracket, forged drop pitman arm and track bar bracket for steering correction, bump stops, sway bar links, and precision tuned NX2 or FOX 2.0 nitrogen charged shocks.

In the rear this kit utilizes heavy duty cast steel blocks, longer u-bolts, and a matching set of NX2 Nitro or FOX 2.0 Performance shocks.

Pro-Ride Coil Springs

A pair of full-length, gas-specific, progressive rate Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains. Manufactured from high tensile steel, our direct OE replacement coil springs are engineered with properly sized wire diameter. This results in maximum reliability without premature coil bind.

Steering Correction

To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.

• Front Lift Method: Coil Spring
• Rear Lift Method: Block
• Shocks Included: Yes
• Front Lift Height: 6 inch
• Rear Lift Height: 4 inch

1. Measure rear axle tube before ordering. Some 4 inch axle models with dual overloads will require u-bolt 4068.
2. Power Wagon applications require sway bar link kit #122401. The Power Wagon has a 2 inch taller ride height, so net lift gain will be 4 inch.
3. If driveline vibration occurs, order transfer case index kit #122801 or 122802.
4. 102009 Rear brake lines will not fit 2012-13 models.

• Tubular long arms reduce caster change and create more controlled feeling on and off road
• Heavy duty control arm brackets maintain proper suspension geometry
• Front high strength progressive rate coil springs for a great ride on any terrain
• Front track bar relocation bracket to re-position axle
• Forged drop pitman arm to correct steering angles
• Front sway bar correction to maintain handling performance
• BDS NX2 gas or FOX performance series Internal Floating Piston gas shocks to improved ride and offroad performance

Leaf Springs

• Eliminates any need for a lift block.
• Reduces axle wrap and creates a more controlled and stable feel.
• Multi-leaf progressive design for a smooth ride.
• Maintains factory payload weight ratings.

Axle Diameter 3.5 Inch Axle

The Dodge Ram truck has 2 different rear axle diameters. Please measure your rear axle and select the appropriate rear kit for your vehicle.

Shock Option NX2 Nitro Series

• Nitrogen-charged
• Twin-tube design
• 10-stage velocity-sensitive valving
• Dual-welded ends for increased strength
• 1-3/8-inch high-flow piston
• Self-lubricating seals
• Silver powder coat finish

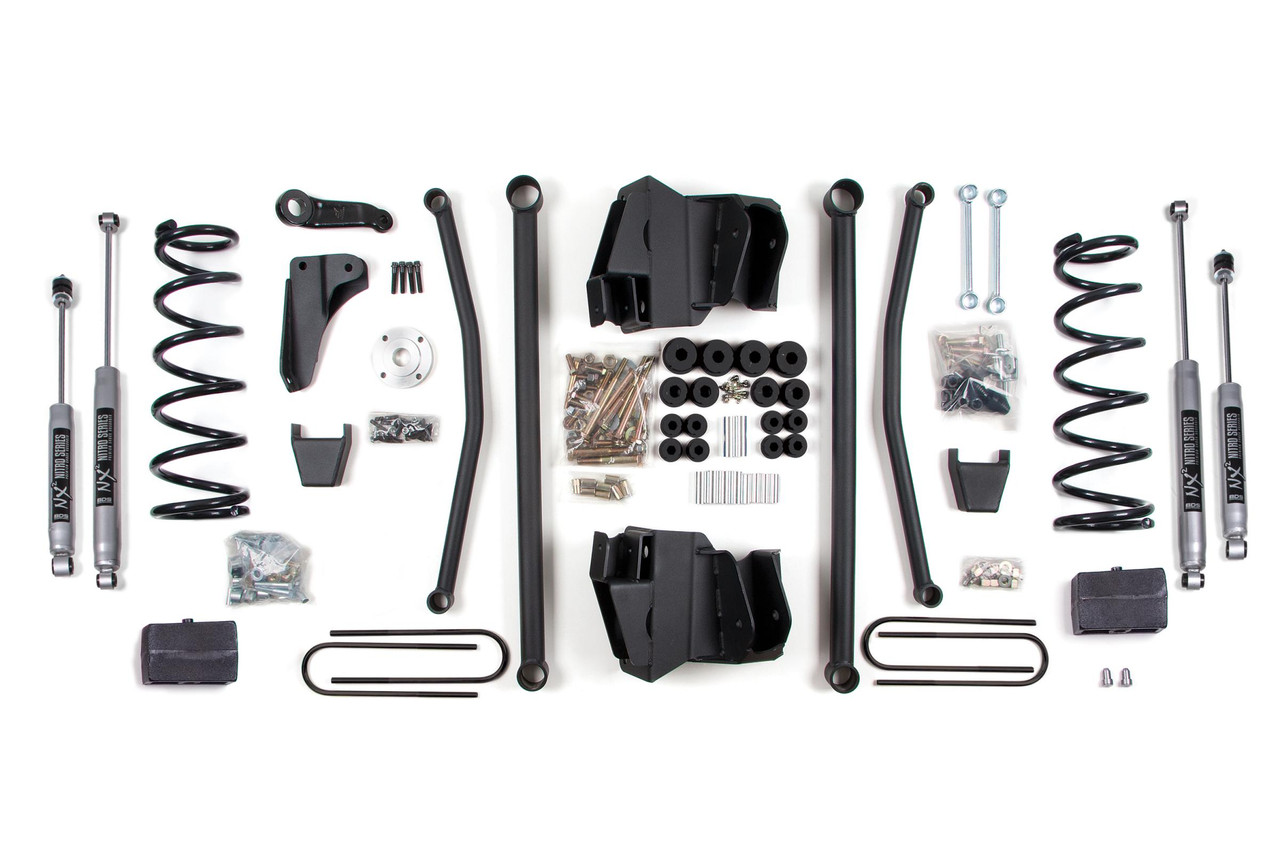

Kit Components:

• Includes two BDS002508, 03-05 Dodge 3/4 ton 5in Rear Spring, UPC Code 658848611294
• Includes one BDS012601, 09-10 Ram 6 Inch Long Arm Box Kit, UPC Code 658848612673
• Includes one BDS012801, Dodge Control Arm Mounts, UPC Code 658848612840
• Includes one BDS012802, Dodge Control Arm Box Kit, UPC Code 658848612857
• Includes one BDS032601, 03-12 Dodge Ram 2500(gas) 6 Inch Coil Kit, UPC Code 658848616411
• Includes two BDS85750, Shock- 27.40 x 16.20 x 2-3/8 - S50/EB2, UPC Code 711745609600
• Includes two BDS85761, Shock- 33.00 x 19.25 x 2-3/8 - EB1/EB1, UPC Code 711745609709
• Includes four UBT4067, 9/16 x 4 x 12-1/2 Round U-bolt, UPC Code 711745613003

Transform your 2009-2013 Dodge RAM 2500 into an off-road powerhouse with the BDS Suspension BDS679H 6-Inch Lift Kit with Long Arm Conversion. Expertly engineered, this kit is designed to enhance performance and improve stance, providing an impressive lift of 6 inches in the front and 4 inches in the rear, accommodating tire sizes up to 37 inches.

The heart of this lift kit lies in its long lower control arms, crafted to minimize caster change during wheel travel. This innovation leads to a more stable and controlled steering feel on various terrains. The kit maintains the factory triangulation of the arms, ensuring optimal suspension stability.

Included in the package are gas-specific Pro-Ride coil springs that deliver a smooth, predictable ride across diverse environments. Constructed from high tensile steel, these springs replace your factory coils, and their progressive rate design ensures reliability without premature coil bind.

To enhance steering geometry post-lift, the kit features a forged drop pitman arm paired with a heavy-duty track bar drop bracket. This critical component keeps the suspension in phase during travel while recentering the front axle, maximizing handling performance.

The rear lift utilizes heavy-duty cast steel blocks coupled with longer U-bolts and a matching set of highly rated NX2 Nitro or FOX 2.0 Performance shocks, ensuring a cushioned ride without sacrificing control.

With features like tubular long arms, precise shock valving, and comprehensive components, the BDS679H Lift Kit stands out as the ultimate upgrade for your Dodge RAM 2500, allowing you to conquer any trail with confidence and style. Equip your truck for adventure and enjoy unparalleled performance on and off the road.
