BDS SUSPENSION

BDS SUSPENSION BDS662FS 6 INCH LIFT KIT LONG ARM DODGE RAM 2500/3500 03-07 4WD GAS LEAF SPRINGS 4 INCH AXLE FOX 2.0 PERFORMANCE

(No reviews yet) Write a Review
SKU:
BDS662FS
MPN:
BDS662FS
Shipping:
Calculated at Checkout
  • BDS SUSPENSION BDS662FS 6 INCH LIFT KIT LONG ARM DODGE RAM 2500/3500 03-07 4WD GAS LEAF SPRINGS 4 INCH AXLE FOX 2.0 PERFORMANCE
  • BDS SUSPENSION BDS662FS 6 INCH LIFT KIT LONG ARM DODGE RAM 2500/3500 03-07 4WD GAS LEAF SPRINGS 4 INCH AXLE FOX 2.0 PERFORMANCE
$3,574.30

Description

Built to outperform, BDS Suspension engineered a 6-inch lift kit with long arm conversion for your 2003-2007 Dodge RAM 2500 and 3500 4WD gas powered truck that maximizes performance on and off road.

Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37 inch Tires. BDS built the long lower control arms to reduce caster change through wheel travel which creates a more controlled feeling in the steering wheel. This long arm long arm system retains the factory triangulation of the arms which adds to the stability of the suspension system.

Up front the lift kit includes gas-specific Pro-Ride coil springs, all four control arms plus mounting bracket, forged drop pitman arm and track bar bracket for steering correction, bump stops, sway bar links, and precision tuned NX2 or FOX 2.0 nitrogen charged shocks. In the rear this kit utilizes heavy duty cast steel blocks, longer u-bolts, and a matching set of NX2 Nitro or FOX 2.0 Performance shocks.

Pro-Ride Coil Springs

A pair of full-length, gas-specific, progressive rate Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains. Manufactured from high tensile steel, our direct OE replacement coil springs are engineered with properly sized wire diameter. This results in maximum reliability without premature coil bind.

Steering Correction

To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.

  • Front Lift Method: Coil Spring
  • Rear Lift Method: Block
  • Shocks Included: Yes
  • Front Lift Height: 6 inch
  • Rear Lift Height: 4 inch
  1. Measure rear axle tube before ordering. Some 4 inch axle models with dual overloads will require u-bolt 4068.
  2. Power Wagon applications require sway bar link kit 122401. The Power Wagon has a 2 inch taller ride height, so net lift gain will be 4 inch.
  3. If driveline vibration occurs, order transfer case index kit 122801 or 122802.
  4. If your Truck has had the steering gear box changed and the sector shaft diameter measures 1-1/2 inch-1-5/8 inch you will need to add part BDS082404 to your kit.
  • Tubular long arms reduce caster change and create more controlled feeling on and off road
  • Heavy duty control arm brackets maintain proper suspension geometry
  • Front high strength progressive rate coil springs for a great ride on any terrain
  • Front track bar relocation bracket to re-position axle
  • Forged drop pitman arm to correct steering angles
  • Front sway bar correction to maintain handling performance
  • BDS NX2 gas or FOX performance series Internal Floating Piston gas shocks to improved ride and offroad performance

Rear Lift Option

Leaf Springs

  • Eliminates any need for a lift block.
  • Reduces axle wrap and creates a more controlled and stable feel.
  • Multi-leaf progressive design for a smooth ride.
  • Maintains factory payload weight ratings.

Axle Diameter 4 Inch Rear Axle

The Dodge Ram truck has 2 different rear axle diameters. Please measure your rear axle and select the appropriate rear kit for your vehicle.

Shock Option

FOX 2.0 Performance Series

  • 2-inch Impact extruded aluminum body
  • Internal floating piston (Internal Floating Piston) monotube design
  • CNC machined 6061-T6 aluminum mounting ends
  • Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
  • Race-developed high-flow piston design
  • Application-specific valving to maximize performance
  • Long-lasting clear anodized finish

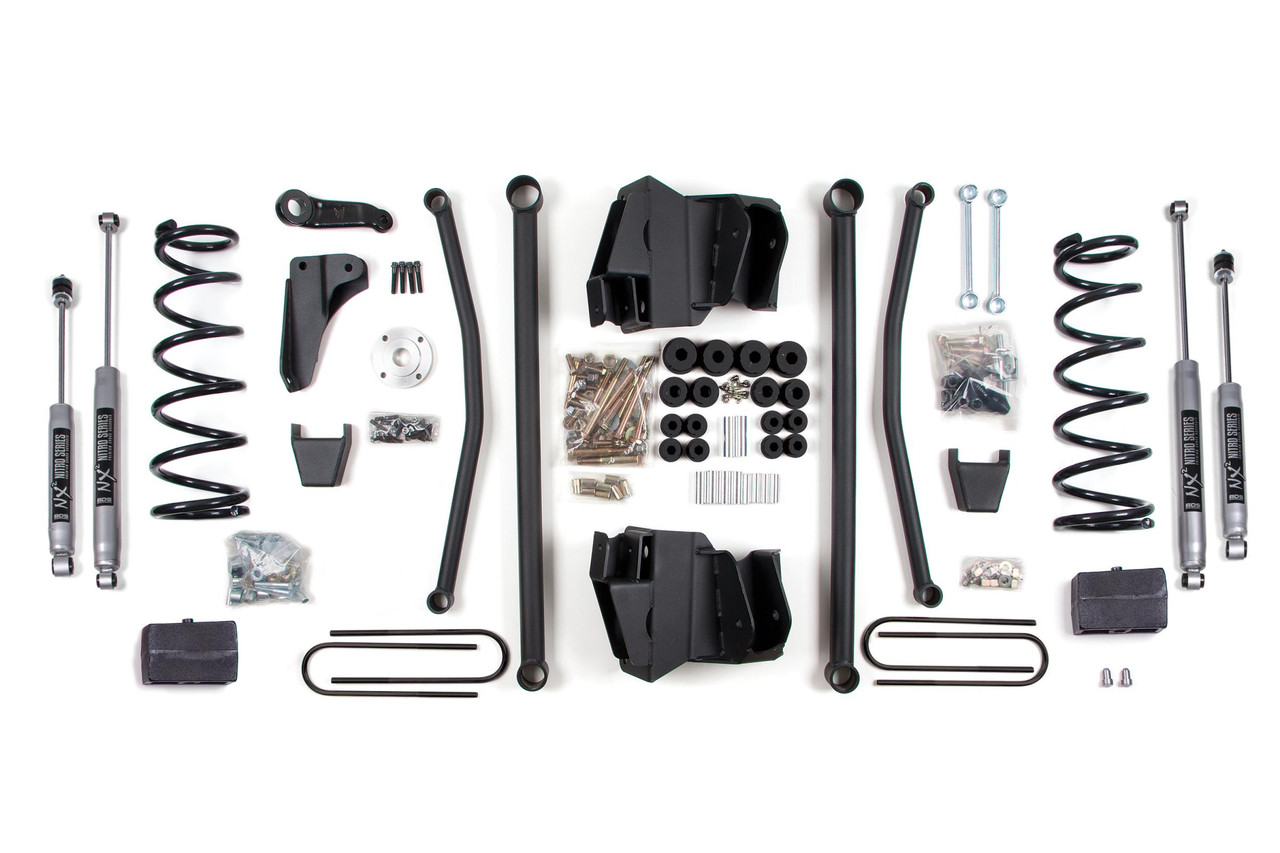

Kit Components:

  • Includes two BDS002508, 03-05 Dodge 3/4 ton 5in Rear Spring, UPC Code 658848611294
  • Includes one BDS012603, 03-07 Ram 6 Inch Long Arm Box Kit, UPC Code 658848612697
  • Includes one BDS012801, Dodge Control Arm Mounts, UPC Code 658848612840
  • Includes one BDS012802, Dodge Control Arm Box Kit, UPC Code 658848612857
  • Includes one BDS032601, 03-12 Dodge Ram 2500(gas) 6 Inch Coil Kit, UPC Code 658848616411
  • Includes two FOX98224750, Fox 2.0 Shock 28.25 x 17.15 x 2- S50/EB1
  • Includes two FOX98224761, Fox 2.0 Shock 33.85 x 20.75 x 2- EB1/EB1
  • Includes four UBT4067, 9/16 x 4 x 12-1/2 Round U-bolt, UPC Code 711745613003

The BDS Suspension BDS662FS 6 Inch Lift Kit for 2003-2007 Dodge RAM 2500/3500 4WD gas trucks unlocks the true potential of off-road performance while greatly enhancing on-road stability and control. Engineered for those who demand excellence, this comprehensive lift kit raises your truck by 6 inches in the front and 4 inches in the rear, offering ample clearance for tires up to 37 inches, ensuring you conquer any terrain with confidence.

At the heart of this kit are long lower control arms, meticulously designed to reduce caster change throughout the wheel travel. Experience a more responsive and stable steering feel thanks to the retention of factory triangulation, delivering an unparalleled connection between driver and machine. The kit comes complete with high-quality gas-specific Pro-Ride coil springs, which are constructed from high tensile steel for unmatched strength and reliability. These springs adapt effortlessly to various terrains, providing a smooth ride no matter where your adventures lead.

Steering dynamics are further refined with a forged drop pitman arm and a heavy-duty track bar bracket that optimizes steering geometry and keeps your axle centered during suspension travel. Additionally, the kit features robust components like bump stops, sway bar links, and precision-tuned NX2 or FOX 2.0 gas shocks, elevating both comfort and handling.

For those seeking an exceptional performance lift kit, the BDS662FS not only enhances your vehicle’s capabilities but also ensures it looks strikingly aggressive. Engineered for durability and performance, this lift kit is the key to transforming your Dodge RAM into a powerful and stylish off-road machine, ready to tackle any challenge with ease.

View AllClose

Warranty Information

Lifetime Replacement Warranty Extends to Cover all BDS Hard Parts
