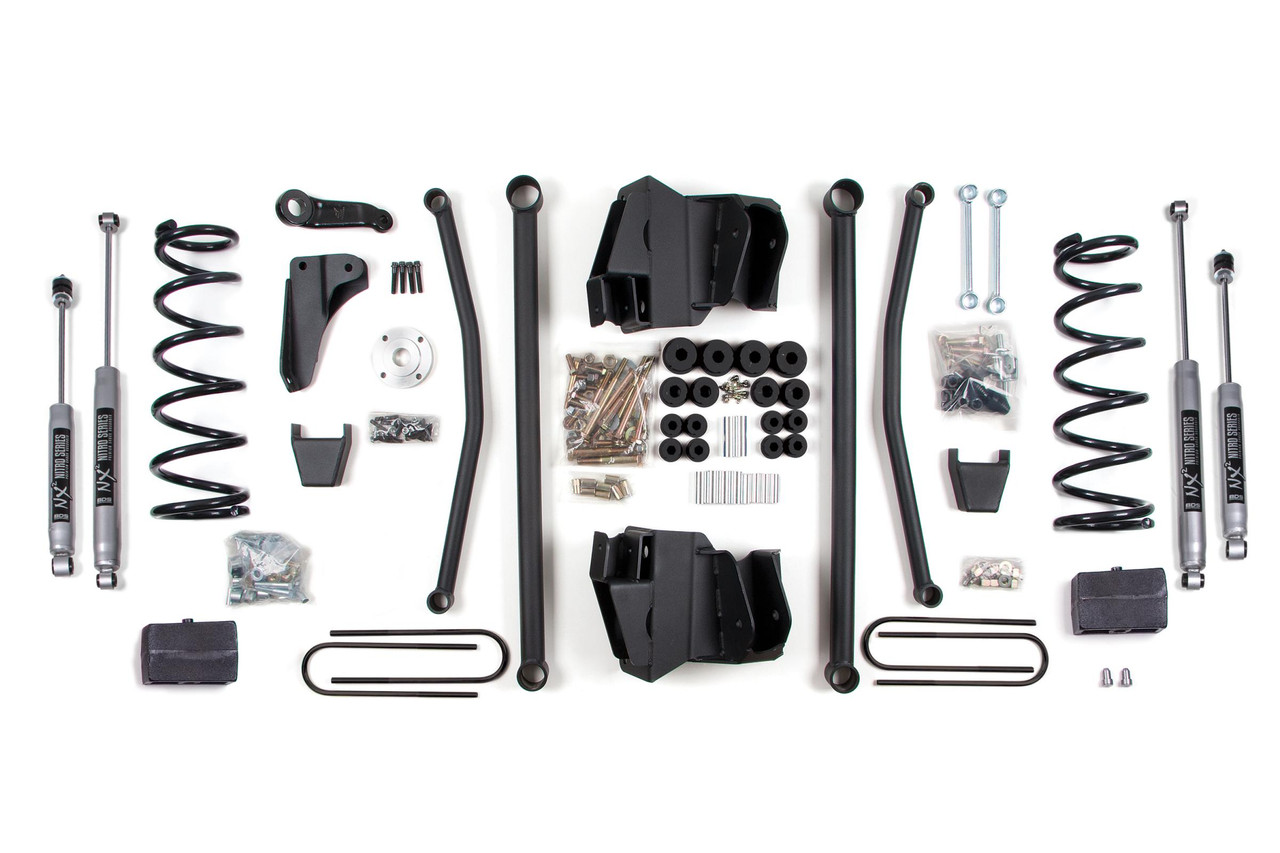

BDS SUSPENSION BDS660FS 6 INCH LIFT KIT LONG ARM DODGE RAM 2500/3500 03-07 4WD GAS LEAF SPRINGS 3.5 INCH AXLE FOX 2.0 PERFORMANCE

Built to outperform, BDS Suspension engineered a 6-inch lift kit with long arm conversion for your 2003-2007 Dodge RAM 2500 and 3500 4WD gas powered truck that maximizes performance on and off road.

Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37 inch Tires. BDS built the long lower control arms to reduce caster change through wheel travel which creates a more controlled feeling in the steering wheel. This long arm long arm system retains the factory triangulation of the arms which adds to the stability of the suspension system.

Up front the lift kit includes gas-specific Pro-Ride coil springs, all four control arms plus mounting bracket, forged drop pitman arm and track bar bracket for steering correction, bump stops, sway bar links, and precision tuned NX2 or FOX 2.0 nitrogen charged shocks. In the rear this kit utilizes heavy duty cast steel blocks, longer u-bolts, and a matching set of NX2 Nitro or FOX 2.0 Performance shocks.

Pro-Ride Coil Springs

A pair of full-length, gas-specific, progressive rate Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains. Manufactured from high tensile steel, our direct OE replacement coil springs are engineered with properly sized wire diameter. This results in maximum reliability without premature coil bind.

Steering Correction

To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.

• Front Lift Method: Coil Spring
• Rear Lift Method: Block
• Shocks Included: Yes
• Front Lift Height: 6 inch
• Rear Lift Height: 4 inch

1. Measure rear axle tube before ordering. Some 4 inch axle models with dual overloads will require u-bolt 4068.
2. Power Wagon applications require sway bar link kit 122401. The Power Wagon has a 2 inch taller ride height, so net lift gain will be 4 inch.
3. If driveline vibration occurs, order transfer case index kit 122801 or 122802.
4. If your Truck has had the steering gear box changed and the sector shaft diameter measures 1-1/2 inch-1-5/8 inch you will need to add part BDS082404 to your kit.

• Tubular long arms reduce caster change and create more controlled feeling on and off road
• Heavy duty control arm brackets maintain proper suspension geometry
• Front high strength progressive rate coil springs for a great ride on any terrain
• Front track bar relocation bracket to re-position axle
• Forged drop pitman arm to correct steering angles
• Front sway bar correction to maintain handling performance
• BDS NX2 gas or FOX performance series Internal Floating Piston gas shocks to improved ride and offroad performance

Rear Lift Option

Leaf Springs

• Eliminates any need for a lift block.
• Reduces axle wrap and creates a more controlled and stable feel.
• Multi-leaf progressive design for a smooth ride.
• Maintains factory payload weight ratings.

Axle Diameter 3.5 Inch Rear Axle

The Dodge Ram truck has 2 different rear axle diameters. Please measure your rear axle and select the appropriate rear kit for your vehicle.

Shock Option

FOX 2.0 Performance Series

• 2-inch Impact extruded aluminum body
• Internal floating piston (Internal Floating Piston) monotube design
• CNC machined 6061-T6 aluminum mounting ends
• Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• Long-lasting clear anodized finish

Kit Components:

• Includes two BDS002508, 03-05 Dodge 3/4 ton 5in Rear Spring, UPC Code 658848611294
• Includes one BDS012603, 03-07 Ram 6 Inch Long Arm Box Kit, UPC Code 658848612697
• Includes one BDS012801, Dodge Control Arm Mounts, UPC Code 658848612840
• Includes one BDS012802, Dodge Control Arm Box Kit, UPC Code 658848612857
• Includes one BDS032601, 03-12 Dodge Ram 2500(gas) 6 Inch Coil Kit, UPC Code 658848616411
• Includes two FOX98224750, Fox 2.0 Shock 28.25 x 17.15 x 2- S50/EB1
• Includes two FOX98224761, Fox 2.0 Shock 33.85 x 20.75 x 2- EB1/EB1
• Includes four UBT4064, 9/16 x 3-1/2 x 12-1/2 Round U-bolt, UPC Code 711745613027

Transform the performance and stance of your 2003-2007 Dodge RAM 2500/3500 4WD gas truck with the BDS Suspension BDS660FS 6-Inch Lift Kit. This comprehensive long arm conversion system is engineered to elevate your off-road experience, allowing clearance for up to 37-inch tires, while significantly enhancing handling and stability on various terrains.

The kit includes advanced features like heavy-duty, fully welded long lower control arms designed to minimize caster changes during wheel travel, ensuring a more responsive and controlled steering feel. Retaining factory triangulation, this system promises optimal stability, making your rides smoother whether you're on the highway or tackling rugged trails.

Front lift is achieved with high-strength, gas-specific Pro-Ride coil springs that offer a progressive rate for a refined ride. The inclusion of NX2 Nitro or FOX 2.0 nitrogen-charged shocks maximizes performance, absorbing bumps effortlessly while providing a comfortable driving experience. In the rear, heavy-duty cast steel blocks paired with longer u-bolts ensure durability and maintain payload capacity without compromising ride quality.

The BDS Suspension kit also features a forged drop pitman arm and a heavy-duty track bar drop bracket, aligning steering geometry and improving handling. Moreover, the sway bar links are designed to maintain performance while cornering, making the installation of this lift kit a seamless upgrade to your vehicle.

With its robust design and user-friendly installation, this lift kit embodies a combination of strength, performance, and reliability. Experience the difference with a product that is built to last and ready for whatever adventures await. Elevate your truck’s capabilities and take your driving experience to the next level with the BDS660FS Lift Kit.
