BDS SUSPENSION BDS653FS 8 INCH LIFT KIT LONG ARM DODGE RAM 2500/3500 03-07 4WD DIESEL AUTOMATIC BLOCK 4 INCH AXLE FOX 2.0 PERFORMANCE SHOCKS

Built to outperform, BDS Suspension engineered a 8-inch lift kit with long arm conversion for your 2003-2007 Dodge RAM 2500 and 3500 diesel powered truck that maximizes performance on and off road.

Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 38 inch tires. BDS built the long lower control arms to reduce caster change through wheel travel which creates a more controlled feeling in the steering wheel.

This long arm long arm system retains the factory triangulation of the arms which adds to the stability of the suspension system.

Up front the lift kit includes diesel-specific Pro-Ride coil springs, all four control arms plus mounting bracket, forged drop pitman arm and track bar bracket for steering correction, bump stops, sway bar links, and precision tuned NX2 or FOX 2.0 nitrogen charged shocks.

In the rear this kit utilizes heavy duty cast steel blocks, longer u-bolts, and a matching set of NX2 Nitro or FOX 2.0 Performance shocks.

Pro-Ride Coil Springs
A pair of full-length, diesel-specific, progressive rate Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains. Manufactured from high tensile steel, our direct OE replacement coil springs are engineered with properly sized wire diameter. This results in maximum reliability without premature coil bind.

Steering Correction
To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.

Features & Benefits

• Tubular long arms reduce caster change and create more controlled feeling on and off road
• Heavy duty control arm brackets maintain proper suspension geometry
• Front high strength progressive rate coil springs for a great ride on any terrain
• Front track bar relocation bracket to re-position axle
• Forged drop pitman arm to correct steering angles
• Front sway bar correction to maintain handling performance
• BDS NX2 gas or FOX performance series IFP gas shocks to improved ride and offroad performance

Recommended Tires & Wheels

• (Trimming may be required)
• 38 x 13.5 with 17 x 9 and 4.5 in. Backspace

Rear Lift Option Automatic 4 Inch Axle

• The Dodge Ram truck has 2 different rear axle diameters. Please measure your rear axle and select the appropriate rear kit for your vehicle.

Block Kit

• Blocks are made from cast iron for strength.
• Tapered for correct pinion angle.
• Steel pin and hole are offset to restore axle position.

Shock Option

FOX 2.0 Performance Series

• 2-inch Impact extruded aluminum body
• Internal floating piston (IFP) monotube design
• CNC machined 6061-T6 aluminum mounting ends
• Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• Long-lasting clear anodized finish

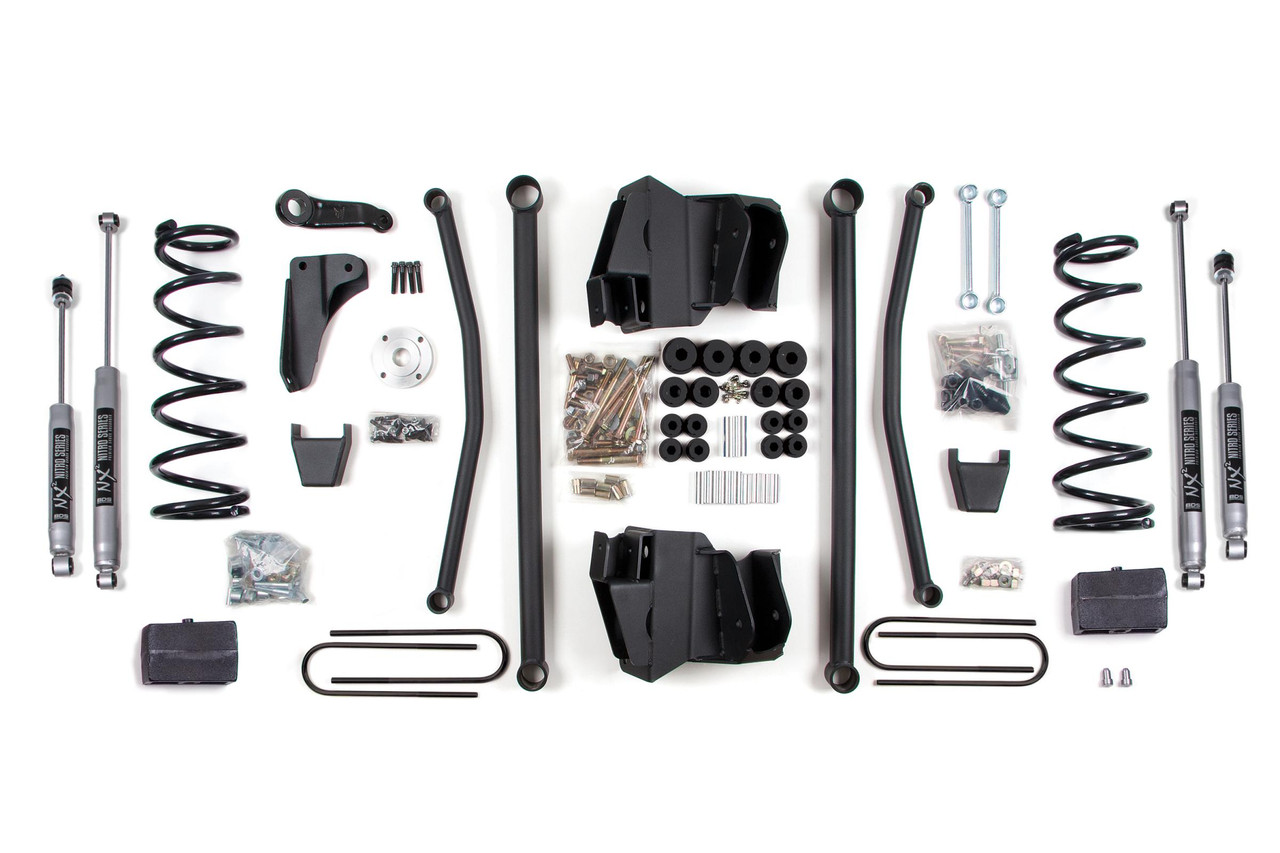

Kit Components:

• Includes one BDS012516, Dodge 5 inch Rear Block Kit w/4 inch, UPC Code 658848612598
• Includes one BDS012801, Dodge Control Arm Mounts, UPC Code 658848612840
• Includes one BDS012802, Dodge Control Arm Box Kit, UPC Code 658848612857
• Includes one BDS012805, 03-07 Dodge Ram Long Arm Box Kit, UPC Code 658848612888
• Includes one BDS032801, Dodge 8in Coil spring, UPC Code 658848616442
• Includes one BDS122801, 03-10 Ram T-Case Indexing kit, UPC Code 658848619801
• Includes two FOX98224751, Fox 2.0 Shock 29.85 x 18.25 x 2- S50/EB1
• Includes two FOX98224761, Fox 2.0 Shock 33.85 x 20.75 x 2- EB1/EB1

Elevate your driving experience with the BDS Suspension BDS653FS 8 Inch Lift Kit, expertly engineered for the 2003-2007 Dodge RAM 2500 and 3500 diesel 4WD trucks. This outstanding lift kit is designed to maximize both off-road performance and on-road stability, making it a must-have for drivers seeking enhanced capability and style.

Crafted to raise your truck by 8 inches, the kit provides ample clearance for up to 38-inch tires, allowing for impressive ground clearance and a commanding presence on any terrain. The advanced long arm design minimizes caster change during wheel travel, ensuring a more controlled and responsive steering experience, whether you're navigating rugged trails or cruising city streets.

This comprehensive kit includes diesel-specific Pro-Ride coil springs, which deliver a smooth ride across varying surfaces. High tensile steel construction ensures maximum reliability and performance along with proper sizing to prevent premature coil bind. The installation also features durable control arm brackets that maintain suspension geometry, enhancing overall stability.

For refined steering control, a forged drop pitman arm and a track bar relocation bracket work in tandem to optimize the steering angles and effectively recenter the front axle. Enhanced handling is supported by precision-tuned NX2 or FOX 2.0 nitrogen-charged shocks that provide superior damping capabilities, both on and off-road.

The rear lift option incorporates heavy-duty cast steel blocks and longer u-bolts, ensuring the durability and resilience needed for tougher challenges. With components designed for strength and flexibility, and recommended tire sizes for optimal fit, the BDS653FS lift kit transforms your RAM truck into a highly capable, versatile powerhouse. Experience the difference that quality engineering and performance can make in your driving adventures with this exceptional suspension lift kit.
