BDS SUSPENSION BDS650F 6 INCH LIFT KIT LONG ARM & FOX 2.5 COIL-OVER CONVERSION DODGE RAM 2500/3500 03-07 4WD FOX 2.5 PERFORMANCE SHOCKS DIESEL REAR LEAF SPRINGS FOX 2.5 PERFORMANCE SHOCKS

Maximize the capability of your 2003-2007 Dodge RAM 2500 and 3500 4WD diesel truck with this 6-inch lift kit with long arm and FOX 2.5 Coil-over conversion from BDS Suspension. These kits feature proprietary FOX 2.5 coil-over shocks designed specifically to bolt-on performance for increased travel and the ability to soak up the roughest terrain along with smooth on-road comfort.

Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37 inch Tires.

BDS developed a mounting system that bolts directly to the factory coil mounts with only minor trimming/drilling required. This new system also

• Includes weld in reinforcements at the axle for superior strength. BDS built the long lower control arms to reduce caster change through wheel travel which creates a more controlled feeling in the steering wheel. This long arm long arm system retains the factory triangulation of the arms which adds to the stability of the suspension system.

Up front the lift kit includes FOX 2.5 Coil-Over shocks, all four control arms plus mounting bracket, forged drop pitman arm and track bar bracket for steering correction, bump stops, and sway bar links. In the rear this kit utilizes heavy duty cast steel blocks, longer u-bolts, and a matching set of FOX 2.0 Performance shocks.

FOX 2.5 Coil-Overs

FOX 2.5 coil-overs offer next level performance for on-road comfort and off-road comfort capability. Tuned and ready to install right out of the box, these bolt-on 2.5-inch diameter coil-overs are built for abuse and packed with race-proven technology. They include a remote reservoir for additional fluid capacity to keep your shocks running cool so you can push the limits in the rough terrain.

Long Arm Conversion

Upgrading the standard control arms to a long arm adds strength, improves handling and takes offroad articulation to the next level. This upgrade consists of massive 1/4-inch steel frame mounted brackets to install the oversized upper and lower formed long arms. The arms are formed for maximum Tire clearance and allow the stock control arm tabs to remain on the vehicle.

The upper arms are solid stock while the heavy wall tubular lower arms utilize oversized greaseable polyurethane bushings for superior road vibration isolation.

• Front Lift Method: Coil-Over
• Rear Lift Method: Block
• Shocks Included: Yes
• Front Lift Height: 6 inch
• Rear Lift Height: 4 inch

1. Measure rear axle tube before ordering. Some 4 inch axle models with dual overloads will require u-bolt 4068.
2. Although unusual, if driveline vibration occurs, order appropriate transfer case drop kit 122602 (03-05 Diesel Auto), 122605 (06-08 Diesel Auto), or 122606 (03-13 Diesel Auto with OE mount P/N 52121938AA) available in options or t-case index kit. #122801 auto or #122802 for manual transmission.
3. Optional transfer case drop kits fit automatic transmission models only.
4. Exhaust modification will be required for dual rear shock kit 122009 on 6.7L Diesel models.
5. If your Truck has had the steering gear box changed and the sector shaft diameter measures 1-1/2 inch-1-5/8 inch you will need to add part # BDS082404 to your kit.

• FOX 2.5 Factory series coil-overs offer improved damper performance over stock
• Tubular long arms reduce caster change and create more controlled feeling on and off road
• Heavy duty control arm brackets maintain proper suspension geometry
• Front high strength progressive rate coil springs for a great ride on any terrain
• Front track bar relocation bracket to re-position axle
• Forged drop pitman arm to correct steering angles
• Front sway bar correction to maintain handling performance
• Rear FOX performance series Internal Floating Piston gas shocks to improved ride and offroad performance

Rear Lift Option

Leaf Springs

• Eliminates any need for a lift block.
• Reduces axle wrap and creates a more controlled and stable feel.
• Multi-leaf progressive design for a smooth ride.
• Maintains factory payload weight ratings.

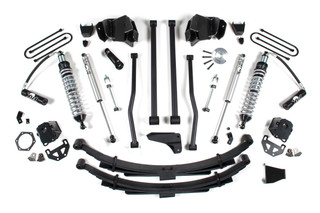

Kit Components:

• Includes two BDS002508, 03-05 Dodge 3/4 ton 5in Rear Spring, UPC Code 658848611294
• Includes one BDS012603, 03-07 Ram 6 Inch Long Arm Box Kit, UPC Code 658848612697
• Includes one BDS012801, Dodge Control Arm Mounts, UPC Code 658848612840
• Includes one BDS012802, Dodge Control Arm Box Kit, UPC Code 658848612857
• Includes one BDS122810, 03-12 Ram 2500 Coilover Mount Kit, UPC Code 658848619825
• Includes one FOX88402096, Kit: BDS 03-13 Ram 2500/3500 Front Coilver, 2.5 Series, R/R 6 inch Lift, UPC Code 814897013650
• Includes two FOX98224761, Fox 2.0 Shock 33.85 x 20.75 x 2- EB1/EB1
• Includes four UBT4067, 9/16 x 4 x 12-1/2 Round U-bolt, UPC Code 711745613003

Transform your 2003-2007 Dodge RAM 2500 or 3500 4WD diesel truck's performance and appearance with the BDS SUSPENSION BDS650F 6 Inch Lift Kit. This comprehensive lift kit features a long arm design combined with FOX 2.5 Coil-over shocks, engineered to provide unmatched durability and refinement when tackling off-road challenges or cruising on pavement.

The BDS650F kit elevates your truck by 6 inches in the front and 4 inches in the rear, allowing clearance for tires up to 37 inches in diameter. Whether you're navigating rocky trails or smooth highways, the proprietary FOX 2.5 coil-overs enhance travel and absorb impacts, ensuring a smooth ride in any condition. With their remote reservoir design, these shocks maintain optimal temperatures during heavy use, delivering sustained performance when you need it most.

Installation is straightforward, featuring a custom mounting system that connects directly to factory coil mounts, requiring only minor modifications. This kit is engineered with robust weld-in reinforcements at the axle for added security. The long lower control arms minimize caster change throughout wheel travel, offering improved steering response and enhanced stability.

Included components deliver everything you'll need for a comprehensive upgrade. The kit features heavy-duty cast steel blocks, longer u-bolts, bump stops, and sway bar links. With meticulously designed control arm brackets, the suspension geometry is preserved, ensuring that your ride remains predictable and controlled.

Experience a new level of off-road capability and comfort with the BDS Suspension BDS650F Lift Kit. This kit not only elevates your truck's stature but also enhances its performance, so you can conquer any terrain with confidence and style. Embrace the adventure that lies ahead.
