BDS SUSPENSION BDS633H 6 INCH LIFT KIT LONG ARM DODGE RAM 2500 09-13 4WD GAS BLOCK 3.5 INCH AXLE NX2 NITRO

Built to outperform, BDS Suspension engineered a 6-inch lift kit with long arm conversion for your 2009-2013 Dodge RAM 2500 gas powered truck that maximizes performance on and off road.

Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37 inch Tires.

BDS built the long lower control arms to reduce caster change through wheel travel which creates a more controlled feeling in the steering wheel. This long arm long arm system retains the factory triangulation of the arms which adds to the stability of the suspension system.

Up front the lift kit includes gas-specific Pro-Ride coil springs, all four control arms plus mounting bracket, forged drop pitman arm and track bar bracket for steering correction, bump stops, sway bar links, and precision tuned NX2 or FOX 2.0 nitrogen charged shocks.

In the rear this kit utilizes heavy duty cast steel blocks, longer u-bolts, and a matching set of NX2 Nitro or FOX 2.0 Performance shocks.

Pro-Ride Coil Springs

A pair of full-length, gas-specific, progressive rate Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains. Manufactured from high tensile steel, our direct OE replacement coil springs are engineered with properly sized wire diameter. This results in maximum reliability without premature coil bind.

Steering Correction

To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.

• Front Lift Method: Coil Spring
• Rear Lift Method: Block
• Shocks Included: Yes
• Front Lift Height: 6 inch
• Rear Lift Height: 4 inch

1. Measure rear axle tube before ordering. Some 4 inch axle models with dual overloads will require u-bolt 4068.
2. Power Wagon applications require sway bar link kit #122401. The Power Wagon has a 2 inch taller ride height, so net lift gain will be 4 inch.
3. If driveline vibration occurs, order transfer case index kit #122801 or 122802.
4. 102009 Rear brake lines will not fit 2012-13 models.

• Tubular long arms reduce caster change and create more controlled feeling on and off road
• Heavy duty control arm brackets maintain proper suspension geometry
• Front high strength progressive rate coil springs for a great ride on any terrain
• Front track bar relocation bracket to re-position axle
• Forged drop pitman arm to correct steering angles
• Front sway bar correction to maintain handling performance
• BDS NX2 gas or FOX performance series Internal Floating Piston gas shocks to improved ride and offroad performance

Rear Lift Option Block Kit

• Blocks are made from cast iron for strength.
• Tapered for correct pinion angle.
• Steel pin and hole are offset to restore axle position.

Axle Diameter 3.5 Inch Axle

The Dodge Ram truck has 2 different rear axle diameters. Please measure your rear axle and select the appropriate rear kit for your vehicle.

Shock Option NX2 Nitro Series

• Nitrogen-charged
• Twin-tube design
• 10-stage velocity-sensitive valving
• Dual-welded ends for increased strength
• 1-3/8-inch high-flow piston
• Self-lubricating seals
• Silver powder coat finish

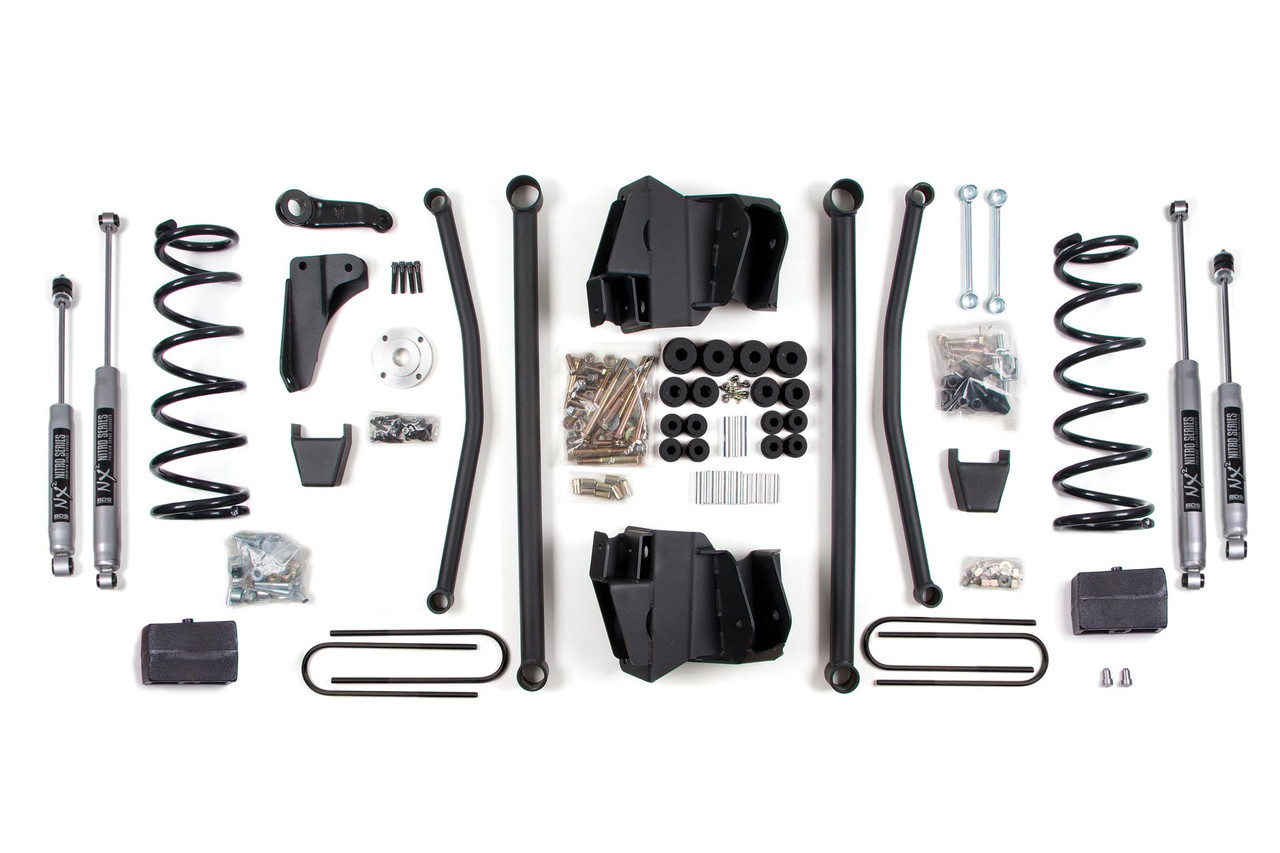

Kit Components:

• Includes one BDS012408, 03-up Dodge 3/4ton 4 Inch Rear w/3-1/2 axle, UPC Code 658848612376
• Includes one BDS012601, 09-10 Ram 6 Inch Long Arm Box Kit, UPC Code 658848612673
• Includes one BDS012801, Dodge Control Arm Mounts, UPC Code 658848612840
• Includes one BDS012802, Dodge Control Arm Box Kit, UPC Code 658848612857
• Includes one BDS032601, 03-12 Dodge Ram 2500(gas) 6 Inch Coil Kit, UPC Code 658848616411
• Includes two BDS85750, Shock- 27.40 x 16.20 x 2-3/8 - S50/EB2, UPC Code 711745609600
• Includes two BDS85761, Shock- 33.00 x 19.25 x 2-3/8 - EB1/EB1, UPC Code 711745609709

Elevate your 2009-2013 Dodge RAM 2500 with the BDS Suspension BDS633H 6 Inch Lift Kit, meticulously designed for enthusiasts seeking superior performance both on and off-road. This long arm lift kit provides an impressive 6-inch lift in the front and 4-inch lift in the rear, allowing you to outfit your truck with tires up to 37 inches in diameter, enhancing its bold stance and capability.

Crafted for optimal performance, the BDS lift kit features heavy-duty components like the long lower control arms, which effectively minimize caster change during wheel travel. This design enhances steering responsiveness, resulting in a more controlled driving experience. The kit upholds factory triangulation, boosting overall suspension stability.

Included in the comprehensive setup are gas-specific Pro-Ride coil springs, precision-tuned NX2 Nitro or FOX 2.0 shocks, and a suite of essential mounting hardware. The front lift assembly comprises control arms, a forged drop pitman arm for improved steering geometry, and a track bar bracket to maintain axle center position, ensuring seamless suspension operation. The rear setup utilizes robust cast steel blocks and matching NX2 Nitro or FOX Performance shocks, delivering durability and enhanced ride quality across diverse terrains.

Engineered with high tensile steel, the Pro-Ride coil springs provide reliable performance without risk of coil bind, while the block lift kit ensures optimum pinion angle adjustment and axle positioning. Additional optional parts help accommodate various configurations, such as specific rear brake lines and transfer case indexing kits for enhanced driveline performance.

Transform your Dodge RAM 2500 into a versatile powerhouse with the BDS Suspension BDS633H 6 Inch Lift Kit, designed to tackle any adventure head-on while providing a smooth ride.
