BDS SUSPENSION BDS633FS 6 INCH LIFT KIT LONG ARM DODGE RAM 2500 09-13 4WD GAS BLOCK 3.5 INCH AXLE FOX 2.0 PERFORMANCE

Built to outperform, BDS Suspension engineered a 6-inch lift kit with long arm conversion for your 2009-2013 Dodge RAM 2500 gas powered truck that maximizes performance on and off road.

Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37 inch Tires.

BDS built the long lower control arms to reduce caster change through wheel travel which creates a more controlled feeling in the steering wheel. This long arm long arm system retains the factory triangulation of the arms which adds to the stability of the suspension system.

Up front the lift kit includes gas-specific Pro-Ride coil springs, all four control arms plus mounting bracket, forged drop pitman arm and track bar bracket for steering correction, bump stops, sway bar links, and precision tuned NX2 or FOX 2.0 nitrogen charged shocks.

In the rear this kit utilizes heavy duty cast steel blocks, longer u-bolts, and a matching set of NX2 Nitro or FOX 2.0 Performance shocks.

Pro-Ride Coil Springs

A pair of full-length, gas-specific, progressive rate Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains. Manufactured from high tensile steel, our direct OE replacement coil springs are engineered with properly sized wire diameter. This results in maximum reliability without premature coil bind.

Steering Correction

To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.

• Front Lift Method: Coil Spring
• Rear Lift Method: Block
• Shocks Included: Yes
• Front Lift Height: 6 inch
• Rear Lift Height: 4 inch

1. Measure rear axle tube before ordering. Some 4 inch axle models with dual overloads will require u-bolt 4068.
2. Power Wagon applications require sway bar link kit #122401. The Power Wagon has a 2 inch taller ride height, so net lift gain will be 4 inch.
3. If driveline vibration occurs, order transfer case index kit #122801 or 122802.
4. 102009 Rear brake lines will not fit 2012-13 models.

• Tubular long arms reduce caster change and create more controlled feeling on and off road
• Heavy duty control arm brackets maintain proper suspension geometry
• Front high strength progressive rate coil springs for a great ride on any terrain
• Front track bar relocation bracket to re-position axle
• Forged drop pitman arm to correct steering angles
• Front sway bar correction to maintain handling performance
• BDS NX2 gas or FOX performance series Internal Floating Piston gas shocks to improved ride and offroad performance

Rear Lift Option Block Kit

• Blocks are made from cast iron for strength.
• Tapered for correct pinion angle.
• Steel pin and hole are offset to restore axle position.

Axle Diameter 3.5 Inch Axle

The Dodge Ram truck has 2 different rear axle diameters. Please measure your rear axle and select the appropriate rear kit for your vehicle.

FOX 2.0 Performance Series

• 2-inch Impact extruded aluminum body
• Internal floating piston (Internal Floating Piston) monotube design
• CNC machined 6061-T6 aluminum mounting ends
• Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• Long-lasting clear anodized finish

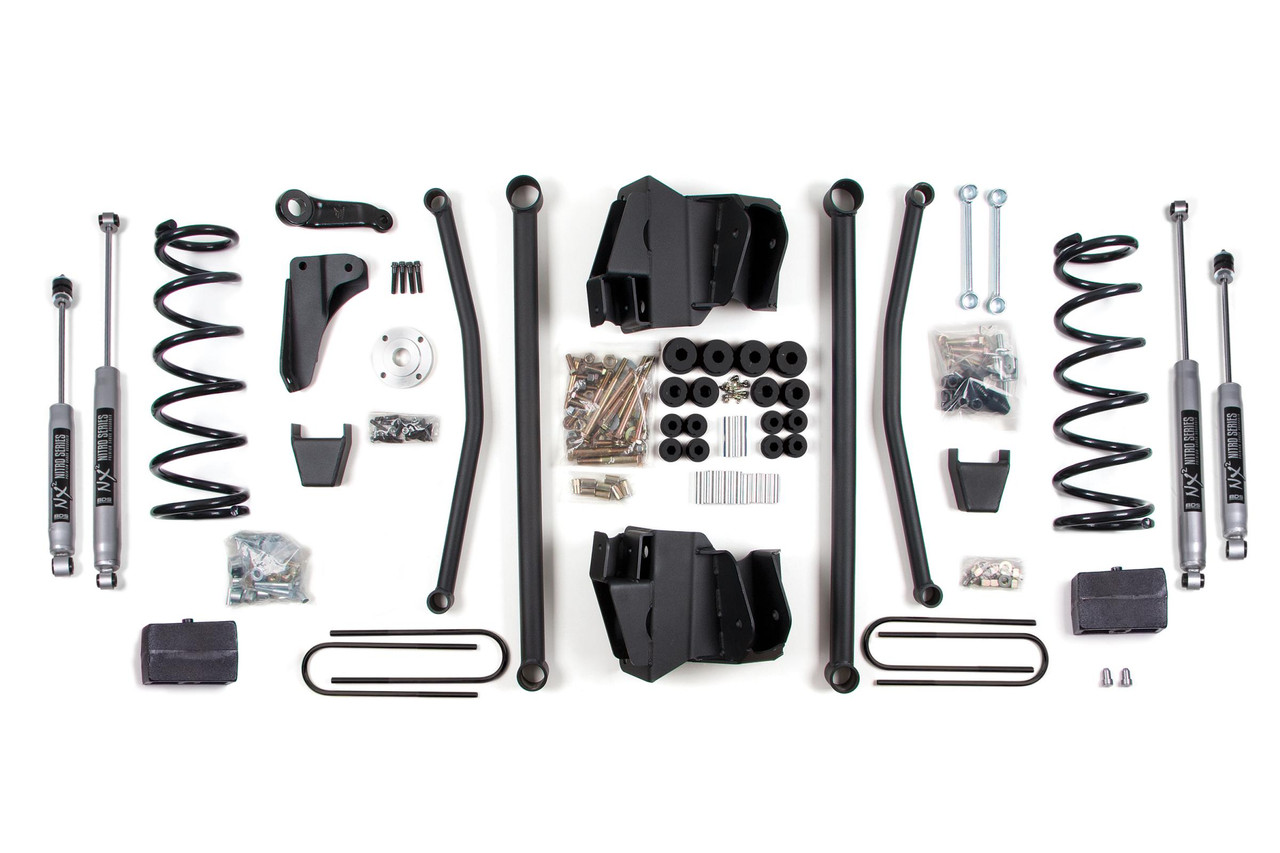

Kit Components:

• Includes one BDS012408, 03-up Dodge 3/4ton 4 Inch Rear w/3-1/2 axle, UPC Code 658848612376
• Includes one BDS012601, 09-10 Ram 6 Inch Long Arm Box Kit, UPC Code 658848612673
• Includes one BDS012801, Dodge Control Arm Mounts, UPC Code 658848612840
• Includes one BDS012802, Dodge Control Arm Box Kit, UPC Code 658848612857
• Includes one BDS032601, 03-12 Dodge Ram 2500(gas) 6 Inch Coil Kit, UPC Code 658848616411
• Includes two FOX98224750, Fox 2.0 Shock 28.25 x 17.15 x 2- S50/EB1
• Includes two FOX98224761, Fox 2.0 Shock 33.85 x 20.75 x 2- EB1/EB1

The BDS Suspension BDS633FS 6 Inch Lift Kit is expertly crafted for the 2009-2013 Dodge RAM 2500 4WD gas models, offering an impressive lift that enhances both on-road handling and off-road performance. This comprehensive long arm conversion kit is designed to elevate your truck's stance while providing exceptional capabilities and clearance for larger 37-inch tires.

At the heart of this kit are the robust long lower control arms, engineered to minimize caster changes during wheel travel. This innovation translates to a smoother and more controlled steering experience, allowing drivers to navigate various terrains with confidence. The long arm system maintains the factory triangulation of the arms, ensuring optimal stability for an improved suspension performance.

The kit features gas-specific Pro-Ride coil springs, which deliver the perfect lift height while ensuring a smooth ride across diverse landscapes. Constructed from high-tensile strength steel, these progressive rate springs offer reliable performance without the risk of premature coil bind.

For enhanced steering response, a forged drop pitman arm is included to optimize steering geometry, paired with a heavy-duty track bar drop bracket that keeps the axle centered throughout suspension travel. Complementing this are NX2 or FOX 2.0 nitrogen-charged shocks, designed for ultimate ride quality and off-road resilience.

The rear lift is supported by heavy-duty cast steel blocks, designed for strength and stability, along with longer u-bolts to ensure secure attachment. Each component of the BDS suspension kit is meticulously engineered to improve handling dynamics, whether you're cruising the highway or tackling rugged trails.

Tailor your Dodge RAM 2500 to achieve unparalleled performance and enhanced capability with the BDS Suspension BDS633FS 6 Inch Lift Kit, a perfect choice for those keen to elevate their driving experience.
