BDS SUSPENSION BDS632FS 8 INCH BLOCK LIFT KIT LONG ARM DODGE RAM 2500 09-13 4WD DIESEL FOX 2.0 PERFORMANCE SHOCKS

Built to outperform, BDS Suspension engineered a 8-inch lift kit with long arm conversion for your 2009-2013 Dodge RAM 2500 diesel powered truck that maximizes performance on and off road. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 38 inch tires.

BDS built the long lower control arms to reduce caster change through wheel travel which creates a more controlled feeling in the steering wheel. This long arm long arm system retains the factory triangulation of the arms which adds to the stability of the suspension system.

Up front the lift kit includes diesel-specific Pro-Ride coil springs, all four control arms plus mounting bracket, forged drop pitman arm and track bar bracket for steering correction, bump stops, sway bar links, and precision tuned NX2 or FOX 2.0 nitrogen charged shocks. In the rear this kit utilizes heavy duty cast steel blocks, longer u-bolts, and a matching set of NX2 Nitro or FOX 2.0 Performance shocks.

Pro-Ride Coil Springs
A pair of full-length, diesel-specific, progressive rate Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains. Manufactured from high tensile steel, our direct OE replacement coil springs are engineered with properly sized wire diameter. This results in maximum reliability without premature coil bind.

Steering Correction
To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.

Features & Benefits

• Tubular long arms reduce caster change and create more controlled feeling on and off road
• Heavy duty control arm brackets maintain proper suspension geometry
• Front high strength progressive rate coil springs for a great ride on any terrain
• Front track bar relocation bracket to re-position axle
• Forged drop pitman arm to correct steering angles
• Front sway bar correction to maintain handling performance
• FOX performance series IFP gas shocks to improved ride and offroad performance

Recommended Tires & Wheels

• (Trimming may be required)
• 38 x 13.5 with 17 x 9 and 4.5 in. Backspace

Rear Lift Option

• Block Kit
• Blocks are made from cast iron for strength.
• Tapered for correct pinion angle.
• Steel pin and hole are offset to restore axle position.

Axle Diameter
4 inch Axle

Shock Option

• FOX 2.0 Performance Series
• 2-inch Impact extruded aluminum body
• Internal floating piston (IFP) monotube design
• CNC machined 6061-T6 aluminum mounting ends
• Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• Long-lasting clear anodized finish

Details:

• Front Lift Method: Coil Spring
• Rear Lift Method: Block
• Shocks Included: Yes
• Front Lift Height: 8 inch
• Rear Lift Height: 5 inch

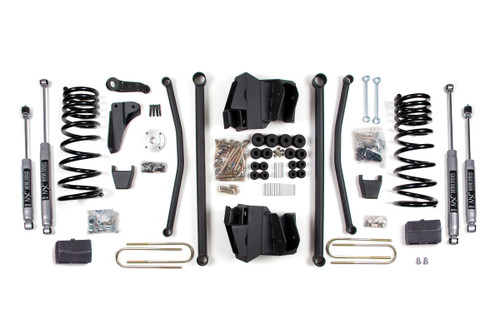

Kit components:

Includes one BDS012516, Dodge 5 inch Rear Block Kit w/4 inch, UPC Code 658848612598
Includes one BDS012801, Dodge Control Arm Mounts, UPC Code 658848612840
Includes one BDS012802, Dodge Control Arm Box Kit, UPC Code 658848612857
Includes one BDS012803, 09-10 Dodge Long Arm Box Kit, UPC Code 658848612864
Includes one BDS032801, Dodge 8in Coil spring, UPC Code 658848616442
Includes one BDS122811, 2009-13 Ram 2500 6bolt Indexing Ring Kit, UPC Code 658848619832
Includes two FOX98224751, Fox 2.0 Shock 29.85 x 18.25 x 2- S50/EB1
Includes two FOX98224761, Fox 2.0 Shock 33.85 x 20.75 x 2- EB1/EB1

Elevate your driving experience with the BDS Suspension BDS632FS 8-Inch Block Lift Kit tailored specifically for the 2009-2013 Dodge RAM 2500 diesel 4WD. This premium lift kit is meticulously engineered to optimize both performance and stability, empowering your truck to conquer any terrain. Achieve an aggressive stance and effortless handling, with clearance for up to 38-inch tires, making it ideal for off-road adventures or daily driving.

The centerpiece of this lift kit is the long arm conversion, featuring robust tubular lower control arms designed to minimize caster change during wheel travel. This innovation translates to improved steering control, providing a more responsive driving experience whether on rugged trails or smooth highways. Additionally, the kit incorporates factory triangulation, enhancing the overall stability of your suspension system.

Included in the kit are diesel-specific Pro-Ride coil springs, which feature a progressive rate design for a smooth, reliable ride across diverse surfaces. Crafted from high tensile steel, these springs ensure maximum durability without the risk of premature coil bind. Steering correction is seamlessly addressed with a forged drop pitman arm and a heavy-duty track bar drop bracket, both of which help maintain proper steering angles and axle positioning.

Moreover, the BDS632FS lift kit comes equipped with either NX2 or FOX 2.0 Performance shocks, specifically calibrated to enhance off-road agility while providing a plush ride. Install this comprehensive lift kit and experience a transformation like no other—achieving an impressive lift height of 8 inches in the front and 5 inches in the rear.

Reinforce your Dodge RAM 2500’s performance with the BDS Suspension BDS632FS, ensuring robust capabilities and superior ride quality for every journey.
