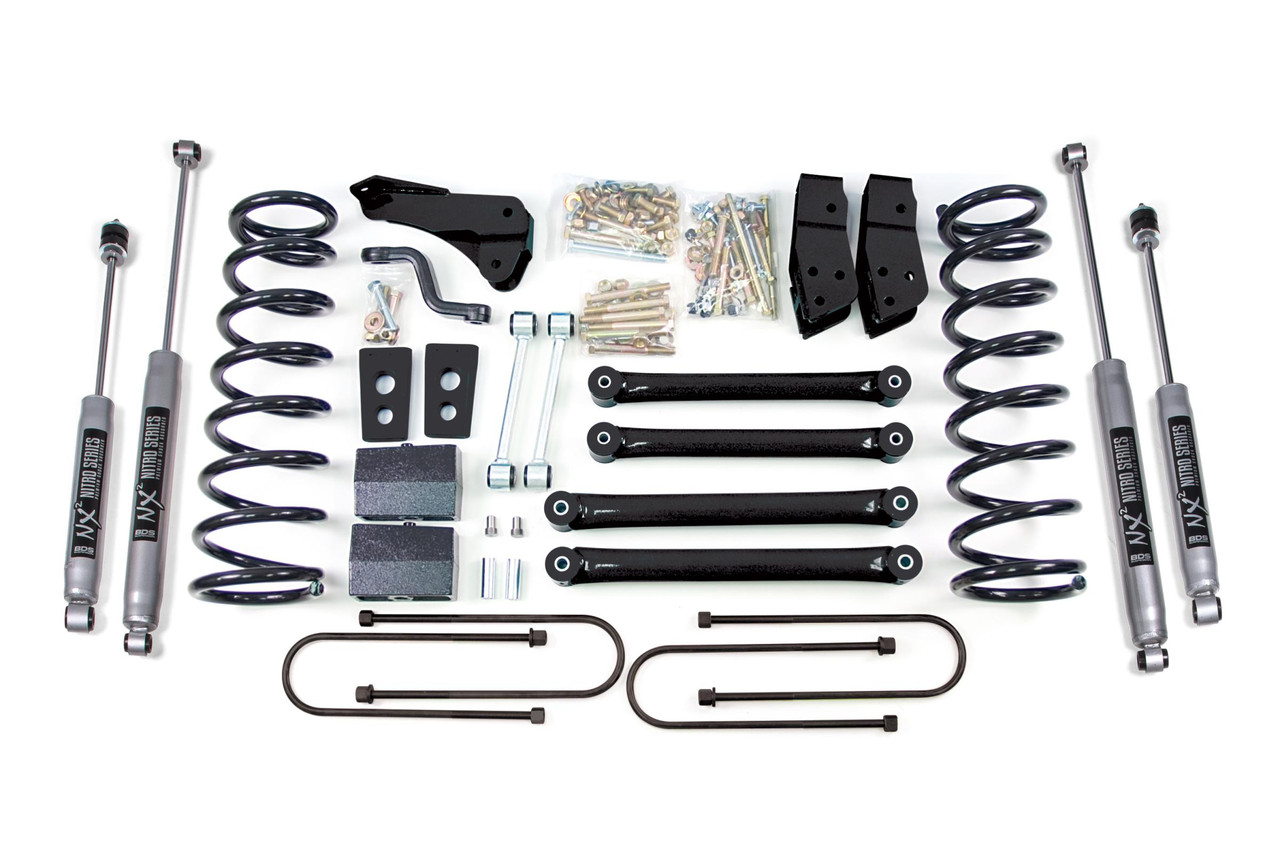

BDS SUSPENSION BDS619H 4 INCH LIFT KIT DODGE RAM 2500 POWER WAGON 2008 4WD 4 INCH BLOCK 3.5 INCH AXLE NX2 NITRO

Improve the ride and style of your 2008 Dodge RAM 2500 Power Wagon truck with this 4-inch lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 36 inch Tires.

BDS engineered new lower control arms are longer than stock to rotate the axle for proper alignment and built a relocation mounting bracket to flatten out the angle of the upper control arm to maintain your factory handling characteristics.

Up front the lift kit includes gas-specific Pro-Ride coil springs, all four control arms plus relocation bracket, forged drop pitman arm and track bar bracket for steering correction, bump stops, sway bar links, and precision tuned NX2 or FOX 2.0 nitrogen charged shocks. In the rear this kit utilizes heavy duty cast steel blocks, longer u-bolts, and a matching set of NX2 Nitro or FOX 2.0 Performance shocks.

Pro-Ride Coil Springs

A pair of full-length, gas-specific, progressive rate Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains. Manufactured from high tensile steel, our direct OE replacement coil springs are engineered with properly sized wire diameter. This results in maximum reliability without premature coil bind.

Steering Correction

To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.

• Front Lift Method: Coil Spring
• Rear Lift Method: Leaf Spring
• Shocks Included: Yes
• Front Lift Height: 4 inch
• Rear Lift Height: 4 inch

1. These vehicle were manufactured with two different diameter rear axles. You will need to measure the diameter of your rear axle before ordering. It should be 3-1/2 inch or 4 inch in diameter.
2. May require front exhaust modification to clear front driveshaft at full droop.

• Tubular short arms improve strength, handling and caster control
• Heavy duty control arm brackets maintain proper suspension geometry
• Front high strength progressive rate coil springs for a great ride on any terrain
• Front track bar relocation bracket to re-position axle
• Forged drop pitman arm to correct steering angles
• Front sway bar correction to maintain handling performance
• BDS NX2 gas or FOX performance series Internal Floating Piston gas shocks to improved ride and offroad performance

Rear Lift Option Block Kit

• Includes a rear block and u-bolt kit to achieve a 4 inch rear lift.
• Blocks are made from cast iron for strength.
• Tapered for correct pinion angle.
• Steel pin and hole are offset to restore axle position.

Axle Diameter 3.5 Inch

The Dodge Ram truck has 2 different rear axle diameters. Please measure your rear axle and select the appropriate rear kit for your vehicle.

Shock Option NX2 Nitro Series

• Nitrogen-charged
• Twin-tube design
• 10-stage velocity-sensitive valving
• Dual-welded ends for increased strength
• 1-3/8-inch high-flow piston
• Self-lubricating seals
• Silver powder coat finish

Kit Components:

• Includes one BDS012408, 03-up Dodge 3/4ton 4 Inch Rear w/3-1/2 axle, UPC Code 658848612376
• Includes one BDS012621, 2008 Dodge 6 Inch Box Kit, UPC Code 658848612802
• Includes one BDS032601, 03-12 Dodge Ram 2500(gas) 6 Inch Coil Kit, UPC Code 658848616411
• Includes one BDS122401, 05-13 Power Wagon Sway Bar Links, UPC Code 658848619467
• Includes two BDS85751, Shock- 30.00 x 17.25 x 2-3/8 - S50/EB2, UPC Code 711745609617
• Includes two BDS85761, Shock- 33.00 x 19.25 x 2-3/8 - EB1/EB1, UPC Code 711745609709

Elevate your 2008 Dodge RAM 2500 Power Wagon with the BDS619H 4-inch Lift Kit, meticulously engineered to significantly enhance both performance and aesthetics. This comprehensive kit is designed to provide optimal clearance for tires up to 36 inches, making it the perfect upgrade for off-road enthusiasts and on-road drivers alike.

The BDS619H kit features precision-engineered components including extended lower control arms that rotate the axle for perfect alignment, complemented by a relocation mounting bracket. This combination smooths out the angle of the upper control arm, ensuring your vehicle maintains its excellent handling characteristics even after the lift.

At the forefront, premium gas-specific Pro-Ride coil springs deliver an ideal lift height and a superior ride across a variety of terrains. Constructed from high-tensile steel, these coil springs are a direct OE replacement, engineered to deliver maximum reliability and prevent premature coil bind. Additionally, the inclusion of BDS NX2 Nitro or FOX 2.0 shocks guarantees enhanced performance and comfort, absorbing any bumps along the way.

The rear lift utilizes strong cast steel blocks paired with longer u-bolts, ensuring durability and correct pinion angles. to optimize steering geometry, a forged drop pitman arm and heavy-duty track bar relocation bracket are included to refine the steering response and recenter the front axle effectively.

This lift kit does not compromise on quality; every component, from tubular short arms to sway bar links, is designed to enhance strength and control. With this lift kit, you will achieve not only a commanding stance but also improved handling and off-road capability. Upgrade your Dodge RAM 2500 Power Wagon with the BDS619H Lift Kit and experience the difference in performance and style.
