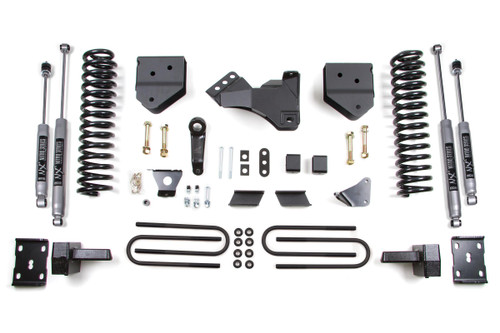

BDS SUSPENSION BDS588H 4 INCH LIFT KIT FORD F250/F350 SUPER DUTY 11-16 4WD DIESEL BLOCK KIT NX2 NITRO SHOCKS

Increase ground clearance on your 2011-2016 Ford F250 and F350 Super Duty diesel powered truck with this 4-inch lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35 inch tires.

Up front the lift kit includes diesel-specific Pro-Ride coil springs, heavy-duty radius arm drop brackets, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets and precision tuned nitrogen charged shocks.

In the rear this kit utilizes a high-strength fabricated lift block, u-bolt flip kit for max ground clearance, brake line brackets and a matching set of NX2 Nitro or FOX Performance shocks.

Pro-Ride Coil Springs

A pair of full-length, diesel-specific, Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.

Steering Correction
To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.

Features & Benefits

• Easy, 100 percent Bolt-on installation
• Pro-Ride dual rate coil springs provide a remarkable ride through any terrain
• Heavy duty radius arm drop brackets provide correct caster and will maintain your stock driving characteristics.
• Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling
• Steel lift blocks with built-in bump stop provide level stance from front to rear
• Standard NX2 Nitro shocks with vehicle-specific valving for better control
• Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road

Recommended Tires & Wheels

• (Trimming may be required)
• 35 x 12.5 with 17 x 9 and 4.5 in. Backspace
• 35 x 12.5 with 18 x 9 and 4.5 in. Backspace
• 35 x 12.5 with 20 x 9 and 4.5 in. Backspace

Rear Lift Option
Block Kit

• Blocks are made from cast iron for strength.
• Tapered for correct pinion angle.
• Steel pin and hole are offset to restore axle position.

Shock Option

NX2 Nitro Series

• Nitrogen-charged
• Twin-tube design
• 10-stage velocity-sensitive valving
• Dual-welded ends for increased strength
• 1-3/8-inch high-flow piston
• Self-lubricating seals
• Silver powder coat finish

Kit Components:

• Includes one BDS013413, 11 Ford F250/350 4 Inch Box kit, UPC Code 658848613441
• Includes one BDS013519, 2005-up Ford F250/F350 5in Rear Block, UPC Code 658848613625
• Includes one BDS033411, 2005-2024 Ford F250/F350 Superduty 4 inch Coil Kit - Diesel, UPC Code 658848616527
• Includes two BDS85700, Shock- 25.20 x 15.20 x 2-3/8 - S50/EB2, UPC Code 711745609495
• Includes two BDS85760, Shock- 33.00 x 19.25 x 2-3/8 - EB1/EB1, UPC Code 711745609693

Elevate your 2011-2016 Ford F250 or F350 Super Duty diesel truck with the BDS588H 4-Inch Lift Kit, expertly engineered to enhance your vehicle’s stance, performance, and capability. This comprehensive lift kit allows for increased ground clearance, accommodating tires up to 35 inches, and is designed with a focus on both on-road comfort and off-road capability.

The kit features diesel-specific Pro-Ride coil springs, ensuring a smooth and predictable ride across various terrains. Heavy-duty radius arm drop brackets and a forged drop pitman arm work in tandem to optimize steering geometry, maintaining precise handling and control. The inclusion of a track bar relocation bracket further ensures that your axle remains centered, enhancing stability during travel.

At the rear, a fabricated lift block paired with a u-bolt flip kit maximizes ground clearance while maintaining structural integrity. Brake line brackets and a selection of NX2 Nitro or FOX Performance shocks are also included, offering vehicle-specific valving that caters to your individual driving style, whether on trails or highways.

Installation is a breeze with a 100% bolt-on design, and the components are engineered for durability and performance in mind. The high-strength steel lift blocks feature a built-in bump stop for a level stance and peace of mind on all types of terrain.

This lift kit is not merely a cosmetic upgrade; it transforms your truck into a more capable off-roading machine while ensuring everyday drivability. For those looking to conquer any adventure that comes their way, the BDS588H Lift Kit stands out as the ultimate enhancement for your Ford Super Duty. Embrace improved performance, unmatched capability, and rugged style with BDS Suspension.
