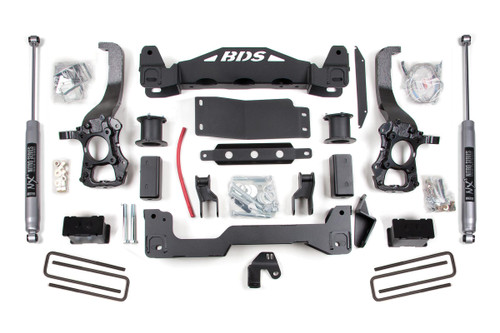

BDS SUSPENSION BDS576H 4 INCH LIFT KIT FORD F150 04-08 4WD NX2 NITRO SHOCKS
- SKU:
- BDS576H
- MPN:
- BDS576H
- Shipping:
- Calculated at Checkout
Description
Upgrade the look of your 2004-2008 Ford F150 4WD trucks with a 4-inch suspension lift kit by BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35 inch tires.
This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics.
Up front the kit utilizes high-arched 1/4-inch thick steel crossmembers, top mounted strut spacers, multipiece differential relocation brackets and skidplate designed for offroad protection. Steering geometry is corrected at the new taller ride height with a pair of massive CNC-machined ductile iron steering knuckles.
These combined with the provided sway bar relocation brackets, brake line brackets, alignment cam bolts, supplied hardware and more provide a comprehensive front suspension lift ready for use and abuse.
In the rear BDS utilizes high strength cast steel lift blocks and longer u-bolts to lift and level the stance along and NX2 Nitro or optional FOX 2.0 Performance Series shocks.
High Clearance Crossmembers
BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.
Heavy Duty Steering Knuckles
BDS corrects steering geometry at the new taller ride height using a pair of high-strength, CNC machined ductile cast iron steering knuckle design to work with replacement tie rod ends to maintain steering angles for proper function and ESC compatibility.
- Front Lift Method: Cross-Member
- Rear Lift Method: Block
- Shocks Included: Yes
- Front Lift Height: 4 inch
- Rear Lift Height: 2 inch
- Supercrew models with 4 bed do not require the add-a-leaf 113219.
- All wheel drive models will require front driveshaft modification.
- Stock 17s will not fit back on vehicle. Stock 18s and 20s do fit with stock tires.
- Rear leaf springs 003509 may be used by removing the factory block.
- Although unusual, a 123609 rear driveshaft spacer may be required.
- Will not fit HD models (7 lug).
- High clearance crossmembers improve strength and offroad capability
- Heavy duty steering knuckles to correct steering geometry and maintain ESC system compatibility
- Top mounted strut spacers to provide lift and install easily
- Differential skid plate for improved offroad protection
- Rear lift blocks and u-bolts to lift and level the stance
- Standard NX2 Nitro shocks with vehicle-specific valving for better control
- Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road
Rear Shock Option NX2 Nitro Series
- Nitrogen-charged
- Twin-tube design
- 10-stage velocity-sensitive valving
- Dual-welded ends for increased strength
- 1-3/8-inch high-flow piston
- Self-lubricating seals
- Silver powder coat finish
Kit Components
Includes one BDS013209, 04-08 Ford F150 2 Inch Rear Kit, UPC Code 658848613151
Includes one BDS023432, 04-08 Ford F150 HC Box Kit (1of4), UPC Code 658848615759
Includes one BDS023630, 04-08 Ford F150 HC (1of4), UPC Code 658848615872
Includes one BDS023631, 04-08 Ford F150 HC (2of4), UPC Code 658848615889
Includes one BDS023633, 04-08 Ford F150 HC (4of4), UPC Code 658848615902
Includes two BDS85828, Shock- 30.95 x 18.20 x 2-3/8 - EB1/EB1, UPC Code 711745609877
Kit Components:
Includes one BDS013209, 04-08 Ford F150 2 Inch Rear Kit, UPC Code 658848613151 Includes one BDS023432, 04-08 Ford F150 HC Box Kit (1of4), UPC Code 658848615759 Includes one BDS023630, 04-08 Ford F150 HC (1of4), UPC Code 658848615872 Includes one BDS023631, 04-08 Ford F150 HC (2of4), UPC Code 658848615889 Includes one BDS023633, 04-08 Ford F150 HC (4of4), UPC Code 658848615902 Includes two BDS85828, Shock- 30.95 x 18.20 x 2-3/8 - EB1/EB1, UPC Code 711745609877
Enhance your 2004-2008 Ford F150 4WD truck’s performance and appearance with the BDS Suspension BDS576H 4 Inch Lift Kit. This comprehensive 4-inch suspension lift kit is designed to elevate your ride, offering ample clearance for tires up to 35 inches, while also improving both stance and off-road capabilities.Built with BDS’s renowned high-clearance design, the lift kit boasts increased ground clearance, unparalleled strength, and enhanced off-road protection. Featuring a precise combination of top-mounted strut spacers and heavy-duty 1/4-inch thick steel crossmembers, this kit not only elevates your truck but also ensures optimal suspension and steering geometry for impressive on-road handling.
The installation includes multipiece differential relocation brackets and high-strength cast steel lift blocks for the rear, making leveling and lifting a seamless process. The kit comes complete with sway bar relocation brackets, brake line brackets, alignment cam bolts, and additional hardware—everything needed to give your truck an impressive upgrade.
The innovative steering knuckles, crafted from CNC-machined ductile iron, correct steering geometry to maintain proper function and compatibility with electronic stability control systems at the new ride height. For those tackling rough terrains, the robust differential skid plate provides crucial off-road protection.
The standard NX2 Nitro shocks, designed with vehicle-specific valving, deliver superior control on various terrains. For those seeking an exceptional performance upgrade, the optional FOX 2.0 Performance Series shocks are readily available.
Every component of the BDS Suspension lift kit is engineered for durability and efficiency, ensuring your Ford F150 not only looks great but also functions as a formidable off-road vehicle. Embrace adventure with confidence and style with this remarkable lift kit.
