BDS SUSPENSION

BDS SUSPENSION BDS554H 4 INCH LIFT KIT FORD F250/F350 SUPER DUTY 08-10 4WD DIESEL LEAF SPRINGS NX2 NITRO

(No reviews yet) Write a Review
SKU:
BDS554H
MPN:
BDS554H
Shipping:
Calculated at Checkout
  • BDS SUSPENSION BDS554H 4 INCH LIFT KIT FORD F250/F350 SUPER DUTY 08-10 4WD DIESEL LEAF SPRINGS NX2 NITRO
  • BDS SUSPENSION BDS554H 4 INCH LIFT KIT FORD F250/F350 SUPER DUTY 08-10 4WD DIESEL LEAF SPRINGS NX2 NITRO
$2,219.35

Description

Increase ground clearance on your 2008-2010 Ford F250 and F350 Super Duty diesel truck with this 4-inch lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35 inch Tires.

Up front the lift kit includes diesel-specific Pro-Ride coil springs, heavy-duty radius arm drop brackets, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets and precision tuned nitrogen charged shocks.

In the rear this kit utilizes a high-strength lift block, longer u-bolts and a matching set of NX2 Nitro or FOX Performance shocks.

Pro-Ride Coil Springs

A pair of full-length, diesel-specific, Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.

Steering Correction

To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.

  • Front Lift Method: Coil Spring
  • Rear Lift Method: Block
  • Shocks Included: Yes
  • Front Lift Height: 4 inch
  • Rear Lift Height: 5 inch
  1. If equipped with 2-piece driveshaft, a driveshaft alignment kit may be required
  • Easy, 100 percent Bolt-on installation
  • Pro-Ride dual rate coil springs provide a remarkable ride through any terrain
  • Heavy duty radius arm drop brackets provide correct caster and will maintain your stock driving characteristics.
  • Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling
  • Steel lift blocks with built-in bump stop provide level stance from front to rear
  • Standard NX2 Nitro shocks with vehicle-specific valving for better control
  • Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road

Rear Lift Option

Leaf Springs

  • Eliminates any need for a lift block.
  • Reduces axle wrap and creates a more controlled and stable feel.
  • Multi-leaf progressive design for a smooth ride.
  • Maintains factory payload weight ratings.

Tire Size: 35 x 12.5 Tire Size 2: 35 x 12.5 Wheel Diameter: 18 x 9 Wheel Diameter 2: 20 x 9 Back Spacing: 4.5/4.5

Shock Option NX2 Nitro Series

  • Nitrogen-charged
  • Twin-tube design
  • 10-stage velocity-sensitive valving
  • Dual-welded ends for increased strength
  • 1-3/8-inch high-flow piston
  • Self-lubricating seals
  • Silver powder coat finish

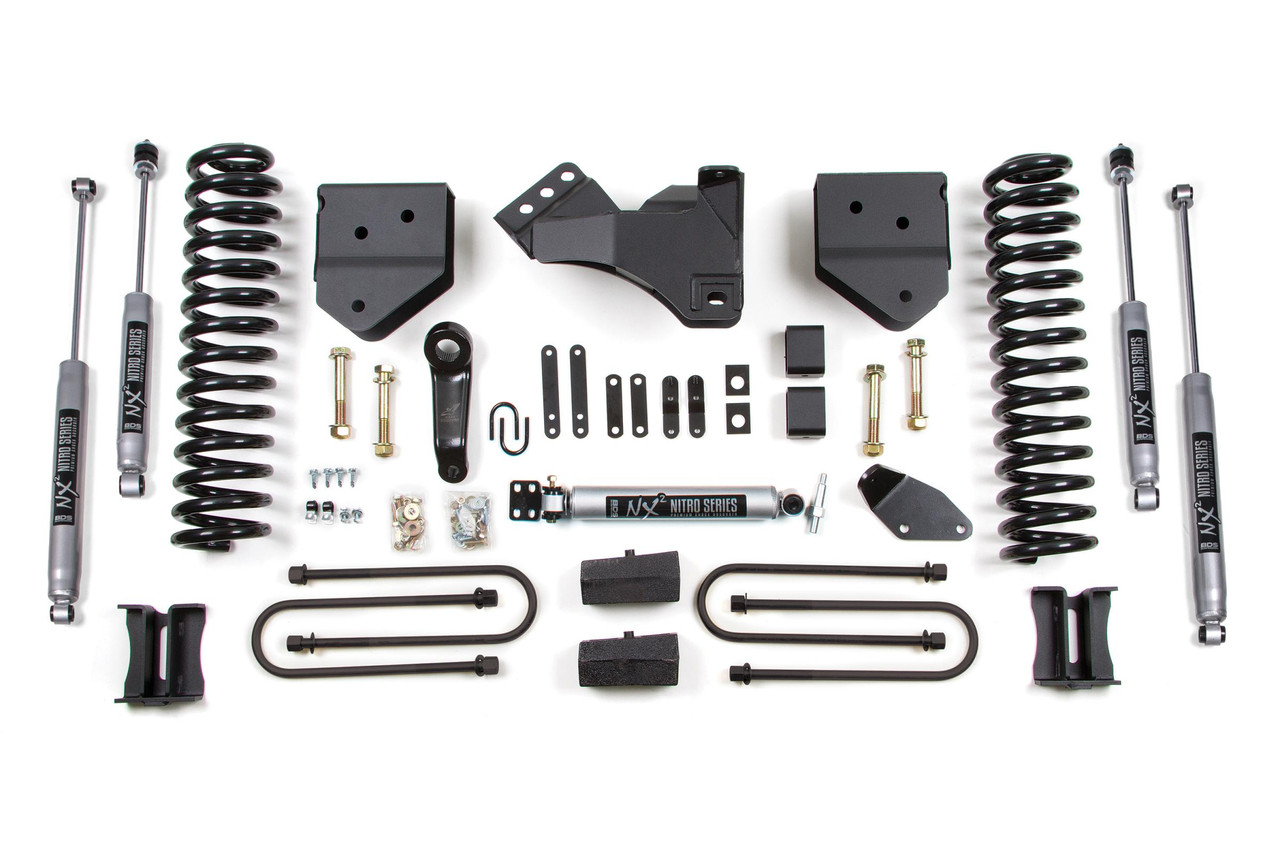

Kit Components:

  • Includes two BDS003629, Ford F250/350 6 Inch Rear Spring, UPC Code 658848611393
  • Includes one BDS013412, 08 Ford F250/350 4 Inch Front Box Kit, UPC Code 658848613434
  • Includes one BDS033411, 2005-2024 Ford F250/F350 Superduty 4 inch Coil Kit - Diesel, UPC Code 658848616527
  • Includes one BDS85415, Steering Stab 23.9 x 14.3 - EB1/EB1, UPC Code 711745609112
  • Includes two BDS85700, Shock- 25.20 x 15.20 x 2-3/8 - S50/EB2, UPC Code 711745609495
  • Includes two BDS85760, Shock- 33.00 x 19.25 x 2-3/8 - EB1/EB1, UPC Code 711745609693
  • Includes four UBT4032, 5/8 x 3-5/8 x 10 Round U-bolt, UPC Code 711745613300

Elevate your driving experience with the BDS Suspension BDS554H 4 Inch Lift Kit, specifically engineered for the 2008-2010 Ford F250 and F350 Super Duty diesel trucks. This premium lift kit not only increases ground clearance by four inches but also enhances your vehicle's stance and performance, allowing for the accommodation of larger 35-inch tires.

The kit includes everything necessary for an easy, 100 percent bolt-on installation. Up front, you'll find diesel-specific Pro-Ride coil springs that deliver a smooth and predictable ride across diverse terrains. These heavy-duty components, including radius arm drop brackets, a forged drop pitman arm, and a track bar bracket, optimize steering correction and maintain proper handling. Sway bar relocation and brake line brackets are thoughtfully included to ensure seamless integration with your truck's existing systems.

In the rear, high-strength lift blocks, longer u-bolts, and a matching set of NX2 Nitro or optional FOX Performance shocks provide outstanding performance and stability. The Pro-Ride dual rate coil springs eliminate the need for a lift block, reducing axle wrap while delivering a smooth ride and maintaining factory payload weight ratings.

This lift kit is designed not just for serious off-road enthusiasts but also for those who appreciate daily drivability. The included NX2 Nitro shocks, with their 10-stage velocity-sensitive valving and high-flow piston, give exceptional control over a range of driving conditions. For enhanced performance, consider upgrading to FOX 2.0 Performance Series shocks.

Transform your F250 or F350 into a powerful off-road machine that can tackle any trail while still delivering comfort and stability on the highway. The BDS554H Lift Kit is your gateway to an unbeatable driving experience.

View AllClose

Warranty Information

Lifetime Replacement Warranty Extends to Cover all BDS Hard Parts
