BDS SUSPENSION BDS554FS 4 INCH LIFT KIT FORD F250/F350 SUPER DUTY 08-10 4WD DIESEL LEAF SPRINGS FOX 2.0 PERFORMANCE

Increase ground clearance on your 2008-2010 Ford F250 and F350 Super Duty diesel truck with this 4-inch lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35 inch Tires.

Up front the lift kit includes diesel-specific Pro-Ride coil springs, heavy-duty radius arm drop brackets, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets and precision tuned nitrogen charged shocks.

In the rear this kit utilizes a high-strength lift block, longer u-bolts and a matching set of NX2 Nitro or FOX Performance shocks.

Pro-Ride Coil Springs

A pair of full-length, diesel-specific, Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.

Steering Correction

To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.

• Front Lift Method: Coil Spring
• Rear Lift Method: Block
• Shocks Included: Yes
• Front Lift Height: 4 inch
• Rear Lift Height: 5 inch

1. If equipped with 2-piece driveshaft, a driveshaft alignment kit may be required

• Easy, 100 percent Bolt-on installation
• Pro-Ride dual rate coil springs provide a remarkable ride through any terrain
• Heavy duty radius arm drop brackets provide correct caster and will maintain your stock driving characteristics.
• Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling
• Steel lift blocks with built-in bump stop provide level stance from front to rear
• Standard NX2 Nitro shocks with vehicle-specific valving for better control
• Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road

Rear Lift Option

Leaf Springs

• Eliminates any need for a lift block.
• Reduces axle wrap and creates a more controlled and stable feel.
• Multi-leaf progressive design for a smooth ride.
• Maintains factory payload weight ratings.

Tire Size: 35 x 12.5 Tire Size 2: 35 x 12.5 Wheel Diameter: 18 x 9 Wheel Diameter 2: 20 x 9 Back Spacing: 4.5/4.5

Shock Option

FOX 2.0 Performance Series

• 2-inch Impact extruded aluminum body
• Internal floating piston (Internal Floating Piston) monotube design
• CNC machined 6061-T6 aluminum mounting ends
• Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• Long-lasting clear anodized finish

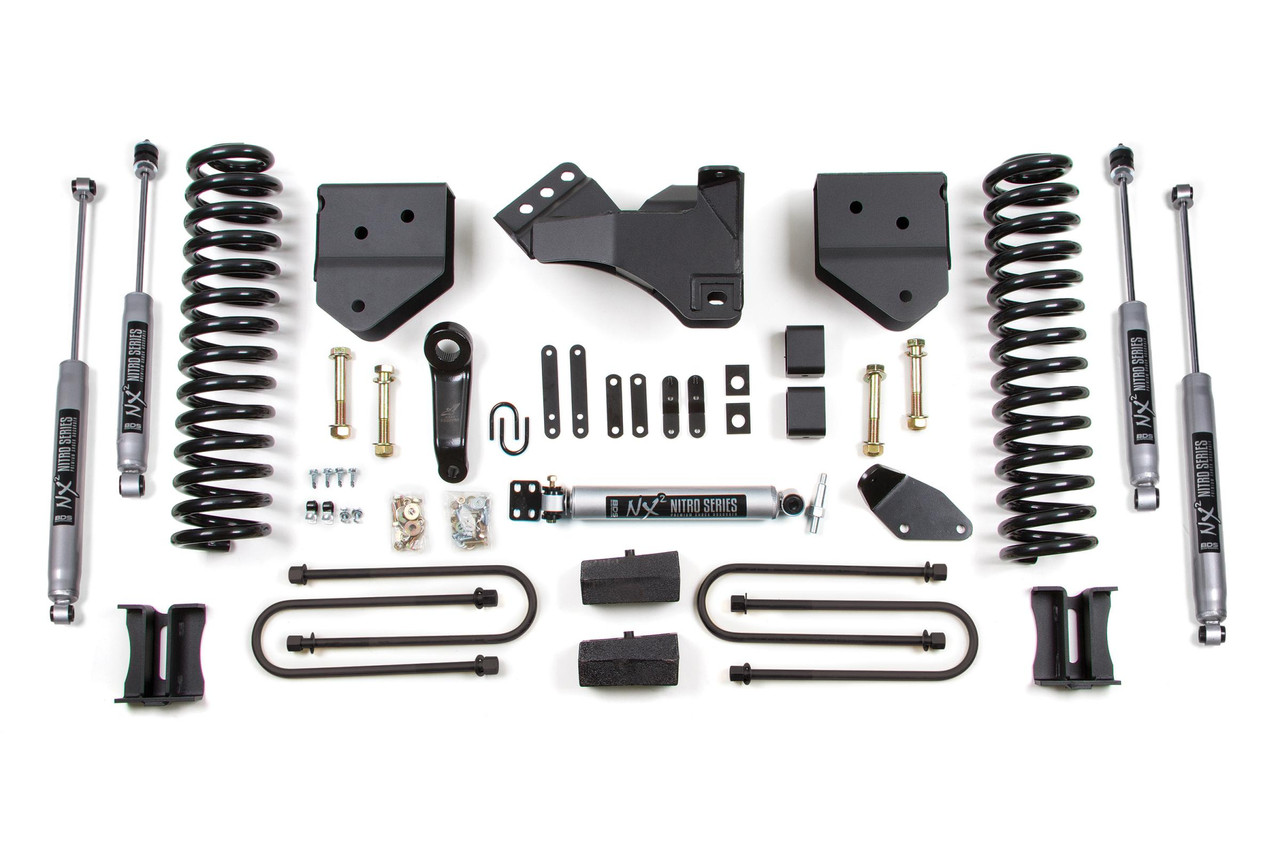

Kit Components:

• Includes two BDS003629, Ford F250/350 6 Inch Rear Spring, UPC Code 658848611393
• Includes one BDS013412, 08 Ford F250/350 4 Inch Front Box Kit, UPC Code 658848613434
• Includes one BDS033411, 2005-2024 Ford F250/F350 Superduty 4 inch Coil Kit - Diesel, UPC Code 658848616527
• Includes one BDS85415, Steering Stab 23.9 x 14.3 - EB1/EB1, UPC Code 711745609112
• Includes two FOX98224700, Fox 2.0 Shock 25.65 x 16.05 x 2- S50/EB1
• Includes two FOX98224760, Fox 2.0 Shock 33.85 x 20.75 x 2- EB1/EB1
• Includes four UBT4032, 5/8 x 3-5/8 x 10 Round U-bolt, UPC Code 711745613300

Transform your 2008-2010 Ford F250 or F350 Super Duty diesel truck with the BDS Suspension BDS554FS 4-Inch Lift Kit. Designed to elevate both your vehicle’s performance and aesthetic, this comprehensive lift kit offers an impressive ground clearance increase, allowing for the fitment of tires up to 35 inches. Elevate your off-road adventures and everyday drive with confidence.

The kit features diesel-specific Pro-Ride coil springs that deliver not only the desired lift height but also a smooth and reliable ride through a variety of terrains. Essential components such as heavy-duty radius arm drop brackets and a forged drop pitman arm ensure a seamless steering correction, maintaining alignment and enhancing handling capabilities.

For the rear, high-strength lift blocks and extended u-bolts create a balanced stance, paired with premium shocks—either the standard NX2 Nitro or an upgraded option of FOX 2.0 Performance Series shocks. With a robust construction and application-specific valving, these shocks provide optimal control and comfort, regardless of the driving conditions.

Installation is straightforward, featuring a 100% bolt-on design that minimizes the need for modifications. The purpose-built features retain your truck's stock driving characteristics while enhancing its off-road capabilities. Additionally, you have the flexibility to choose rear leaf springs which reduce axle wrap, delivering a stable and controlled ride while maintaining factory payload ratings.

Whether hitting rugged trails or cruising on highways, the BDS554FS Lift Kit is engineered for performance and durability, making it an essential upgrade for any serious Ford Super Duty truck owner. Elevate your ride and experience the perfect blend of style and function today.
