BDS SUSPENSION

BDS SUSPENSION BDS546H 4 INCH LIFT KIT FORD F250/F350 SUPER DUTY 08-10 4WD DIESEL BLOCK KIT WITHOUT FACTORY OVERLOAD NX2 NITRO

(No reviews yet) Write a Review
SKU:
BDS546H
MPN:
BDS546H
Shipping:
Calculated at Checkout
  • BDS SUSPENSION BDS546H 4 INCH LIFT KIT FORD F250/F350 SUPER DUTY 08-10 4WD DIESEL BLOCK KIT WITHOUT FACTORY OVERLOAD NX2 NITRO
  • BDS SUSPENSION BDS546H 4 INCH LIFT KIT FORD F250/F350 SUPER DUTY 08-10 4WD DIESEL BLOCK KIT WITHOUT FACTORY OVERLOAD NX2 NITRO
$1,852.70

Description

Increase ground clearance on your 2008-2010 Ford F250 and F350 Super Duty diesel truck with this 4-inch lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35 inch Tires.

Up front the lift kit includes diesel-specific Pro-Ride coil springs, heavy-duty radius arm drop brackets, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets and precision tuned nitrogen charged shocks.

In the rear this kit utilizes a high-strength lift block, longer u-bolts and a matching set of NX2 Nitro or FOX Performance shocks.

Pro-Ride Coil Springs

A pair of full-length, diesel-specific, Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.

Steering Correction

To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.

  • Front Lift Method: Coil Spring
  • Rear Lift Method: Block
  • Shocks Included: Yes
  • Front Lift Height: 4 inch
  • Rear Lift Height: 5 inch
  1. If equipped with 2-piece driveshaft, a driveshaft alignment kit may be required
  • Easy, 100 percent Bolt-on installation
  • Pro-Ride dual rate coil springs provide a remarkable ride through any terrain
  • Heavy duty radius arm drop brackets provide correct caster and will maintain your stock driving characteristics.
  • Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling
  • Steel lift blocks with built-in bump stop provide level stance from front to rear
  • Standard NX2 Nitro shocks with vehicle-specific valving for better control
  • Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road

Rear Lift Option Block Kit without Factory Overload

  • Determine if your truck was manufactured with or without top-mounted overload springs on the rear leaf springs.
  • Blocks made of steel for high strength.
  • Designed to provide correct pinion angles.

Tire Size: 35 x 12.5 Tire Size 2: 35 x 12.5 Wheel Diameter: 18 x 9 Wheel Diameter 2: 20 x 9 Back Spacing: 4.5/4.5

Shock Option NX2 Nitro Series

  • Nitrogen-charged
  • Twin-tube design
  • 10-stage velocity-sensitive valving
  • Dual-welded ends for increased strength
  • 1-3/8-inch high-flow piston
  • Self-lubricating seals
  • Silver powder coat finish

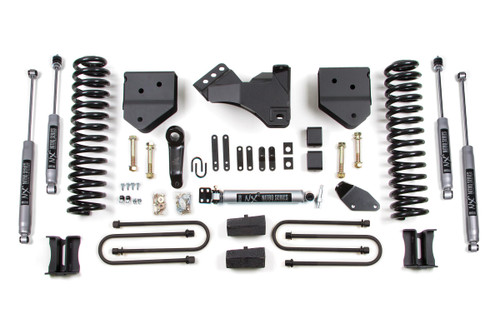

Kit Components:

  • Includes one BDS013412, 08 Ford F250/350 4 Inch Front Box Kit, UPC Code 658848613434
  • Includes one BDS013519, 2005-up Ford F250/F350 5in Rear Block, UPC Code 658848613625
  • Includes one BDS033411, 2005-2024 Ford F250/F350 Superduty 4 inch Coil Kit - Diesel, UPC Code 658848616527
  • Includes one BDS85415, Steering Stab 23.9 x 14.3 - EB1/EB1, UPC Code 711745609112
  • Includes two BDS85700, Shock- 25.20 x 15.20 x 2-3/8 - S50/EB2, UPC Code 711745609495
  • Includes two BDS85760, Shock- 33.00 x 19.25 x 2-3/8 - EB1/EB1, UPC Code 711745609693

Transform your 2008-2010 Ford F250 or F350 Super Duty diesel truck into an off-road beast with the BDS Suspension BDS546H 4-Inch Lift Kit. This comprehensive lift kit is engineered to enhance your vehicle's stance, performance, and overall capability while providing ample clearance for impressive 35-inch tires.

At the heart of this kit are Pro-Ride coil springs specifically designed for diesel models, delivering a remarkable balance of lift height and ride comfort across diverse terrains. The heavy-duty radius arm drop brackets and forged drop pitman arm ensure optimal steering geometry, while the track bar relocation bracket keeps the front axle centered during suspension travel, enhancing handling and stability.

The rear of the kit features a robust lift block and longer u-bolts, paired with already impressive NX2 Nitro shocks that are finely tuned with vehicle-specific valving for superior control. The combination of these components guarantees a smooth ride and superior articulation on any surface.

This lift kit allows for a straightforward, 100% bolt-on installation, so you can upgrade your truck's capabilities without extensive modifications. The designed-in bump stops and steel lift blocks ensure a level stance, providing a professional look while maintaining the stock driving characteristics you expect from your Super Duty.

For those looking for an upgrade in shock performance, consider the FOX 2.0 Performance Series shocks. Crafted for both on-road and off-road applications, these nitrogen-charged shocks promise heightened performance through advanced twin-tube design and superior velocity-sensitive valving.

Take your Ford F250 or F350 to new heights—literally—with the BDS Suspension BDS546H 4-Inch Lift Kit and experience an unparalleled combination of style, functionality, and performance.

View AllClose

Warranty Information

Lifetime Replacement Warranty Extends to Cover all BDS Hard Parts
