BDS SUSPENSION BDS501H 4 INCH LIFT KIT FORD F100/F150 80-96 4WD 2 INCH BLOCK KIT NX2 NITRO

Build your dream truck and take your Ford 1980-1983 F100 and 1980-1996 F150 4WD truck to new heights with a 4-inch suspension lift kit by BDS. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 33 inch Tires.

Up front the lift kit includes Pro-Ride coil springs, axle pivot relocation brackets, radius arm drop brackets, forged pitman arm for steering correction and precision tuned NX2 nitrogen charged shocks.

In the rear the base kit utilizes a high-strength lift block, longer u-bolts and a matching set of NX2 Nitro shocks.

Pro-Ride Coil Springs

A pair of full-length, vehicle-specific, Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.

• Front Lift Method: Coil Spring
• Rear Lift Method: Leaf Spring
• Shocks Included: Yes
• Front Lift Height: 4 inch
• Rear Lift Height: 2 inch

1. Front end alignment required. Alignment cams may be required.
2. 123401 recommended if equipped with a front anti-sway bar. Ford produced 3 different styles of sway bar systems between 1980 and 1996. In extremely rare cases, modification may be required.
3. Extended lines required for all 4-6 inch lifts.
4. Does not fit F150 models without power steering.

• Easy, Bolt-on installation
• Pro-Ride dual rate coil springs ride smooth through any terrain
• Heavy duty steel drop brackets for proper suspension geometry
• Cast steel blocks provide level stance from front to rear
• NX2 Nitro shocks with vehicle-specific valving for better control

Rear Lift Options Block Kit

• Blocks are made from cast iron for strength.
• Tapered for correct pinion angle.
• Steel pin and hole are offset to restore axle position.

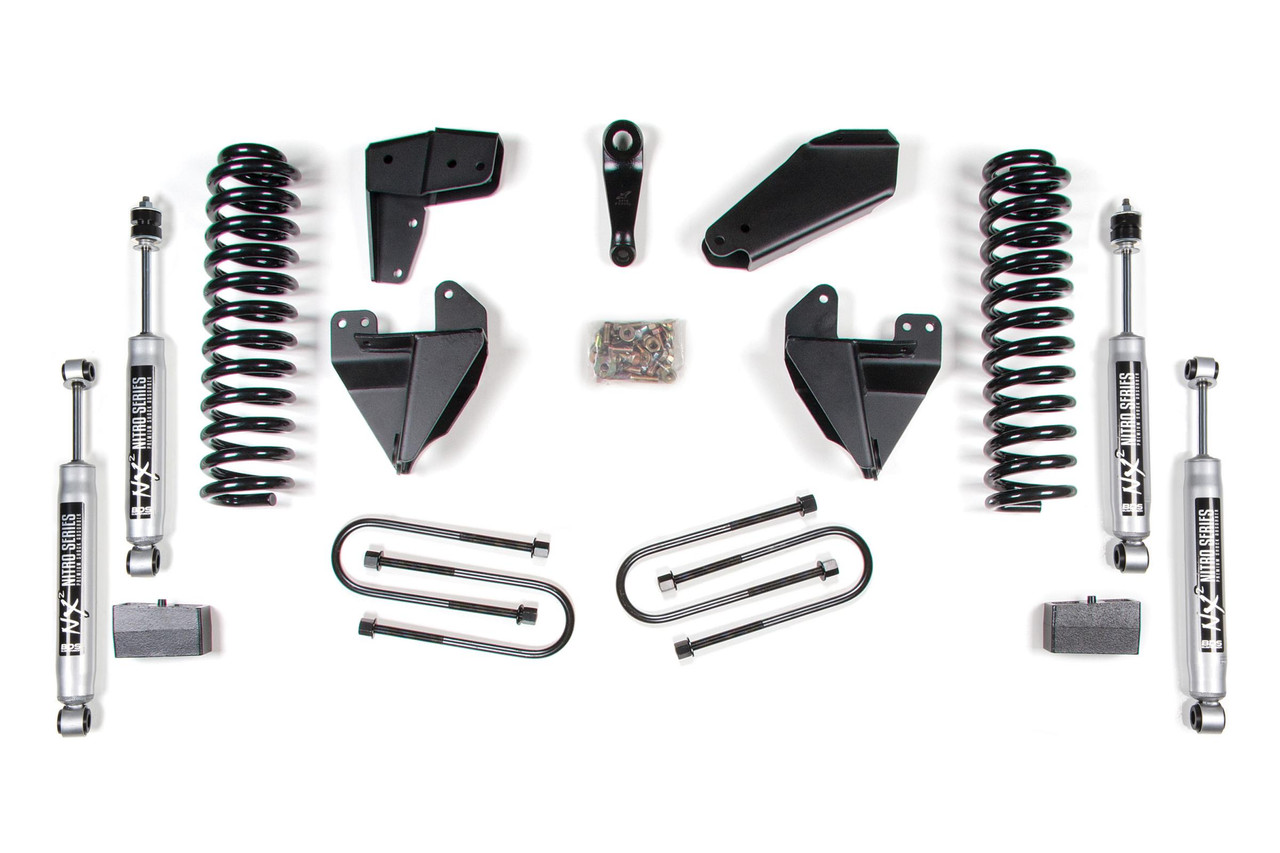

Kit Components:

• Includes one BDS013001, 80-96 Ford F150 Front Box Kit, UPC Code 658848612918
• Includes one BDS033401, 80-96 Ford F150/Bronco 4 Inch Coil Kit, UPC Code 658848616497
• Includes one BDS063209, Ford F150 2 Inch Block & U-bolt Kit, UPC Code 658848617036
• Includes two BDS85660, Shock- 29.80 x 17.60 x 2-3/8 - EB1/EB1, UPC Code 711745609471
• Includes two BDS85800, Shock- 20.40 x 12.65 x 2-3/8 - S1/EB1, UPC Code 711745609808

Elevate your driving experience and enhance your off-road adventures with the BDS Suspension BDS501H 4 Inch Lift Kit specifically designed for Ford F100 and F150 models from 1980 to 1996. This comprehensive lift kit allows your truck to soar to new heights, providing an impressive 4-inch front lift and a 2-inch rear lift, while accommodating tires up to 33 inches for unbeatable ground clearance and aggressive styling.

The package includes Pro-Ride coil springs, expertly engineered to deliver a smooth, controlled ride over a variety of terrains. Complemented by crucial components such as axle pivot relocation brackets, radius arm drop brackets, and a forged pitman arm, this kit guarantees optimal steering precision and suspension geometry. The NX2 nitrogen-charged shocks included with your kit are fine-tuned for enhanced performance, ensuring that every drive is stable and comfortable, whether you’re navigating rugged trails or cruising down the highway.

In the rear, the high-strength lift block is designed for not only increased height but also improved durability, reinforced by longer u-bolts and matching set of NX2 Nitro shocks for consistent handling. All components have been crafted from quality materials to ensure longevity and reliability under various driving conditions.

The BDS501H kit is tailored for easy, bolt-on installation, making it a perfect choice for both DIY enthusiasts and professional installers. Enhance your suspension system with heavy-duty components including cast steel blocks, which maintain a level stance and improve overall driving dynamics. Preparing your Ford for adventure has never been more accessible or exciting. Experience outstanding road control and a powerhouse look that makes your truck stand out. Transform your ride today with the BDS Suspension Lift Kit.
