BDS SUSPENSION
BDS SUSPENSION BDS500H 4 INCH LIFT KIT FORD F100/F150 80-96 4WD 2 INCH LEAF SPRINGS NX2 NITRO
- SKU:
- BDS500H
- MPN:
- BDS500H
- Shipping:
- Calculated at Checkout
Description
Build your dream truck and take your Ford 1980-1983 F100 and 1980-1996 F150 4WD truck to new heights with a 4-inch suspension lift kit by BDS. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 33 inch Tires.
Up front the lift kit includes Pro-Ride coil springs, axle pivot relocation brackets, radius arm drop brackets, forged pitman arm for steering correction and precision tuned NX2 nitrogen charged shocks.
In the rear the base kit utilizes a high-strength lift block, longer u-bolts and a matching set of NX2 Nitro shocks.
Pro-Ride Coil Springs
A pair of full-length, vehicle-specific, Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.
- Front Lift Method: Coil Spring
- Rear Lift Method: Leaf Spring
- Shocks Included: Yes
- Front Lift Height: 4 inch
- Rear Lift Height: 2 inch
- Front end alignment required. Alignment cams may be required.
- 123401 recommended if equipped with a front anti-sway bar. Ford produced 3 different styles of sway bar systems between 1980 and 1996. In extremely rare cases, modification may be required.
- Extended lines required for all 4-6 inch lifts.
- Does not fit F150 models without power steering.
- Easy, Bolt-on installation
- Pro-Ride dual rate coil springs ride smooth through any terrain
- Heavy duty steel drop brackets for proper suspension geometry
- Cast steel blocks provide level stance from front to rear
- NX2 Nitro shocks with vehicle-specific valving for better control
Rear Lift Options
Leaf Springs
- Eliminates any need for a lift block.
- Reduces axle wrap and creates a more controlled and stable feel.
- Multi-leaf progressive design for a smooth ride.
- Maintains factory payload weight ratings.

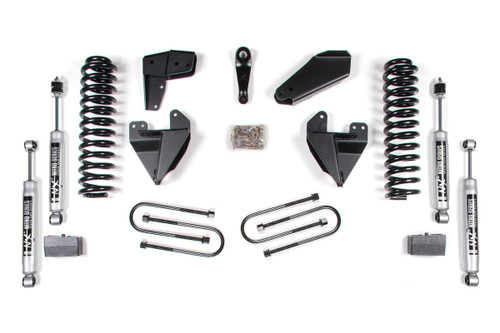

Kit Components:
- Includes two BDS003208, 73-96 Ford F150 2 Inch Rear Spring 3in wide, UPC Code 658848611324
- Includes one BDS013001, 80-96 Ford F150 Front Box Kit, UPC Code 658848612918
- Includes one BDS033401, 80-96 Ford F150/Bronco 4 Inch Coil Kit, UPC Code 658848616497
- Includes two BDS85660, Shock- 29.80 x 17.60 x 2-3/8 - EB1/EB1, UPC Code 711745609471
- Includes two BDS85800, Shock- 20.40 x 12.65 x 2-3/8 - S1/EB1, UPC Code 711745609808
- Includes four UBT4051, 9/16 x 3-1/4 x 10 Round U-bolt, UPC Code 711745613126
The kit features Pro-Ride coil springs, designed to offer a smooth and reliable ride across varied terrains. With a front lift height of 4 inches and a rear lift height of 2 inches, the included coil springs maintain optimal suspension geometry and ensure a level stance. Accompanying the springs are precision-engineered NX2 nitrogen-charged shocks that deliver outstanding control and comfort during any driving conditions.
For enhanced functionality, the lift kit incorporates axle pivot relocation brackets, radius arm drop brackets, and a forged pitman arm, all of which facilitate steering correction and stability. The rear section utilizes a durable lift block system, complemented by longer U-bolts and matching NX2 Nitro shocks to optimize the setup for both performance and safety.
Installation is straightforward with a bolt-on design, allowing for quicker modifications without the need for extensive mechanical experience. Each component is crafted with heavy-duty materials, ensuring longevity and resilience under demanding conditions.
The BDS500H lift kit is more than just a lift; it represents an investment in your vehicle’s capability and style. Elevate your Ford F100 or F150 and enjoy improved handling, increased clearance, and an aggressive stance on the road. Experience the perfect blend of power and precision with BDS Suspension’s expertly designed lift kit.
