BDS SUSPENSION BDS433H 3 INCH LIFT KIT JEEP CHEROKEE XJ 84-01 DANA 35 LEAF SPRINGS NX2 NITRO

Improve the style and handling of your 1984-2001 Jeep Cherokee XJ with this 3-inch lift kit from BDS Suspension. Designed to improve stance, performance, and capability of the Cherokee XJ, this kit includes everything necessary to set your truck up right with clearance for up to 31 inch Tires.

Up front the lift kit includes Glide-Ride coil springs, extended sway bar links, and a transfer case drop to maintain proper driveline angles.

In the rear the kit utilizes a long thin add-a-leaf to add height without creating a harsh ride and a 5/8 inch lift block to level out the Jeep. These kits are rounded out with your choice of specially tuned NX2 nitro series gas shocks or FOX 2.0 Internal Floating Piston performance series gas shocks to offer improved damper performance.

Pro-Ride Coil Springs

A pair of full-length, Jeep-specific, Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains. Manufactured from high tensile steel, our direct OE replacement coil springs are engineered with properly sized wire diameter. This results in maximum reliability without premature coil bind.

• Front Lift Method: Coil Spring
• Rear Lift Method: Add-A-Leaf
• Shocks Included: Yes
• Front Lift Height: 3 inch
• Rear Lift Height: 2.5 inch

1. Verify the make/model of rear axle prior to ordering.
2. Some 1987-90 models came with a Dana 44. Measure and call BDS for proper u-bolt fitment.
3. Transfer case lowering kit is not required for 2WD models.

• ProRide coil springs offer improved ride quality and more articulation
• Transfer case drop maintains proper driveline angles
• Easy, 100 percent Bolt-on installation
• NX2 gas shocks for improved damping
• Allows clearance for 31 inchTires

Rear Axle Option Dana 35

The Jeep Cherokee was produced with two different rear axles (Chrysler 8.25 or Dana 35). You will need to measure your rear u-bolts to ensure that you get the correct new u-bolts. Basically, just measure the diameter of the axle or the I.D. of your rear u-bolts.

Chrysler axles require 3 inch wide u-bolts and Dana 35 axles require 2-3/4 inch wide u-bolts. Some 1987-90 models came with a Dana 44. Measure and call BDS for proper u-bolt fitment.

Leaf Springs

• Eliminates any need for a lift block.
• Reduces axle wrap and creates a more controlled and stable feel.
• Multi-leaf progressive design for a smooth ride.
• Maintains factory payload weight ratings.

Shock Option NX2 Nitro Series

• Nitrogen-charged
• Twin-tube design
• 10-stage velocity-sensitive valving
• Dual-welded ends for increased strength
• 1-3/8-inch high-flow piston
• Self-lubricating seals
• Silver powder coat finish

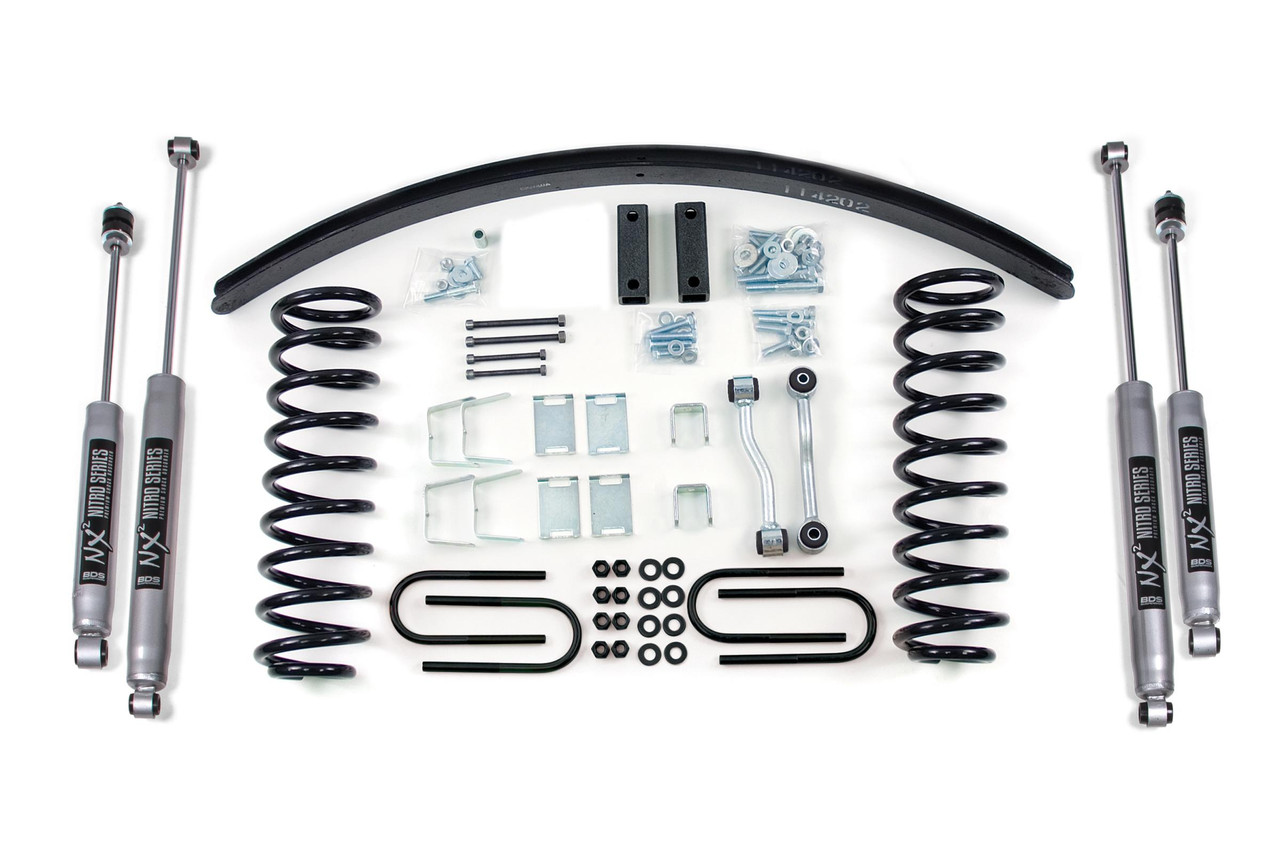

Kit Components:

• Includes two BDS004209, 84-01 Jeep XJ 3in Rear Spring, UPC Code 658848611461
• Includes one BDS014302, 84-01 Jeep XJ 3in Bx Kt (w/BDS Rear), UPC Code 658848614004
• Includes one BDS034301, Jeep XJ(84-01)/MJ(86-91)/ZJ(93-98) 3in, UPC Code 658848616749
• Includes one BDS124306, Jeep XJ/ZJ Sway Bar Links - Solid, UPC Code 711745604957
• Includes two BDS85965, Shock- 24.90 x 14.80 x 2-3/8 - S1/BP7, UPC Code 711745610149
• Includes two BDS85980, Shock- 22.95 x 14.65 x 2 - BP18/EB1, UPC Code 711745610286
• Includes four UBT4005, 1/2 x 2-3/4 x 6-1/2 Round U-bolt, UPC Code 711745613508

Elevate your 1984-2001 Jeep Cherokee XJ with the BDS Suspension BDS433H 3-Inch Lift Kit, engineered to enhance both aesthetic appeal and off-road performance. This meticulously designed kit is perfect for Jeep enthusiasts looking to improve their vehicle's stance and driving capabilities while accommodating up to 31-inch tires.

At the core of the kit are the Pro-Ride coil springs, crafted from high tensile steel to provide dependable lift height and a smooth, responsive ride across diverse terrains. The specialized combination of front Glide-Ride coil springs, extended sway bar links, and a transfer case drop ensures proper driveline angles, promoting stability and control.

In the rear, this lift kit features a long thin add-a-leaf design, augmenting height without compromising ride comfort, along with a 5/8-inch lift block for a balanced suspension setup. Drivers can select from either the NX2 nitro series gas shocks for enhanced damping or the FOX 2.0 Internal Floating Piston performance shocks, both of which are crafted to improve handling and absorb impacts effectively.

The BDS433H lift kit is not only about performance; it also emphasizes user-friendly installation. Designed for a straightforward, 100% bolt-on process, this kit allows you to transform your Jeep with minimal hassle. With its multi-leaf progressive design, the leaf springs work to reduce axle wrap, giving you a more controlled and stable drive while maintaining factory payload weight ratings.

Before installation, simply verify your rear axle type to ensure compatibility with either the Chrysler 8.25 or Dana 35 axles. Experience driving like never before with the BDS Suspension BDS433H 3-Inch Lift Kit, the ultimate upgrade for your Jeep Cherokee XJ.
