BDS SUSPENSION

BDS SUSPENSION BDS404H 4 INCH LIFT KIT JEEP CHEROKEE SJ WAGONEER GRAND WAGONEER OR J10/J20 74-89 LEAF SPRINGS NX2 NITRO

(No reviews yet) Write a Review
SKU:
BDS404H
MPN:
BDS404H
Shipping:
Calculated at Checkout
  • BDS SUSPENSION BDS404H 4 INCH LIFT KIT JEEP CHEROKEE SJ WAGONEER GRAND WAGONEER OR J10/J20 74-89 LEAF SPRINGS NX2 NITRO
  • BDS SUSPENSION BDS404H 4 INCH LIFT KIT JEEP CHEROKEE SJ WAGONEER GRAND WAGONEER OR J10/J20 74-89 LEAF SPRINGS NX2 NITRO
$1,773.36

Description

Update the style of your Jeep Cherokee SJ Full Size,Wagoneer, and Grand Wagoneer with this 4-inch lift kit from BDS Suspension. Designed to improve stance, performance, and capability this kit includes everything necessary to set your truck up right with clearance for up to 33 inch Tires.

Up front the lift kit includes Glide-Ride leaf springs, brake line brackets and precision tuned NX2 nitrogen charged shocks. In the rear this kit utilizes a high-strength lift block, longer u-bolts and a matching set of NX2 Nitro shocks.

Glide-Ride Leaf Springs

Built to outperform, BDS engineered the Glide-Ride leaf springs into a multi-leaf progressive spring rate design that provides a smooth ride with any load. This is accomplished with an exclusive triple-stage leaf spring design. Upgrading to BDS Glide-Ride leaf springs will provide flexibility throughout the suspension cycle.

  • Front Lift Method: Leaf Spring
  • Rear Lift Method: Block
  • Shocks Included: Yes
  • Front Lift Height: 4 inch
  • Rear Lift Height: 3 inch
  1. 083402 Pitman arm will increase turning radius. (cannot turn as sharp)
  2. Not recommended for Wagoneers or Cherokees with front and/or rear track rods.
  3. 1974-1975 models must have 131 inchwheelbase and 7200 GVWR or more for 004408 rear springs to fit.
  4. Some 1974 J20s with stock 401 come with a rear 15/16 inch spring eye stud.
  5. 004402 and 004408 come with OE rubber bushings installed.
  6. Rear shock mount may need to be relocated.
  7. If equipped with Dana 44 rear axle will require a 9/16 X3-1/4 inch X 7-1/2 inch rear u-bolt. (Not supplied by BDS)
  • Easy, 100 percent Bolt-on installation
  • Glideride leaf springs to provide full lift height and increased capacity
  • Standard NX2 Nitro shocks with vehicle-specific valving for better control

Rear Lift Option

Leaf Springs

  • Eliminates any need for a lift block.
  • Reduces axle wrap and creates a more controlled and stable feel.
  • Multi-leaf progressive design for a smooth ride.
  • Maintains factory payload weight ratings.

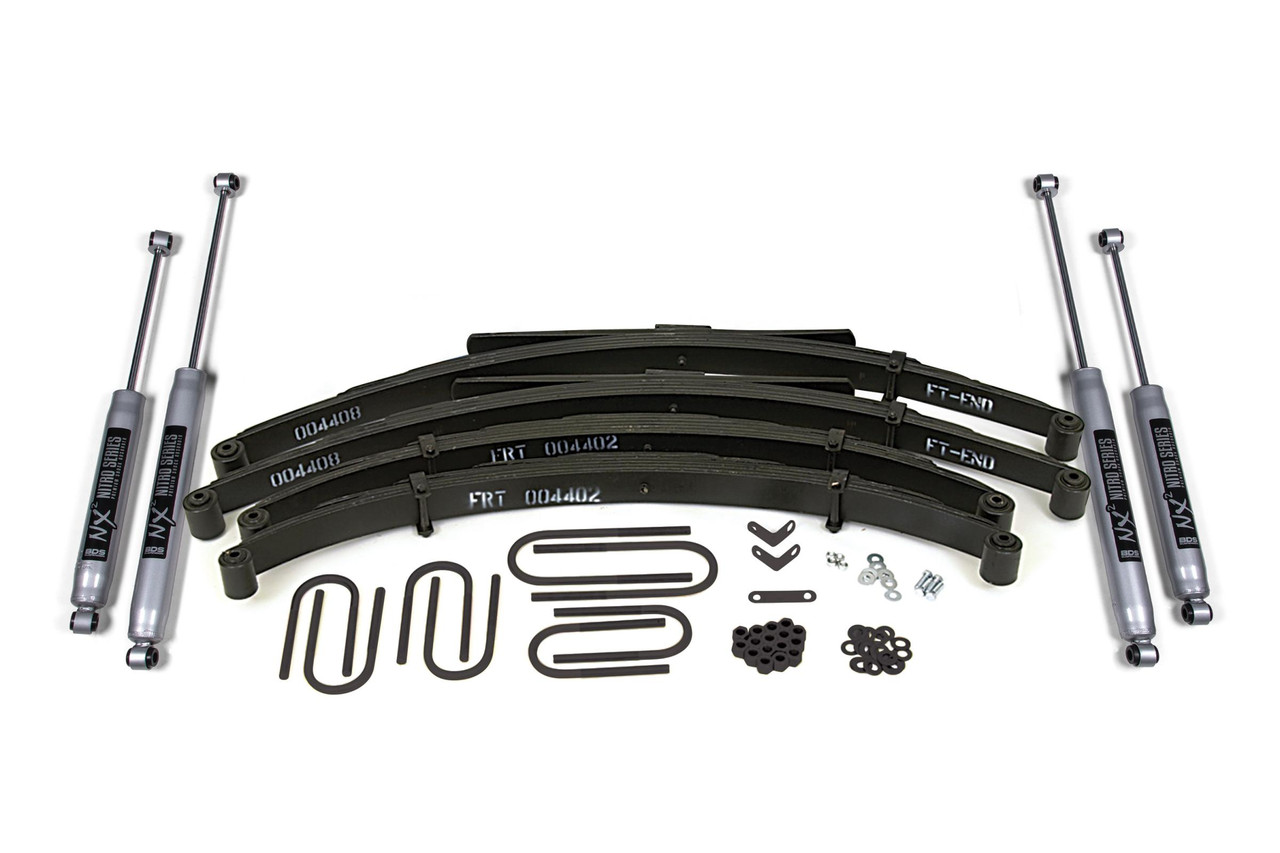

Kit Components:

  • Includes two BDS004402, Jeep J10/20 Gr Wagoneer 4 Inch Front Spring, UPC Code 658848611546
  • Includes two BDS004408, Jeep J10/20 Gr Wagoneer 4 Inch Rear Spring, UPC Code 658848611553
  • Includes one BDS014402, 74-90 Jeep J10/20 Box Kit (w/BDS Rear), UPC Code 658848614110
  • Includes two BDS85875, Shock- 23.10 x 14.25 x 2-3/8 - EB1/EB1, UPC Code 711745609914
  • Includes two BDS85920, Shock - 25.95 x 15.40 x 2 - EB1/EB1, UPC Code 711745609983

Transform your Jeep Cherokee SJ Full Size, Wagoneer, and Grand Wagoneer from ordinary to extraordinary with the BDS Suspension BDS404H 4-Inch Lift Kit. Crafted for enthusiasts seeking to enhance their vehicle’s performance, this comprehensive lift kit allows you to conquer rugged terrains while giving your ride a commanding stance.

The BDS404H includes everything required for installation, boasting compatibility with tires up to 33 inches to elevate your off-roading experience. The lift kit features innovative Glide-Ride leaf springs that follow a multi-leaf progressive design, ensuring a smooth ride whether loaded or empty. The unique triple-stage design of these springs enhances flexibility throughout the suspension cycle, providing improved comfort on any journey.

In the front, the kit showcases premium Glide-Ride leaf springs, expertly engineered brake line brackets, and precision-tuned NX2 nitrogen-charged shocks, delivering optimal control and a responsive driving experience. The rear setup utilizes a high-strength lift block, longer u-bolts, and matching NX2 Nitro shocks that offer reliable performance and stability while diminishing axle wrap.

Installation of the BDS404H is straightforward, featuring 100% bolt-on components that make the upgrade hassle-free. The rear lift option eliminates the need for a lift block, promoting a more controlled and stable ride while maintaining factory payload capacity. Additionally, the kit components come with direct part numbers for easy reference.

In summary, the BDS Suspension BDS404H 4-Inch Lift Kit combines aesthetic enhancement with exceptional functionality, ensuring your Jeep can tackle any challenge that comes its way. Equip your vehicle with this lift kit and redefine your off-roading adventures.

View AllClose

Warranty Information

Lifetime Replacement Warranty Extends to Cover all BDS Hard Parts
