BDS SUSPENSION BDS398H 4 INCH LIFT KIT FORD F100/F150 80-96 2WD STANDARD CAB NX2 NITRO

Easily fit larger Tires on your Ford 1980-1983 F100 and 1980-1996 F150 2WD truck with a 4-inch suspension lift kit by BDS. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 33 inch Tires.

Up front the lift kit includes Pro-Ride coil springs, axle pivot relocation brackets, radius arm drop brackets, forged pitman arm for steering correction and precision tuned NX2 nitrogen charged shocks.

In the rear the base kit utilizes a high-strength lift block, longer u-bolts and a matching set of NX2 Nitro shocks.

Pro-Ride Coil Springs

A pair of full-length, vehicle-specific, Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.

• Front Lift Method: Coil Spring
• Rear Lift Method: Leaf Spring
• Shocks Included: Yes
• Front Lift Height: 4 inch
• Rear Lift Height: 2 inch

1. If your vehicle is equipped with a front anti-sway bar, you will want a 123401 available in the options.
2. Front ball joint alignment cams will be required for alignment.
3. Does not fit F150 models without power steering.
4. Fits Standard cab models only.

• Easy, Bolt-on installation
• Standard cab models only
• Pro-Ride dual rate coil springs ride smooth through any terrain
• Heavy duty steel drop brackets for proper suspension geometry
• Cast steel blocks provide level stance from front to rear
• NX2 Nitro shocks with vehicle-specific valving for better control

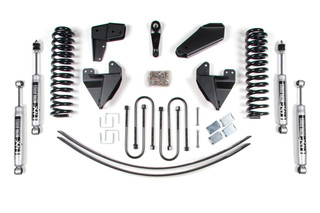

Kit Components:

• Includes one BDS013001, 80-96 Ford F150 Front Box Kit, UPC Code 658848612918
• Includes one BDS033401, 80-96 Ford F150/Bronco 4 Inch Coil Kit, UPC Code 658848616497
• Includes one BDS119158, Full Size Rear Short Add-a-leaf, UPC Code 658848618781
• Includes two BDS85650, Shock- 26.20 x 15.80 x 2-3/8 - EB1/EB1, UPC Code 711745609457
• Includes two BDS85800, Shock- 20.40 x 12.65 x 2-3/8 - S1/EB1, UPC Code 711745609808
• Includes four UBT4051, 9/16 x 3-1/4 x 10 Round U-bolt, UPC Code 711745613126

Elevate your Ford F100 or F150 with the BDS398H 4-Inch Lift Kit, designed specifically for 1980-1996 2WD standard cab models. This comprehensive suspension system transforms your truck's stance and capability, allowing you to fit larger tires up to 33 inches, enhancing both performance and aesthetics.

The front of the lift kit features durable Pro-Ride coil springs, crafted for a smooth ride over rough terrains and improved handling. Complementing these springs are axle pivot relocation brackets, radius arm drop brackets, and a forged pitman arm designed to ensure correct steering geometry. The included NX2 nitrogen-charged shocks are precision-tuned, providing exceptional control and comfort as you navigate various driving conditions.

In the rear, the kit consists of high-strength lift blocks and extended u-bolts, working together with matching NX2 Nitro shocks to maintain a balanced ride while enhancing load-bearing capability. This well-engineered system not only raises your vehicle but also retains its original driving dynamics.

Each component in the BDS398H kit underscores quality and performance. The Pro-Ride dual-rate coil springs deliver a buttery smooth ride, while heavy-duty steel drop brackets maintain optimal suspension geometry. Cast steel blocks ensure a level stance, reinforcing stability and control.

Installation is straightforward, designed to be a simple bolt-on process tailored for standard cab models only. However, please note that vehicles with a front anti-sway bar will require additional components. The lift kit does not fit F150 models without power steering and is exclusively compatible with standard cab vehicles.

Transform your truck's look and capability with the BDS398H 4-Inch Lift Kit, the perfect solution for performance enthusiasts seeking to make a significant upgrade to their Ford F100 or F150.
