BDS SUSPENSION BDS367H 6 INCH LIFT KIT W/ RADIUS ARM FORD F150/BRONCO 80-96 4WD BLOCK AND ADD A LEAF NX2 NITRO

Raise the bar and take your 1980-1996 Ford Bronco full size 4WD truck to the next level with a 6-inch suspension lift kit with extended radius arms by BDS. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35 inch Tires.

Up front the lift kit includes Pro-Ride coil springs, axle pivot relocation brackets, extended radius arms, radius arm drop mounts, forged pitman arm for steering correction and precision tuned NX2 nitrogen charged shocks.

In the rear the base kit utilizes a high-strength lift block, longer u-bolts and a matching set of NX2 Nitro shocks.

Pro-Ride Coil Springs

A pair of full-length, vehicle-specific, Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.

Extended Radius Arms

In place of the factory stamped steel radius arms BDS supplies a pair of high-strength tubular radius arms. The extended radius arm system will reduce caster change through wheel travel creating a more capable and controlled feeling in the steering wheel both on and off road.

• Front Lift Method: Coil Spring
• Rear Lift Method: Block
• Shocks Included: Yes
• Front Lift Height: 6 inch
• Rear Lift Height: 4.5 inch

1. Front end alignment required. Alignment cams may be required.
2. #123401 recommended if equipped with a front anti-sway bar. Ford produced 3 different styles of sway bar systems
   between 1980 and 1996. In extremely rare cases, modification may be required.
3. #003208, #003408 and #003608 come with OE style bushings installed.
4. Add two front auxiliary shocks if the vehicle is equipped with factory dual mounts.
5. Extended brake lines required.

• Easy, Bolt-on installation
• Pro-Ride dual rate coil springs ride smooth through any terrain
• Heavy duty steel drop brackets for proper suspension geometry
• Cast steel blocks provide level stance from front to rear
• NX2 Nitro shocks with vehicle-specific valving for better control

Rear Lift Option Block Kit with Add-A-Leaf

• Add-a-leaf helps freshen up old worn-out factory leaf springs.
• Blocks are made from cast iron for max strength.
• Includes new center pins.

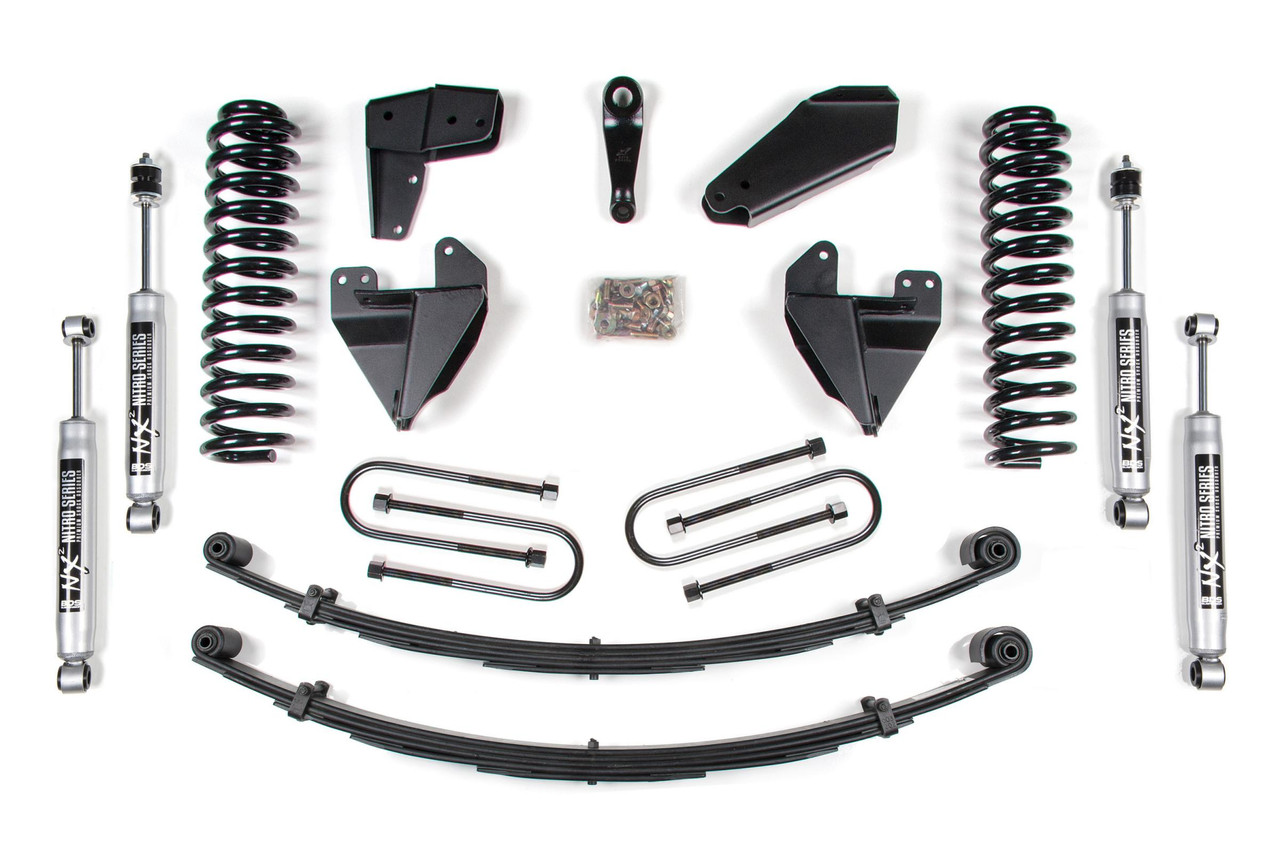

Kit Components:

• Includes one BDS013003, 80-96 Ford F150 Ext Radius Arm Front Box, UPC Code 658848612932
• Includes one BDS033601, 80-96 Ford F150/Bronco 6 Inch Coil Kit, UPC Code 658848616541
• Includes one BDS063309, Ford F150 3in Block & U-bolt Kit, UPC Code 658848617043
• Includes one BDS113209, Ford 3in wide Rear Dual Add-a-leaf, UPC Code 658848618712
• Includes two BDS85650, Shock- 26.20 x 15.80 x 2-3/8 - EB1/EB1, UPC Code 711745609457
• Includes two BDS85820, Shock- 22.90 x 13.90 x 2-3/8 - S1/EB1, UPC Code 711745609853

Elevate your off-road experience with the BDS SUSPENSION BDS367H 6 Inch Lift Kit, expertly designed for the 1980-1996 Ford F150 and Bronco 4WD. This comprehensive lift kit transforms your vehicle, enhancing its stance and performance while providing the confidence to tackle any terrain. With the capability to clear up to 35-inch tires, it’s time to redefine your driving adventures.

The heart of this kit lies in its meticulously crafted Pro-Ride coil springs and extended radius arms. The full-length coil springs are vehicle-specific, ensuring optimal lift height and a smooth, controlled ride. The innovative extended radius arms replace factory stamped steel, minimizing caster changes through wheel travel for a noticeable improvement in steering control, whether you're cruising the highway or navigating rugged trails.

Installation is convenient with a straightforward bolt-on process. The kit includes reinforced lift blocks, longer u-bolts, and NX2 nitrogen-charged shocks that are specially tuned to deliver an exceptional driving experience. Coupled with heavy-duty steel drop brackets for maintaining proper suspension geometry, this lift kit promises both durability and reliability.

To enhance rear performance, the kit features a robust Add-a-Leaf option designed to rejuvenate aging leaf springs, complemented by cast iron blocks for maximum strength. This combination not only levels out your truck’s stance but also ensures increased load capacity and stability.

With essential components and detailed specifications, the BDS367H kit is poised to elevate your Ford F150 or Bronco’s capabilities. It’s more than just a lift; it’s an investment in your vehicle’s potential to conquer any landscape with style and confidence, making it the perfect choice for enthusiasts who demand excellence in both performance and aesthetic appeal.
