BDS SUSPENSION

BDS SUSPENSION BDS346H 4 INCH LIFT KIT W/ 4-LINK FORD F250/F350 SUPER DUTY 05-07 4WD DIESEL BLOCK KIT WITH FACTORY OVERLOAD NX2 NITRO

(No reviews yet) Write a Review
SKU:
BDS346H
MPN:
BDS346H
Shipping:
Calculated at Checkout
  • BDS SUSPENSION BDS346H 4 INCH LIFT KIT W/ 4-LINK FORD F250/F350 SUPER DUTY 05-07 4WD DIESEL BLOCK KIT WITH FACTORY OVERLOAD NX2 NITRO
  • BDS SUSPENSION BDS346H 4 INCH LIFT KIT W/ 4-LINK FORD F250/F350 SUPER DUTY 05-07 4WD DIESEL BLOCK KIT WITH FACTORY OVERLOAD NX2 NITRO
$2,250.55

Description

Raise the height of your 2005-2007 Ford F250 and F350 Super Duty diesel truck with this 4-inch lift kit and 4-Link conversion from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35 inch Tires.

Up front the lift kit includes diesel-specific Pro-Ride coil springs, 4-link control arms with conversion brackets, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets and precision tuned nitrogen charged shocks.

In the rear the base kit utilizes a high-strength lift block, longer u-bolts and a matching set of NX2 Nitro or FOX Performance shocks.

4-Link Conversion

Convert the factory stamped steel radius arms over to the BDS 4-link to optimize suspension geometry for better handling characteristics while adding strength and stability. This bolt-on upgrade utilizes high-strength 1/4-inch steel brackets that allow mounting of HD upper and lower control arms to correct axle positioning while limiting caster change throughout wheel travel.

Pro-Ride Coil Springs

A pair of full-length, diesel-specific, Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.

Steering Correction

To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.

  • Front Lift Method: Coil Spring
  • Rear Lift Method: Block
  • Shocks Included: Yes
  • Front Lift Height: 4 inch
  • Rear Lift Height: 5 inch
  1. These trucks were manufactured with and without top mounted overload springs on the rear leaf springs. A top mounted overload is an extra leaf separate from the pack that set above the main leaf. You will need to identify which you have before ordering.
  2. Removal of O.E. block in the rear is required.
  3. Front dual shock hoop requires different cylinders than what comes in the base kit.
  4. If equipped with 2 piece driveshaft, a driveshaft alignment kit may be required.
  • Easy, 100 percent Bolt-on installation
  • Pro-Ride dual rate coil springs provide a remarkable ride through any terrain
  • Heavy duty 4-Link control arms offer improved handling, stability, strength and caster control during wheel travel
  • Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling
  • Fabricated steel blocks provide level stance from front to rear
  • Standard NX2 Nitro shocks with vehicle-specific valving for better control
  • Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road

Rear Lift Option Block Kit With Factory Overload

  • Determine if your truck was manufactured with or without top-mounted overload springs on the rear leaf springs.
  • Blocks made of steel for high strength.
  • Designed to provide correct pinion angles.

Tire Size: 35 x 12.5 Tire Size 2: 35 x 12.5 Wheel Diameter: 18 x 9 Wheel Diameter 2: 20 x 9 Back Spacing: 4.5/4.5

Shock Option NX2 Nitro Series

  • Nitrogen-charged
  • Twin-tube design
  • 10-stage velocity-sensitive valving
  • Dual-welded ends for increased strength
  • 1-3/8-inch high-flow piston
  • Self-lubricating seals
  • Silver powder coat finish

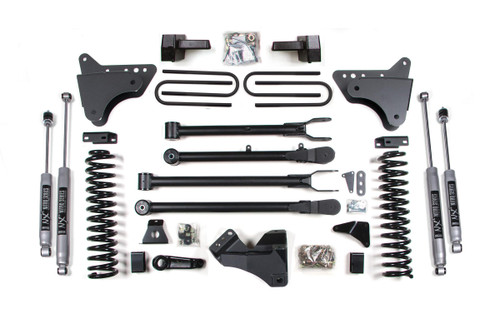

Kit Components:

  • Includes one BDS013010, 05 Ford F250/350 4-link Kit (1of2), UPC Code 658848612994
  • Includes one BDS013011, 05 Ford F250/350 4-link Kit (2of2), UPC Code 658848613007
  • Includes one BDS013328, 1999-2007 Ford F250/F350 Rear Box Kit w/ Overload, UPC Code 658848613298
  • Includes one BDS033411, 2005-2024 Ford F250/F350 Superduty 4 inch Coil Kit - Diesel, UPC Code 658848616527
  • Includes one BDS85415, Steering Stab 23.9 x 14.3 - EB1/EB1, UPC Code 711745609112
  • Includes two BDS85700, Shock- 25.20 x 15.20 x 2-3/8 - S50/EB2, UPC Code 711745609495
  • Includes two BDS85760, Shock- 33.00 x 19.25 x 2-3/8 - EB1/EB1, UPC Code 711745609693

Elevate your driving experience with the BDS Suspension BDS346H 4-Inch Lift Kit specifically designed for the 2005-2007 Ford F250 and F350 Super Duty diesel trucks. This robust lift kit enhances your vehicle’s stance, performance, and off-road capability, allowing for the fitting of tires up to 35 inches in size. Crafted from high-quality materials, this comprehensive kit ensures superior handling and stability across a variety of terrains.

Key features of the kit include diesel-specific Pro-Ride coil springs engineered to deliver exceptional ride quality and performance. The innovative 4-Link conversion optimizes suspension geometry for improved handling, thanks to high-strength 1/4-inch steel brackets that support robust upper and lower control arms. These brackets enhance axle positioning while preserving caster control during wheel travel, making your drive smoother and more responsive.

The front assembly consists of a forged drop pitman arm and a sway bar relocation system, maintaining correct steering angles and enhancing directional control. In the rear, the installation uses heavy-duty lift blocks combined with longer u-bolts and the choice of standard NX2 Nitro or FOX Performance shocks, delivering consistent performance with superior damping characteristics.

Designed for a user-friendly, 100% bolt-on installation, this lift kit simplifies the upgrade process while providing powerful results. The steel fabrication and precision engineering guarantee a level stance and optimized pinion angles for enhanced drivetrain dynamics.

Transform your Super Duty truck into a formidable off-road machine with capabilities that ensure both power and comfort, whether navigating rugged trails or cruising city streets. With BDS Suspension, elevate not just the height of your truck but also the quality of your driving adventures.

View AllClose

Warranty Information

Lifetime Replacement Warranty Extends to Cover all BDS Hard Parts
