BDS SUSPENSION BDS343FS 4 INCH LIFT KIT FORD F250/F350 SUPER DUTY 05-07 4WD DIESEL BLOCK KIT WITHOUT FACTORY OVERLOAD FOX 2.0 PERFORMANCE
- SKU:
- BDS343FS
- MPN:
- BDS343FS
- Shipping:
- Calculated at Checkout
Description
Increase ground clearance on your 2005-2007 Ford F250 and F350 Super Duty diesel truck with this 4-inch lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35 inch Tires.
Up front the lift kit includes diesel-specific Pro-Ride coil springs, heavy-duty radius arm drop brackets, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets and precision tuned NX2 or FOX nitrogen charged shocks.
In the rear this kit utilizes a high-strength lift block, longer u-bolts and a matching set of NX2 Nitro or FOX Performance shocks.
Pro-Ride Coil Springs
A pair of full-length, diesel-specific, Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.
Steering Correction
To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.
- Front Lift Method: Coil Spring
- Rear Lift Method: Block
- Shocks Included: Yes
- Front Lift Height: 4 inch
- Rear Lift Height: 5 inch
- These trucks were manufactured with and without top mounted overload springs on the rear leaf springs. A top mounted overload is an extra leaf separate from the pack that set above the main leaf. You will need to identify which you have before ordering.
- If your vehicle is equipped with a carrier bearing, you will need to order 123402 in the accessories section.
- 5 inch Block included to replace factory block.
- Easy, 100 percent Bolt-on installation
- Pro-Ride dual rate coil springs provide a remarkable ride through any terrain
- Heavy duty radius arm drop brackets provide correct caster and will maintain your stock driving characteristics.
- Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling
- Steel lift blocks with built-in bump stop provide level stance from front to rear
- Standard NX2 Nitro shocks with vehicle-specific valving for better control
- Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road
Rear Lift Option Block Kit without Factory Overload
- Determine if your truck was manufactured with or without top-mounted overload springs on the rear leaf springs.
- Blocks made of steel for high strength.
- Designed to provide correct pinion angles.
Leaf Springs
- Eliminates any need for a lift block.
- Reduces axle wrap and creates a more controlled and stable feel.
- Multi-leaf progressive design for a smooth ride.
- Maintains factory payload weight ratings.
Tire Size: 35 x 12.5 Tire Size 2: 35 x 12.5 Wheel Diameter: 18 x 9 Wheel Diameter 2: 20 x 9 Back Spacing: 4.5/4.5
Shock Option
FOX 2.0 Performance Series
- 2-inch Impact extruded aluminum body
- Internal floating piston (Internal Floating Piston) monotube design
- CNC machined 6061-T6 aluminum mounting ends
- Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
- Race-developed high-flow piston design
- Application-specific valving to maximize performance
- Long-lasting clear anodized finish

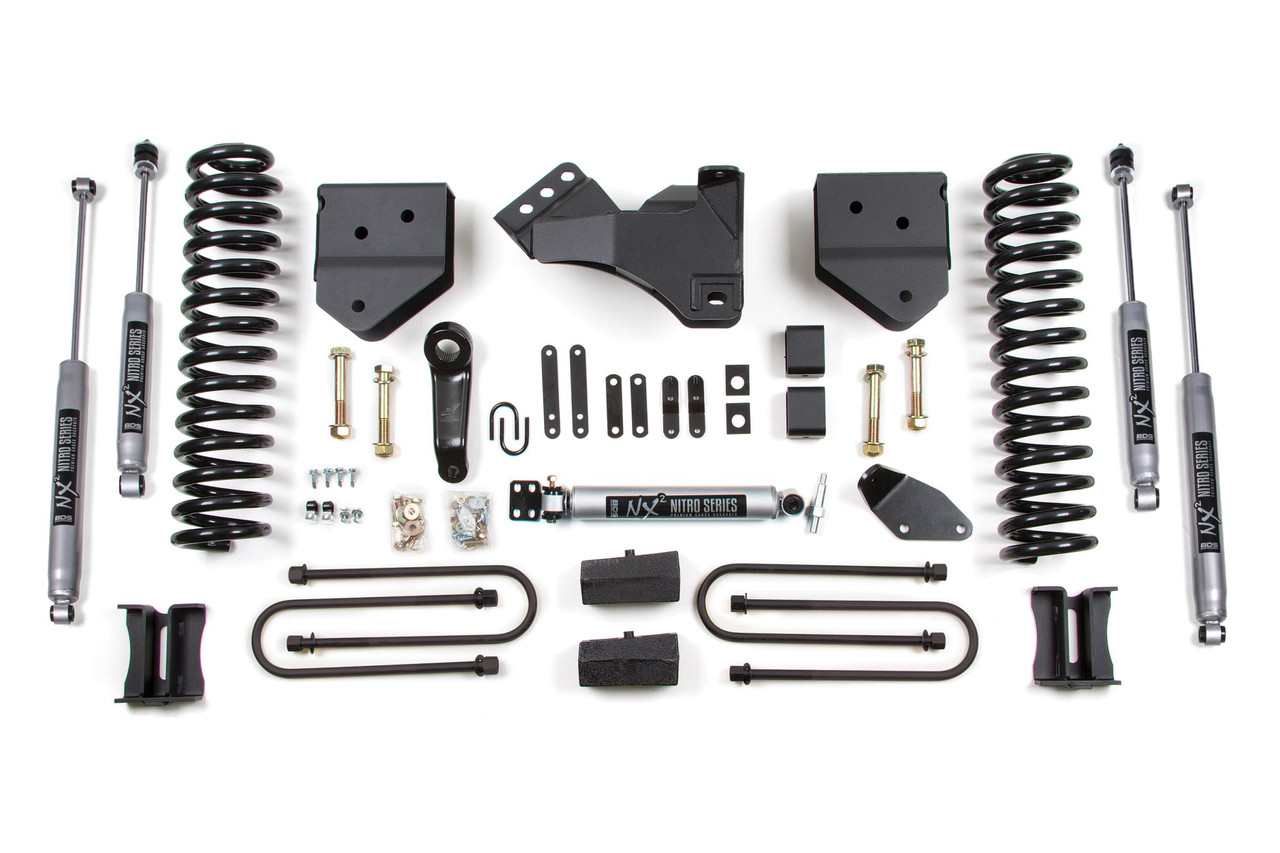

Kit Components:
- Includes one BDS013329, 1999-2007 Ford F250/F350 Rear Box Kit w/o overload, UPC Code 658848613304
- Includes one BDS013411, 05 Ford F250/350 4 Inch Front Box Kit, UPC Code 658848613427
- Includes one BDS033411, 2005-2024 Ford F250/F350 Superduty 4 inch Coil Kit - Diesel, UPC Code 658848616527
- Includes one BDS85415, Steering Stab 23.9 x 14.3 - EB1/EB1, UPC Code 711745609112
- Includes two FOX98224700, Fox 2.0 Shock 25.65 x 16.05 x 2- S50/EB1
- Includes two FOX98224760, Fox 2.0 Shock 33.85 x 20.75 x 2- EB1/EB1
The front of the kit features diesel-specific Pro-Ride coil springs that assure a smooth ride while delivering precise lift height. Complemented by heavy-duty radius arm drop brackets and a forged drop pitman arm, the kit ensures optimized steering correction, keeping your driving dynamics consistent. Sway bar relocation and brake line brackets further enhance performance, paired with the choice between NX2 or FOX nitrogen-charged shocks, designed to maximize comfort and control on the road and off.
In the rear, a high-strength lift block and longer u-bolts coordinate with accompanying NX2 Nitro or FOX Performance shocks for a balanced and controlled ride. The steel lift blocks not only provide lift but also maintain proper pinion angles, ensuring reliability and performance.
Installation is an effortless, 100% bolt-on process that allows you to enhance your vehicle without extensive modifications. The steel construction of the blocks guarantees durability, while the multi-leaf progressive design of the springs minimizes axle wrap and maintains your truck’s factory payload ratings.
Whether you're seeking aesthetic enhancement or serious off-roading capability, this lift kit is designed to meet your demands. Its attention to detail, quality components, and user-friendly installation make the BDS343FS 4-inch lift kit an essential upgrade for your Ford Super Duty, propelling your driving experience to new heights.
