BDS SUSPENSION BDS330H 4 INCH LIFT KIT W/ 4-LINK FORD F250/F350 SUPER DUTY 05-07 4WD GAS BLOCK KIT WITH FACTORY OVERLOAD NX2 NITRO

Raise the height of your 2005-2007 Ford F250 and F350 Super Duty gas truck with this 4-inch lift kit and 4-Link conversion from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35 inch Tires.

Up front the lift kit includes gas-specific Pro-Ride coil springs, 4-link control arms with conversion brackets, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets and precision tuned nitrogen charged shocks.

In the rear the base kit utilizes a high-strength lift block, longer u-bolts and a matching set of NX2 Nitro or FOX Performance shocks.

4-Link Conversion

Convert the factory stamped steel radius arms over to the BDS 4-link to optimize suspension geometry for better handling characteristics while adding strength and stability. This bolt-on upgrade utilizes high-strength 1/4-inch steel brackets that allow mounting of HD upper and lower control arms to correct axle positioning while limiting caster change throughout wheel travel.

Pro-Ride Coil Springs

A pair of full-length, gas-specific, Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.

Steering Correction

To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.

• Front Lift Method: Coil Spring
• Rear Lift Method: Block
• Shocks Included: Yes
• Front Lift Height: 4 inch
• Rear Lift Height: 5 inch

1. These trucks were manufactured with and without top mounted overload springs on the rear leaf springs. A top mounted overload is an extra leaf separate from the pack that set above the main leaf. You will need to identify which you have before ordering.
2. Removal of O.E. block in the rear is required.
3. Front dual shock hoop requires different cylinders than what comes in the base kit.
4. If equipped with 2 piece driveshaft, a driveshaft alignment kit may be required.

• Easy, 100 percent Bolt-on installation
• Pro-Ride dual rate coil springs provide a remarkable ride through any terrain
• Heavy duty 4-Link control arms offer improved handling, stability, strength and caster control during wheel travel
• Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling
• Fabricated steel blocks provide level stance from front to rear
• Standard NX2 Nitro shocks with vehicle-specific valving for better control
• Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road

Rear Lift Option Block Kit with Factory Overload

• Determine if your truck was manufactured with or without top-mounted overload springs on the rear leaf springs.
• Blocks made of steel for high strength.
• Designed to provide correct pinion angles.

Tire Size: 35 x 12.5 Tire Size 2: 35 x 12.5 Wheel Diameter: 18 x 9 Wheel Diameter 2: 20 x 9 Back Spacing: 4.5/4.5

Shock Option NX2 Nitro Series

• Nitrogen-charged
• Twin-tube design
• 10-stage velocity-sensitive valving
• Dual-welded ends for increased strength
• 1-3/8-inch high-flow piston
• Self-lubricating seals
• Silver powder coat finish

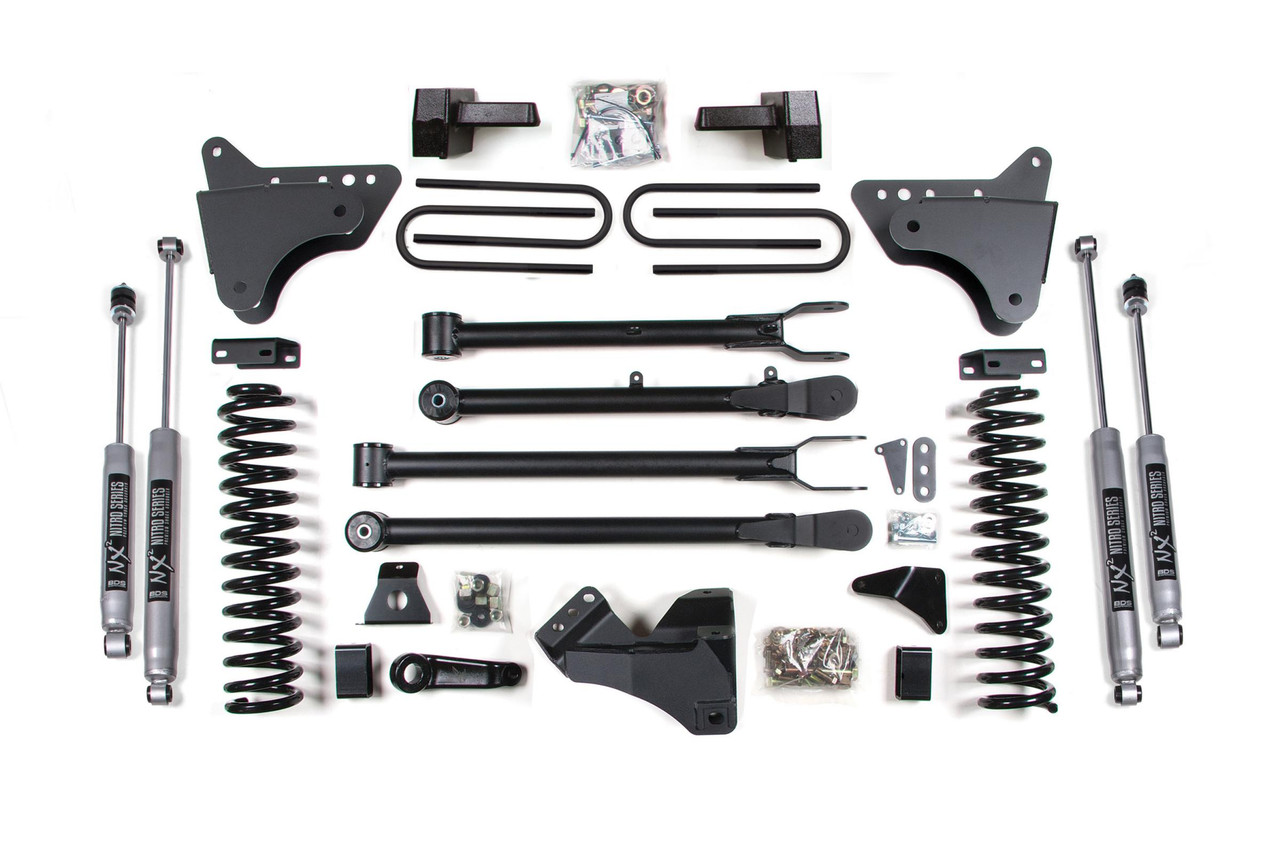

Kit Components:

• Includes one BDS013010, 05 Ford F250/350 4-link Kit (1of2), UPC Code 658848612994
• Includes one BDS013011, 05 Ford F250/350 4-link Kit (2of2), UPC Code 658848613007
• Includes one BDS013328, 1999-2007 Ford F250/F350 Rear Box Kit w/ Overload, UPC Code 658848613298
• Includes one BDS033412, 2005-2024 Ford F250/F350 Gas 4 inch Coil Spring Kit, UPC Code 658848616534
• Includes one BDS85415, Steering Stab 23.9 x 14.3 - EB1/EB1, UPC Code 711745609112
• Includes two BDS85700, Shock- 25.20 x 15.20 x 2-3/8 - S50/EB2, UPC Code 711745609495
• Includes two BDS85760, Shock- 33.00 x 19.25 x 2-3/8 - EB1/EB1, UPC Code 711745609693

Elevate your 2005-2007 Ford F250 or F350 Super Duty with the BDS330H 4-Inch Lift Kit featuring a robust 4-link conversion. Engineered to boost your truck's performance, stance, and off-road capability, this comprehensive lift kit allows for clearance to accommodate up to 35-inch tires, making it a perfect upgrade for adventurers and off-road enthusiasts.

The front of the kit is equipped with gas-specific Pro-Ride coil springs designed to maintain exceptional ride quality across diverse terrains. Complementing this are the heavy-duty 4-link control arms, which improve handling while optimizing the suspension geometry. The inclusion of a forged drop pitman arm and a track bar bracket ensures steering alignment during suspension travel, enhancing overall vehicle stability.

In the rear, high-strength lift blocks and extended U-bolts work in tandem with NX2 Nitro shocks, which feature vehicle-specific valving to ensure ideal performance and control. This well-rounded setup ensures that your truck not only stands tall but also handles smoothly.

Convenience is key with the BDS330H, featuring a completely bolt-on installation process. The kit’s fabrications include durable steel components engineered to enhance the strength of your suspension system, while the option to upgrade to FOX 2.0 Performance Series shocks maximizes ride quality for both on and off-road adventures.

With attention to detail in design and engineering, the BDS330H lift kit maintains proper pinion angles and enables quick adjustments. It's designed for serious truck owners who demand the best in handling, stability, and performance. Step up your Ford F250 or F350's capabilities with the BDS330H 4-Inch Lift Kit and transform your driving experience today.
