BDS SUSPENSION BDS327FS 4 INCH LIFT KIT FORD F250/F350 SUPER DUTY 05-07 4WD GAS BLOCK KIT WITHOUT FACTORY OVERLOAD FOX 2.0 PERFORMANCE

(No reviews yet) Write a Review
SKU:
BDS327FS
MPN:
BDS327FS
Shipping:
Calculated at Checkout
  • BDS SUSPENSION BDS327FS 4 INCH LIFT KIT FORD F250/F350 SUPER DUTY 05-07 4WD GAS BLOCK KIT WITHOUT FACTORY OVERLOAD FOX 2.0 PERFORMANCE
  • BDS SUSPENSION BDS327FS 4 INCH LIFT KIT FORD F250/F350 SUPER DUTY 05-07 4WD GAS BLOCK KIT WITHOUT FACTORY OVERLOAD FOX 2.0 PERFORMANCE
$1,879.60

Description

Increase ground clearance on your 2005-2007 Ford F250 and F350 Super Duty gas truck with this 4-inch lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35 inch Tires.

Up front the lift kit includes gas-specific Pro-Ride coil springs, heavy-duty radius arm drop brackets, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets and precision tuned NX2 or FOX nitrogen charged shocks.

In the rear this kit utilizes a high-strength lift block, longer u-bolts and a matching set of NX2 Nitro or FOX Performance shocks.

Pro-Ride Coil Springs

A pair of full-length, gas-specific, Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.

Steering Correction

To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.

  • Front Lift Method: Coil Spring
  • Rear Lift Method: Block
  • Shocks Included: Yes
  • Front Lift Height: 4 inch
  • Rear Lift Height: 5 inch
  1. These trucks were manufactured with and without top mounted overload springs on the rear leaf springs. A top mounted overload is an extra leaf separate from the pack that set above the main leaf. You will need to identify which you have before ordering.
  2. If your vehicle is equipped with a carrier bearing, you will need to order 123402 in the accessories section.
  3. 5 inch Block included to replace factory block.
  • Easy, 100 percent Bolt-on installation
  • Pro-Ride dual rate coil springs provide a remarkable ride through any terrain
  • Heavy duty radius arm drop brackets provide correct caster and will maintain your stock driving characteristics.
  • Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling
  • Steel lift blocks with built-in bump stop provide level stance from front to rear
  • Standard NX2 Nitro shocks with vehicle-specific valving for better control
  • Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road

Rear Lift Option Block Kit without Factory Overload

  • Determine if your truck was manufactured with or without top-mounted overload springs on the rear leaf springs.
  • Blocks made of steel for high strength.
  • Designed to provide correct pinion angles.

Tire Size: 35 x 12.5 Tire Size 2: 35 x 12.5 Wheel Diameter: 18 x 9 Wheel Diameter 2: 20 x 9 Back Spacing: 4.5/4.5

Shock Option

FOX 2.0 Performance Series

  • 2-inch Impact extruded aluminum body
  • Internal floating piston (Internal Floating Piston) monotube design
  • CNC machined 6061-T6 aluminum mounting ends
  • Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
  • Race-developed high-flow piston design
  • Application-specific valving to maximize performance
  • Long-lasting clear anodized finish

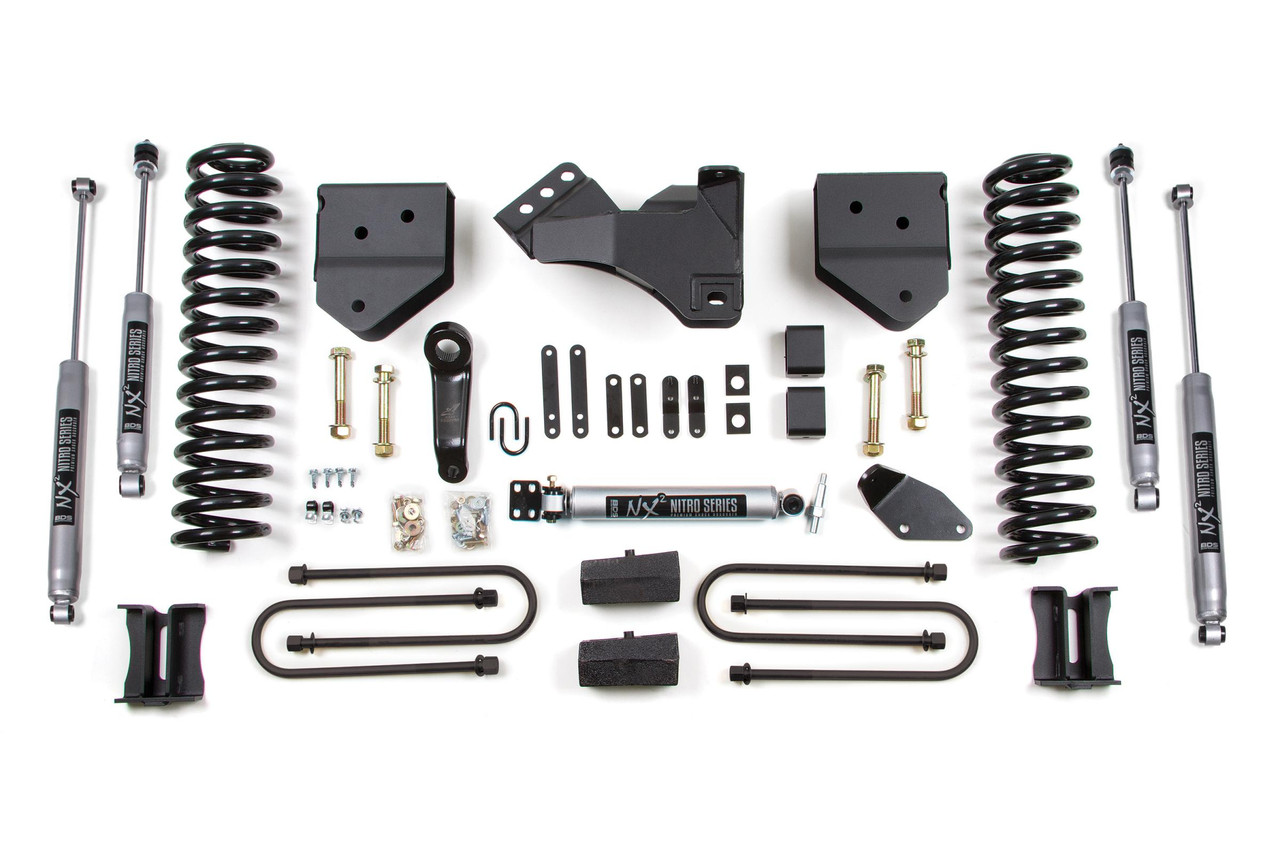

Kit Components:

  • Includes one BDS013329, 1999-2007 Ford F250/F350 Rear Box Kit w/o overload, UPC Code 658848613304
  • Includes one BDS013411, 05 Ford F250/350 4 Inch Front Box Kit, UPC Code 658848613427
  • Includes one BDS033412, 2005-2024 Ford F250/F350 Gas 4 inch Coil Spring Kit, UPC Code 658848616534
  • Includes one BDS85415, Steering Stab 23.9 x 14.3 - EB1/EB1, UPC Code 711745609112
  • Includes two FOX98224700, Fox 2.0 Shock 25.65 x 16.05 x 2- S50/EB1
  • Includes two FOX98224760, Fox 2.0 Shock 33.85 x 20.75 x 2- EB1/EB1

Elevate your 2005-2007 Ford F250 and F350 Super Duty gas truck with the BDS327FS 4-Inch Lift Kit from BDS Suspension, expertly engineered to enhance both performance and aesthetics. This comprehensive lift kit is designed to provide your truck with a remarkable 4 inches of front lift and 5 inches in the rear, allowing clearance for impressive 35-inch tires that bolster your off-road capability.

The kit comprises specially designed gas-specific Pro-Ride coil springs to deliver optimal lift height alongside a comfortable ride. Heavy-duty radius arm drop brackets, a forged drop pitman arm, and a precision-calibrated track bar bracket ensure steering geometry remains intact, providing excellent handling and a stable driving experience. Included sway bar relocation and brake line brackets further enhance the kit's compatibility with your vehicle.

For the rear, the BDS327FS incorporates high-strength steel lift blocks and longer u-bolts, allowing for a balanced and level stance. To ensure superior damping and control, you have the choice between standard NX2 Nitro shocks or an upgrade to FOX 2.0 Performance Series shocks, engineered for maximum performance both on and off-road.

Installation is a breeze with this 100 percent bolt-on system that requires no cutting or welding, making it accessible for both professionals and DIY enthusiasts. The kit is designed with durability in mind, featuring rugged components to withstand the toughest terrains.

Before purchasing, ensure you identify if your truck is equipped with top-mounted overload springs to select the correct configuration. This lift kit redefines what your Super Duty truck can achieve, transforming it into a powerhouse of performance and style, perfect for any adventure.
