BDS SUSPENSION BDS324FS 8 INCH LIFT KIT FORD F250/F350 SUPER DUTY 99-04 4WD RADIUS U BOLT FOX 2.0 PERFORMANCE

Raise the bar of your 1999-2004 Ford F250 and F350 Super Duty truck by installing this 8-inch lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 38 inch Tires.

Up front the lift kit includes Glide-Ride leaf springs, forged drop pitman arm and track bar bracket for steering correction, sway bar links, bump stop brackets and precision tuned NX2 or FOX nitrogen charged shocks.

In the rear the base kit utilizes replacement Glide-Ride full leaf spring packs, u-bolts and a matching set of NX2 Nitro or FOX Performance shocks.

Glide-Ride Leaf Springs

Built to outperform, BDS engineered the Glide-Ride leaf springs into a multi-leaf progressive spring rate design that provides a smooth ride with any load. This is accomplished with an exclusive triple-stage leaf spring design. Upgrading to BDS Glide-Ride leaf springs will reduce axle wrap and provide flexibility throughout the suspension cycle.

Steering Correction

To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.

• Front Lift Method: Leaf Spring
• Rear Lift Method: Leaf Spring
• Shocks Included: Yes
• Front Lift Height: 8 inch
• Rear Lift Height: 8 inch

1. These truck were manufactured with two different style front u-bolts. You will need to know if your front leaf spring u-bolts are square or are half way between round and square with a gentle radius around the OE cast u-bolt plate before ordering.
2. Vehicles produced before 3/1/99 require a different box kit. You must check the production date on the door prior to ordering.
3. The Superduty came from the factory with a 2 inch, 3 inch, or 4 inch rear block. If you wish to truly level your vehicle it may be necessary to change the rear OE block.
4. Will not fit dually applications.
5. If your vehicle is equipped with a carrier bearing, you will want the 123402 drop kit in the options section.
6. The front driveshaft will need to be lengthened and/or clearance ground depending on how the vehicle is equipped.

• Easy, 100 percent Bolt-on installation
• Glideride leaf springs to provide full lift height and increased capacity
• Track bar relocation bracket and pitman arm maintains proper steering angles for improved handling
• Cast steel blocks provide level stance from front to rear
• Standard NX2 Nitro shocks with vehicle-specific valving for better control
• Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road

Front U-Bolt Type Radius

This vehicle was manufactured with either square front U-Bolts or radiused front U-bolts. Typically, 1999-2000 are square and 2001-2004 are radiused, but that is not always the case.

The radiused U-bolts aren't square or round, but rather have a gentle radius that matches a cast factory upper U-bolt plate on top of the factory spring. Vehicles manufactured prior to 2-28-99 require yet another different box kit due to a change in the factory track bar. Please make the appropriate selection for your particular vehicle.

Shock Option

FOX 2.0 Performance Series

• 2-inch Impact extruded aluminum body
• Internal floating piston (Internal Floating Piston) monotube design
• CNC machined 6061-T6 aluminum mounting ends
• Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• Long-lasting clear anodized finish

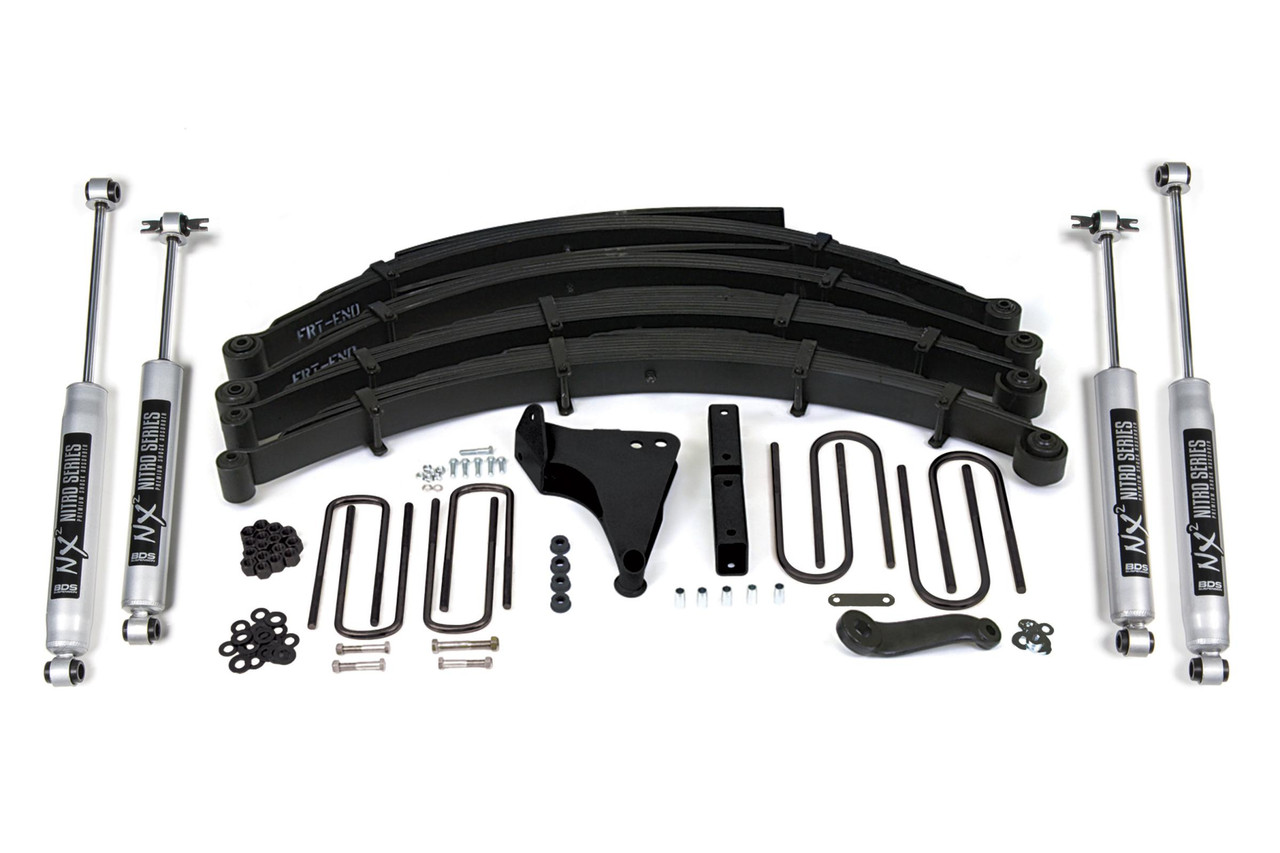

Kit Components:

• Includes two BDS003802, Ford F250/350 8in Front Spring, UPC Code 658848611416
• Includes two BDS003809, Ford F250/350 8in Rear Spring, UPC Code 658848611423
• Includes one BDS013006, 00-01 Ford F250/350 6&8in Front Box Kit, UPC Code 658848612963
• Includes one BDS013009, Ford F250/350 6&8in Rear Box Kit, UPC Code 658848612987
• Includes two FOX98224660, Fox 2.0 Shock 30.05 x 18.45 x 2- EB1/EB1
• Includes two FOX98224765, Fox 2.0 Shock 35.95 x 21.85 x 2-EB1/EB1

Elevate your 1999-2004 Ford F250 or F350 Super Duty to new heights with the BDS324FS 8-Inch Lift Kit from BDS Suspension. This comprehensive lift kit is engineered to enhance your vehicle's stance, performance, and capability, offering the perfect setup for accommodating tires up to 38 inches in diameter.

At the heart of this kit are the advanced Glide-Ride leaf springs, carefully designed with a multi-leaf progressive spring rate. This innovation ensures a smoother ride, irrespective of load, reducing axle wrap and enhancing suspension flexibility. Paired with a forged drop pitman arm and track bar bracket, you'll experience improved steering geometry, providing more control and safety even on rough terrains.

The front and rear lift methods utilize durable leaf springs supported by NX2 Nitro or FOX 2.0 Performance shocks for ultimate performance on and off the road. The inclusion of standard NX2 shocks means you'll enjoy vehicle-specific valving that enhances handling and ride quality. For those seeking the highest level of performance, an upgrade to FOX's exceptional shocks is readily available.

Installation is effortless with the 100 percent bolt-on design, making it ideal for DIY enthusiasts or professionals alike. Additionally, the kit features a track bar relocation bracket that maintains proper steering angles, optimizing handling and driving dynamics.

With a level stance achieved through cast steel blocks, this lift kit not only elevates your truck's look but also its capabilities. It’s a meticulous assembly of components, including front and rear leaf springs, shock absorbers, and all necessary installation hardware.

Transform your Ford Super Duty truck into a powerhouse with the BDS324FS Lift Kit, crafted for those who demand excellence on every journey.
