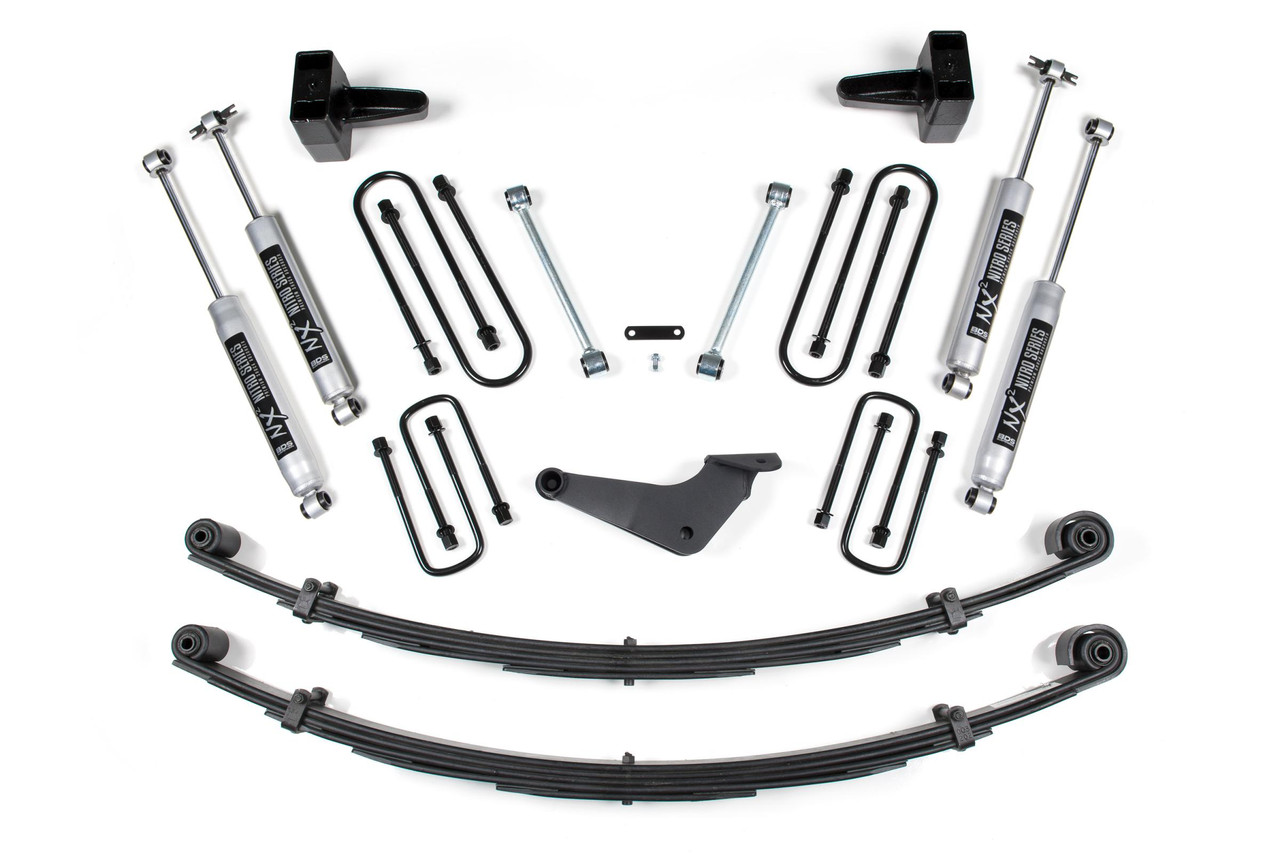

BDS SUSPENSION BDS322H 4 INCH LIFT KIT FORD F250/F350 SUPER DUTY 99-04 4WD RADIUS U BOLT WITH FACTORY OVERLOAD NX2 NITRO

Update the style of your 1999-2004 Ford F250 and F350 Super Duty diesel truck with this 4-inch lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35 inch Tires.

Up front the lift kit includes Glide-Ride leaf springs, forged drop pitman arm and track bar bracket for steering correction, sway bar links, bump stop brackets and precision tuned NX2 or FOX nitrogen charged shocks.

In the rear this kit utilizes a high-strength lift block, longer u-bolts and a matching set of NX2 Nitro or FOX Performance shocks.

Glide-Ride Leaf Springs

Built to outperform, BDS engineered the Glide-Ride leaf springs into a multi-leaf progressive spring rate design that provides a smooth ride with any load. This is accomplished with an exclusive triple-stage leaf spring design. Upgrading to BDS Glide-Ride leaf springs will provide flexibility throughout the suspension cycle.

Steering Correction

To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.

• Front Lift Method: Leaf Spring
• Rear Lift Method: Block
• Shocks Included: Yes
• Front Lift Height: 4 inch
• Rear Lift Height: 3 inch

1. These trucks were manufactured with two different style front u-bolts. You will need to know if your front leaf spring u-bolts are square or are half way between round and square with a gentle radius around the OE cast u-bolt plate before ordering.
2. Vehicles produced before 3/1/99 require a different box kit. You must check the production date on the door prior to ordering.
3. The Superduty came from the factory with a 2 inch, 3 inch, or 4 inch rear block. If you wish to truly level your vehicle it may be necessary to change the rear OE block.
4. Will not fit dually applications.
5. These trucks were produced both with and without a top mounted over load spring. There is an extra leaf that mounts on top of the rear leaf pack. You will need to know how your truck is equipped before ordering.
6. If your vehicle is equipped with a carrier bearing, you will want the 123402 drop kit in the accessories section.

• Easy, 100 percent Bolt-on installation
• Glideride leaf springs to provide full lift height and increased capacity
• Track bar relocation bracket and pitman arm maintains proper steering angles for improved handling
• Cast steel blocks provide level stance from front to rear
• Standard NX2 Nitro shocks with vehicle-specific valving for better control
• Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road

Front U-Bolt Type Radius

This vehicle was manufactured with either square front U-Bolts or radiused front U-bolts. Typically, 1999-2000 are square and 2001-2004 are radiused, but that is not always the case.

The radiused U-bolts aren't square or round, but rather have a gentle radius that matches a cast factory upper U-bolt plate on top of the factory spring. Vehicles manufactured prior to 2-28-99 require yet another different box kit due to a change in the factory track bar. Please make the appropriate selection for your particular vehicle.

Rear Lift Option With Factory Overload

Select rear box kit based on whether or not your RAM has factory Rear Overload Leaf.

Shock Option NX2 Nitro Series

• Nitrogen-charged
• Twin-tube design
• 10-stage velocity-sensitive valving
• Dual-welded ends for increased strength
• 1-3/8-inch high-flow piston
• Self-lubricating seals
• Silver powder coat finish

Kit Components:

• Includes two BDS003402, Ford F250/350 4 Inch Front Spring, UPC Code 658848611348
• Includes one BDS013328, 1999-2007 Ford F250/F350 Rear Box Kit w/ Overload, UPC Code 658848613298
• Includes one BDS013405, 00-01 Ford F250/350 4 Inch Front Bx Kt w/cu, UPC Code 658848613380
• Includes two BDS85650, Shock- 26.20 x 15.80 x 2-3/8 - EB1/EB1, UPC Code 711745609457
• Includes two BDS85760, Shock- 33.00 x 19.25 x 2-3/8 - EB1/EB1, UPC Code 711745609693

Transform the performance and appearance of your 1999-2004 Ford F250 and F350 Super Duty diesel truck with the BDS Suspension BDS322H 4-Inch Lift Kit. Engineered for enhanced stance and capability, this comprehensive kit not only elevates your vehicle by four inches, but also allows for the installation of larger 35-inch tires, giving your truck a commanding presence on and off the road.

At the forefront, the lift kit features BDS's innovative Glide-Ride leaf springs, designed with a multi-leaf progressive spring rate for an unparalleled smooth ride, even under heavy loads. Complementing this are a forged drop pitman arm and a heavy-duty track bar drop bracket, which work in unison to ensure optimal steering geometry, precise handling, and front axle recentering through suspension travel.

In the rear, a robust combination of high-strength lift blocks and extended u-bolts provides superior support. The kit is complemented by a set of NX2 Nitro or FOX Performance shocks, engineered for better control and ride quality.

Installation is straightforward and 100% bolt-on, making it accessible for enthusiasts and amateurs alike. This lift kit carefully maintains your truck’s necessary steering angles and offers the option to upgrade to FOX 2.0 Performance Series shocks for those seeking maximum on-road and off-road performance.

Please note that compatibility checks are necessary before purchasing, especially regarding front u-bolt styles and the presence of factory overload springs. The kit includes everything needed for an impressive upgrade, ensuring your Super Duty operates with stability and enhanced capabilities. Elevate your driving experience with the BDS322H lift kit, where rugged style meets outstanding performance.
