BDS SUSPENSION BDS321H 4 INCH LIFT KIT FORD F250/F350 SUPER DUTY 99-04 4WD RADIUS U BOLT WITHOUT FACTORY OVERLOAD NX2 NITRO

Update the style of your 1999-2004 Ford F250 and F350 Super Duty diesel truck with this 4-inch lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35 inch Tires.

Up front the lift kit includes Glide-Ride leaf springs, forged drop pitman arm and track bar bracket for steering correction, sway bar links, bump stop brackets and precision tuned NX2 or FOX nitrogen charged shocks.

In the rear this kit utilizes a high-strength lift block, longer u-bolts and a matching set of NX2 Nitro or FOX Performance shocks.

Glide-Ride Leaf Springs

Built to outperform, BDS engineered the Glide-Ride leaf springs into a multi-leaf progressive spring rate design that provides a smooth ride with any load. This is accomplished with an exclusive triple-stage leaf spring design. Upgrading to BDS Glide-Ride leaf springs will provide flexibility throughout the suspension cycle.

Steering Correction

To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.

• Front Lift Method: Leaf Spring
• Rear Lift Method: Block
• Shocks Included: Yes
• Front Lift Height: 4 inch
• Rear Lift Height: 3 inch

1. These trucks were manufactured with two different style front u-bolts. You will need to know if your front leaf spring u-bolts are square or are half way between round and square with a gentle radius around the OE cast u-bolt plate before ordering.
2. Vehicles produced before 3/1/99 require a different box kit. You must check the production date on the door prior to ordering.
3. The Superduty came from the factory with a 2 inch, 3 inch, or 4 inch rear block. If you wish to truly level your vehicle it may be necessary to change the rear OE block.
4. Will not fit dually applications.
5. These trucks were produced both with and without a top mounted over load spring. There is an extra leaf that mounts on top of the rear leaf pack. You will need to know how your truck is equipped before ordering.
6. If your vehicle is equipped with a carrier bearing, you will want the 123402 drop kit in the accessories section.

• Easy, 100 percent Bolt-on installation
• Glideride leaf springs to provide full lift height and increased capacity
• Track bar relocation bracket and pitman arm maintains proper steering angles for improved handling
• Cast steel blocks provide level stance from front to rear
• Standard NX2 Nitro shocks with vehicle-specific valving for better control
• Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road

Front U-Bolt Type Radius

This vehicle was manufactured with either square front U-Bolts or radiused front U-bolts. Typically, 1999-2000 are square and 2001-2004 are radiused, but that is not always the case.

The radiused U-bolts aren't square or round, but rather have a gentle radius that matches a cast factory upper U-bolt plate on top of the factory spring. Vehicles manufactured prior to 2-28-99 require yet another different box kit due to a change in the factory track bar. Please make the appropriate selection for your particular vehicle.

Rear Lift Option Without Factory Overload

Select rear box kit based on whether or not your RAM has factory Rear Overload Leaf.

Shock Option NX2 Nitro Series

• Nitrogen-charged
• Twin-tube design
• 10-stage velocity-sensitive valving
• Dual-welded ends for increased strength
• 1-3/8-inch high-flow piston
• Self-lubricating seals
• Silver powder coat finish

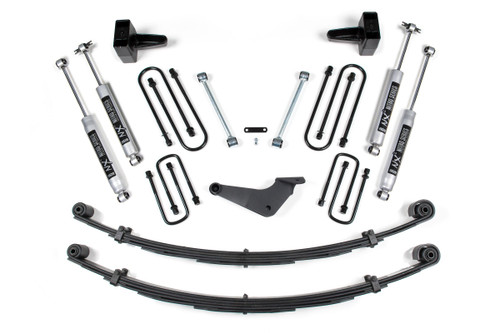

Kit Components:

• Includes two BDS003402, Ford F250/350 4 Inch Front Spring, UPC Code 658848611348
• Includes one BDS013329, 1999-2007 Ford F250/F350 Rear Box Kit w/o overload, UPC Code 658848613304
• Includes one BDS013405, 00-01 Ford F250/350 4 Inch Front Bx Kt w/cu, UPC Code 658848613380
• Includes two BDS85650, Shock- 26.20 x 15.80 x 2-3/8 - EB1/EB1, UPC Code 711745609457
• Includes two BDS85760, Shock- 33.00 x 19.25 x 2-3/8 - EB1/EB1, UPC Code 711745609693

Elevate the performance and aesthetics of your 1999-2004 Ford F250 or F350 Super Duty with the BDS SUSPENSION BDS321H 4 Inch Lift Kit. This comprehensive lift kit is meticulously designed to enhance your truck’s stance, capability, and overall driving experience. With the ability to accommodate up to 35-inch tires, it transforms your vehicle, providing an aggressive look and improved off-road prowess.

The kit features BDS's innovative Glide-Ride leaf springs that utilize a unique multi-leaf progressive spring rate design. This construction ensures a smooth ride regardless of load, offering flexibility throughout the suspension cycle. The front lift setup includes essential components such as a forged drop pitman arm and a track bar bracket that optimize steering geometry, reduce steering angles, and maintain axle centering during suspension travel.

At the rear, high-strength lift blocks and longer U-bolts work in harmony with the included NX2 Nitro or optional FOX Performance shocks, ensuring superior dampening and control over various terrains. Each shock is nitrogen-charged and boasts a 10-stage velocity-sensitive valving system, promoting unmatched handling in both on and off-road conditions.

Installation is user-friendly, requiring no additional modifications for a seamless bolt-on fit. This kit is designed to ensure proper handling with a level stance, making it ideal for both work and recreational use. It's essential to verify your truck's specific U-bolt style and production date to ensure compatibility, while factors such as factory overload leaf springs will dictate the appropriate rear box kit selection.

With the BDS SUSPENSION BDS321H Lift Kit, you can confidently tackle any adventure, backed by a trusted suspension brand renowned for quality and durability.
