BDS SUSPENSION BDS320H 2 INCH LEVELING KIT FORD F250/F350 SUPER DUTY 99-04 4WD RADIUS FRONT U BOLT NX2 NITRO SHOCKS

Improve the ride and level out your 1999-2004 Ford F250 and F350 Super Duty truck with this 2-inch leveling kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 33 inch Tires.

Up front the lift kit includes Glide-Ride leaf springs, track bar bracket for steering correction, extended sway bar links and custom-tuned nitrogen charged shocks. In the rear this kit utilizes a matching set of NX2 Nitro or FOX Performance shocks.

Glide-Ride Leaf Springs

Built to outperform, BDS engineered the Glide-Ride leaf springs into a multi-leaf progressive spring rate design that provides a smooth ride with any load. This is accomplished with an exclusive triple-stage leaf spring design. Upgrading to BDS Glide-Ride leaf springs will provide flexibility throughout the suspension cycle.

• Front Lift Method: Leaf Spring
• Rear Lift Method: Stock
• Shocks Included: Yes
• Front Lift Height: 2 Inch
• Rear Lift Height: 0 Inch

1. These truck were manufactured with two different style front u-bolts. You will need to know if your front leaf spring u-bolts are square or are half way between round and square with a gentle radius around the OE cast u-bolt plate before ordering.
2. Will not fit vehicles manufactured before 3/1/99.
3. The stock Super Duty came with a rear 2 Inch, 3 Inch, or 4 Inch rear block. You may need to change the block and/or u-bolts in order to level the truck.
4. 003202, #003402, #003602, #003609, #003802, and #003809 come with OE rubber bushings installed
5. Confirm build date, front u-bolt type and rear leaf pack overload position before ordering

• Easy, 100 percent Bolt-on installation
• Glideride leaf springs to provide full lift height and increased capacity
• Track bar relocation bracket maintains proper steering angles for improved handling
• Standard NX2 Nitro shocks with vehicle-specific valving for better control
• Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road

Front U-Bolt Type - Radius

This vehicle was manufactured with either square front U-Bolts or radiused front U-bolts. Typically, 1999-2000 are square and 2001-2004 are radiused, but that is not always the case.

The radiused U-bolts aren't square or round, but rather have a gentle radius that matches a cast factory upper U-bolt plate on top of the factory spring. Vehicles manufactured prior to 2-28-99 require yet another different box kit due to a change in the factory track bar.

Shock Option NX2 Nitro Series

• Nitrogen-charged
• Twin-tube design
• 10-stage velocity-sensitive valving
• Dual-welded ends for increased strength
• 1-3/8-inch high-flow piston
• Self-lubricating seals
• Silver powder coat finish

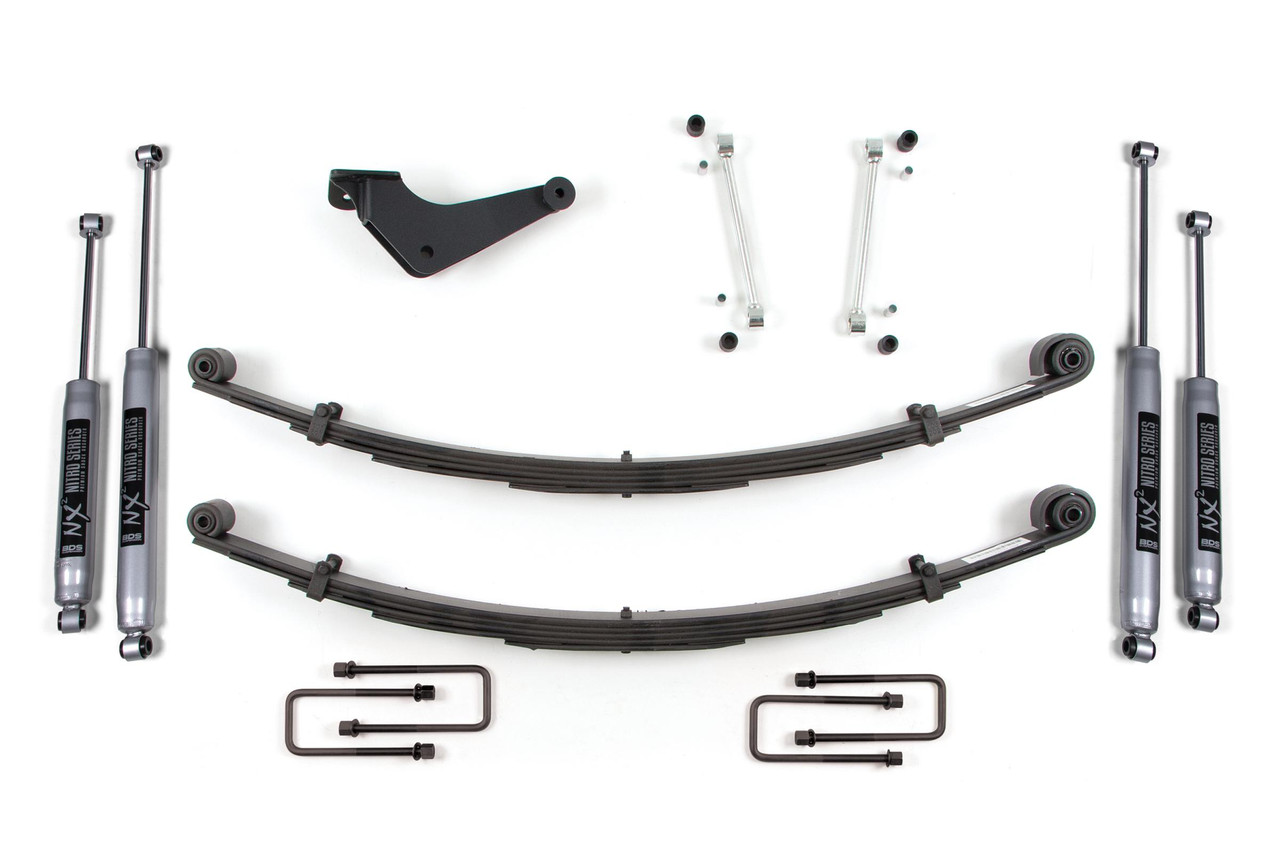

Kit Components:

• Includes two BDS003202, Ford F250/350 2 Inch Front Spring, UPC Code 658848611317
• Includes one BDS013253, Ford F250/350 2.5 InchFront Box Kit, UPC Code 658848613205
• Includes two BDS85650, Shock- 26.20 x 15.80 x 2-3/8 - EB1/EB1, UPC Code 711745609457
• Includes two BDS85660, Shock- 29.80 x 17.60 x 2-3/8 - EB1/EB1, UPC Code 711745609471

The BDS SUSPENSION BDS320H 2 Inch Leveling Kit is the perfect upgrade for 1999-2004 Ford F250 and F350 Super Duty 4WD trucks. This comprehensive kit is expertly designed to enhance your vehicle’s stance, performance, and overall capability, allowing for larger tires up to 33 inches. With a straightforward, 100% bolt-on installation, transforming your truck has never been easier.

At the core of this leveling kit are the innovative Glide-Ride leaf springs. These multi-leaf progressive springs offer an exceptional riding experience, effectively cushioning any load thanks to their exclusive triple-stage design. The front lift height is set at a convenient 2 inches, while the rear maintains stock height, ensuring a balanced look and feel.

Incorporating a track bar relocation bracket, this kit helps maintain correct steering angles, crucial for improved handling during on and off-road adventures. The inclusion of custom-tuned NX2 Nitro shocks—featuring nitrogen charging, dual-welded ends for heightened durability, and 10-stage velocity-sensitive valving—ensures optimal control and comfort irrespective of driving conditions.

Compatibility details are vital; the kit addresses variations in front U-bolt styles, ensuring an accurate fit for your specific model year. Vehicles manufactured before March 1, 1999, may require additional modifications, so please confirm the build date and type before purchase.

Experience the enhanced drive quality, robust build, and striking upgrade your Ford Super Duty deserves with the BDS SUSPENSION BDS320H 2 Inch Leveling Kit. The combination of BDS engineered components guarantees reliability and performance, providing both aesthetic appeal and functional improvements to your heavy-duty truck. Drive confidently, knowing your vehicle is equipped for any challenge ahead.
