BDS SUSPENSION BDS313H 2 INCH LEVELING KIT FORD F250/F350 SUPER DUTY 99-04 4WD SQUARE FRONT U BOLT NX2 NITRO SHOCKS

Improve the ride and level out your 1999-2004 Ford F250 and F350 Super Duty truck with this 2-inch leveling kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 33 inch Tires.

Up front the lift kit includes Glide-Ride leaf springs, track bar bracket for steering correction, extended sway bar links and custom-tuned nitrogen charged shocks. In the rear this kit utilizes a matching set of NX2 Nitro or FOX Performance shocks.

Glide-Ride Leaf Springs

Built to outperform, BDS engineered the Glide-Ride leaf springs into a multi-leaf progressive spring rate design that provides a smooth ride with any load. This is accomplished with an exclusive triple-stage leaf spring design. Upgrading to BDS Glide-Ride leaf springs will provide flexibility throughout the suspension cycle.

• Front Lift Method: Leaf Spring
• Rear Lift Method: Stock
• Shocks Included: Yes
• Front Lift Height: 2 Inch
• Rear Lift Height: 0 Inch

1. These truck were manufactured with two different style front u-bolts. You will need to know if your front leaf spring u-bolts are square or are half way between round and square with a gentle radius around the OE cast u-bolt plate before ordering.
2. Will not fit vehicles manufactured before 3/1/99.
3. The stock Super Duty came with a rear 2 Inch, 3 Inch, or 4 Inch rear block. You may need to change the block and/or u-bolts in order to level the truck.
4. 003202, #003402, #003602, #003609, #003802, and #003809 come with OE rubber bushings installed
5. Confirm build date, front u-bolt type and rear leaf pack overload position before ordering

• Easy, 100 percent Bolt-on installation
• Glideride leaf springs to provide full lift height and increased capacity
• Track bar relocation bracket maintains proper steering angles for improved handling
• Standard NX2 Nitro shocks with vehicle-specific valving for better control
• Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road

Front U-Bolt Type - Square

This vehicle was manufactured with either square front U-Bolts or radiused front U-bolts. Typically, 1999-2000 are square and 2001-2004 are radiused, but that is not always the case.

The radiused U-bolts aren't square or round, but rather have a gentle radius that matches a cast factory upper U-bolt plate on top of the factory spring. Vehicles manufactured prior to 2-28-99 require yet another different box kit due to a change in the factory track bar.

Shock Option NX2 Nitro Series

• Nitrogen-charged
• Twin-tube design
• 10-stage velocity-sensitive valving
• Dual-welded ends for increased strength
• 1-3/8-inch high-flow piston
• Self-lubricating seals
• Silver powder coat finish

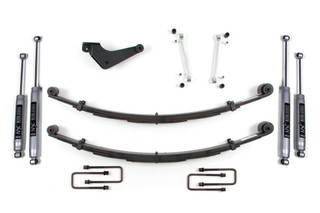

Kit Components:

• Includes two BDS003202, Ford F250/350 2 Inch Front Spring, UPC Code 658848611317
• Includes one BDS013252, Ford F250/350 2.5 InchFront Box Kit, UPC Code 658848613199
• Includes two BDS85650, Shock- 26.20 x 15.80 x 2-3/8 - EB1/EB1, UPC Code 711745609457
• Includes two BDS85660, Shock- 29.80 x 17.60 x 2-3/8 - EB1/EB1, UPC Code 711745609471

Enhance the performance and appearance of your 1999-2004 Ford F250 or F350 Super Duty truck with the BDS Suspension BDS313H 2 Inch Leveling Kit. Crafted for 4WD models, this leveling kit is engineered to improve the stance and functionality of your truck, allowing you to confidently accommodate tires up to 33 inches in diameter.

This comprehensive kit features BDS's innovative Glide-Ride leaf springs, offering a multi-leaf progressive spring rate design. This design results in a smoother ride quality, whether you're hauling heavy loads or navigating uneven terrain. The inclusion of a track bar relocation bracket ensures your steering geometry remains optimal, enhancing handling and control. Additionally, extended sway bar links and custom-tuned nitrogen charged shocks are included to further maximize performance.

The rear side of the kit utilizes the premium NX2 Nitro shocks, recognized for their responsive damping capabilities. These nitrogen-charged, twin-tube shocks come equipped with advanced features, such as 10-stage velocity-sensitive valving and dual-welded ends, ensuring durability and longevity on or off-road.

Installation of the BDS Suspension leveling kit is straightforward, boasting a 100% bolt-on process that eliminates the need for complex modifications. It is important to verify the type of front U-bolts your truck has, as Ford manufactured models with either square or radiused U-bolts.

Packed with all necessary components, including front springs and high-performance shocks, this leveling kit not only elevates your vehicle's appearance but also enhances its overall capability and ride quality. Trust BDS Suspension to elevate your driving experience as you take on any adventure with confidence.
