BDS SUSPENSION BDS311H 6 INCH LIFT KIT FORD F250/F350 SUPER DUTY 99-04 4WD SQUARE PRIOR TO 2-28-99 LEAF SPRINGS W/ NX2 NITRO SHOCKS

Take your 1999-2004 Ford F250 and F350 Super Duty truck to the next level with this 6-inch lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 36 inch tires.

Up front the lift kit includes Glide-Ride leaf springs, forged drop pitman arm and track bar bracket for steering correction, sway bar links, bump stop brackets and precision tuned NX2 or FOX nitrogen charged shocks.

In the rear the base kit utilizes a high-strength lift block, longer u-bolts and a matching set of NX2 Nitro or FOX Performance shocks. Optional replacement full leaf spring packs for an improved ride on or off-road.

Glide-Ride Leaf Springs
Built to outperform, BDS engineered the Glide-Ride leaf springs into a multi-leaf progressive spring rate design that provides a smooth ride with any load. This is accomplished with an exclusive triple-stage leaf spring design. Upgrading to BDS Glide-Ride leaf springs will provide flexibility throughout the suspension cycle.

Steering Correction
To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.

Features & Benefits

• Easy, 100 percent Bolt-on installation
• Glideride leaf springs to provide full lift height and increased capacity
• Track bar relocation bracket and pitman arm maintains proper steering angles for improved handling
• Cast steel blocks provide level stance from front to rear
• Standard NX2 Nitro shocks with vehicle-specific valving for better control
• Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road

Recommended Tires & Wheels

• (Trimming may be required)
• 36 x 12.5 with 16 x 10 and 4 in. Backspace

Front U-Bolt Type

• Square U Bolt Prior to 2-28-99

This vehicle was manufactured with either square front U-Bolts or radiused front U-bolts. Typically, 1999-2000 are square and 2001-2004 are radiused, but that is not always the case.

The radiused U-bolts aren't square or round, but rather have a gentle radius that matches a cast factory upper U-bolt plate on top of the factory spring. Vehicles manufactured prior to 2-28-99 require yet another different box kit due to a change in the factory track bar.

• Front Lift Method : Leaf Spring
• Rear Lift Method : Block & Add-A-Leaf
• Shocks Included : Yes
• Front Lift Height : 6 inch
• Rear Lift Height : 5 inch

Rear Lift Option
Leaf Springs

• Reduces axle wrap and creates a more controlled and stable feel.
• Multi-leaf progressive design for a smooth ride.
• Maintains factory payload weight ratings.

Shock Option

NX2 Nitro Series

• Nitrogen-charged
• Twin-tube design
• 10-stage velocity-sensitive valving
• Dual-welded ends for increased strength
• 1-3/8-inch high-flow piston
• Self-lubricating seals
• Silver powder coat finish

Notes: These truck were manufactured with two different style front u-bolts. You will need to know if your front leaf spring u-bolts are square or are half way between round and square with a gentle radius around the OE cast u-bolt plate before ordering.

Vehicles produced before 3/1/99 require a different box kit. You must check the production date on the door prior to ordering.
The Superduty came from the factory with a 2 inch, 3 inch, or 4 inch rear block. If you wish to truly level your vehicle it may be necessary to change the rear OE block.
Will not fit dually applications.
If your vehicle is equipped with a carrier bearing, you will want the 123402 drop kit in the options section.
The front driveshaft will need to be lengthened and/or clearance ground depending on how the vehicle is equipped.

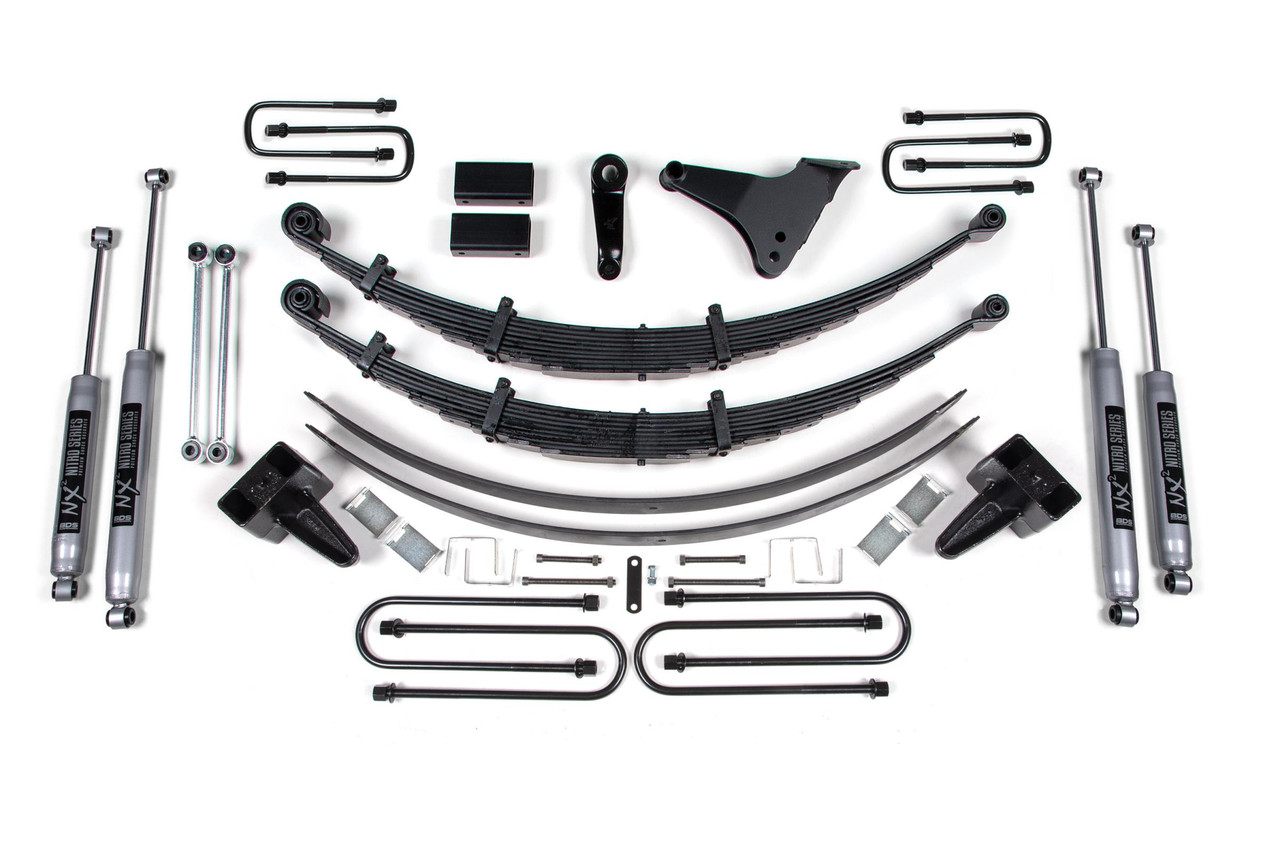

Kit Components:

• Includes two BDS003602, Ford F250/350 6 Inch Front Spring, UPC Code 658848611362
• Includes two BDS003609, Ford F250/350 6 Inch Rear Spring, UPC Code 658848611386
• Includes one BDS013004, Pre 2/99 Ford F250/350 6&8in Front Bx Kt, UPC Code 658848612949
• Includes one BDS013009, Ford F250/350 6&8in Rear Box Kit, UPC Code 658848612987
• Includes two BDS85660, Shock- 29.80 x 17.60 x 2-3/8 - EB1/EB1, UPC Code 711745609471
• Includes two BDS85760, Shock- 33.00 x 19.25 x 2-3/8 - EB1/EB1, UPC Code 711745609693

Enhance your 1999-2004 Ford F250 and F350 Super Duty truck with the BDS Suspension BDS311H 6-inch Lift Kit, a perfect blend of strength, performance, and style. Designed specifically for 4WD models with square leaf springs manufactured prior to February 28, 1999, this lift kit elevates your vehicle, providing the clearance necessary for tires up to 36 inches.

The kit features BDS’s advanced Glide-Ride leaf springs that are engineered with a multi-leaf progressive spring rate design. This innovative feature not only offers a smooth ride, irrespective of the load but also ensures flexibility throughout the suspension cycle. Additionally, a forged drop pitman arm and a heavy-duty track bar bracket are included to optimize steering geometry, enhancing your truck’s handling and stability on both on-road and off-road terrains.

Designed for easy installation, this lift kit is a 100% bolt-on application, eliminating the need for extensive modifications. The rear configuration utilizes high-strength lift blocks and longer u-bolts, combined with NX2 Nitro or FOX Performance shocks to elevate the driving experience further. The NX2 Nitrogen-charged shocks feature vehicle-specific valving and a twin-tube design, delivering responsive control and enhanced durability.

For those desiring an even better off-road experience, an upgrade to the FOX 2.0 Performance Series shocks is available, maximizing the performance capabilities of your truck. This lift kit maintains factory payload ratings while providing a balanced stance thanks to the cast steel blocks ensuring a leveled front-to-rear profile.

Please consult your vehicle's manufacturing details, specifically regarding front U-bolts and production dates, to ensure a perfect fit. Transform your truck into a rugged powerhouse, ready to tackle any challenge with the BDS Suspension BDS311H 6-inch Lift Kit.
