BDS SUSPENSION BDS309FS 4 INCH LIFT KIT FORD F250/F350 SUPER DUTY 99-04 4WD SQUARE U BOLT PRIOR 2-28-99 WITHOUT FACTORY OVERLOAD FOX 2.0 PERFORMANCE

Update the style of your 1999-2004 Ford F250 and F350 Super Duty diesel truck with this 4-inch lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35 inch Tires.

Up front the lift kit includes Glide-Ride leaf springs, forged drop pitman arm and track bar bracket for steering correction, sway bar links, bump stop brackets and precision tuned NX2 or FOX nitrogen charged shocks.

In the rear this kit utilizes a high-strength lift block, longer u-bolts and a matching set of NX2 Nitro or FOX Performance shocks.

Glide-Ride Leaf Springs

Built to outperform, BDS engineered the Glide-Ride leaf springs into a multi-leaf progressive spring rate design that provides a smooth ride with any load. This is accomplished with an exclusive triple-stage leaf spring design. Upgrading to BDS Glide-Ride leaf springs will provide flexibility throughout the suspension cycle.

Steering Correction

To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.

• Front Lift Method: Leaf Spring
• Rear Lift Method: Block
• Shocks Included: Yes
• Front Lift Height: 4 inch
• Rear Lift Height: 3 inch

1. These trucks were manufactured with two different style front u-bolts. You will need to know if your front leaf spring u-bolts are square or are half way between round and square with a gentle radius around the OE cast u-bolt plate before ordering.
2. Vehicles produced before 3/1/99 require a different box kit. You must check the production date on the door prior to ordering.
3. The Superduty came from the factory with a 2 inch, 3 inch, or 4 inch rear block. If you wish to truly level your vehicle it may be necessary to change the rear OE block.
4. Will not fit dually applications.
5. These trucks were produced both with and without a top mounted over load spring. There is an extra leaf that mounts on top of the rear leaf pack. You will need to know how your truck is equipped before ordering.
6. If your vehicle is equipped with a carrier bearing, you will want the 123402 drop kit in the accessories section.

• Easy, 100 percent Bolt-on installation
• Glideride leaf springs to provide full lift height and increased capacity
• Track bar relocation bracket and pitman arm maintains proper steering angles for improved handling
• Cast steel blocks provide level stance from front to rear
• Standard NX2 Nitro shocks with vehicle-specific valving for better control
• Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road

Front U-Bolt Type Square - MFg Prior to 2-28-99

This vehicle was manufactured with either square front U-Bolts or radiused front U-bolts. Typically, 1999-2000 are square and 2001-2004 are radiused, but that is not always the case.

The radiused U-bolts aren't square or round, but rather have a gentle radius that matches a cast factory upper U-bolt plate on top of the factory spring. Vehicles manufactured prior to 2-28-99 require yet another different box kit due to a change in the factory track bar. Please make the appropriate selection for your particular vehicle.

Rear Lift Option Without Factory Overload

Select rear box kit based on whether or not your RAM has factory Rear Overload Leaf.

Shock Option

FOX 2.0 Performance Series

• 2-inch Impact extruded aluminum body
• Internal floating piston (Internal Floating Piston) monotube design
• CNC machined 6061-T6 aluminum mounting ends
• Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• Long-lasting clear anodized finish

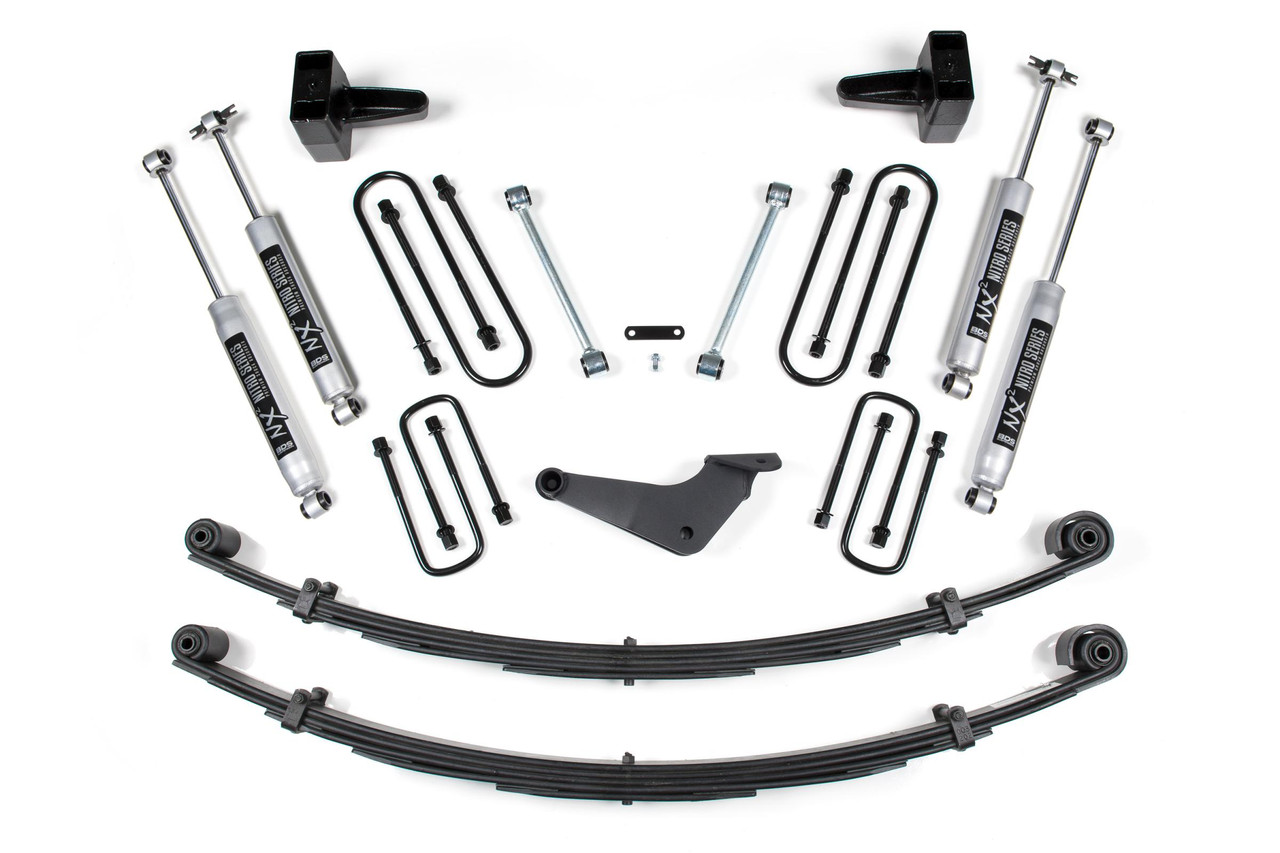

Kit Components:

• Includes two BDS003402, Ford F250/350 4 Inch Front Spring, UPC Code 658848611348
• Includes one BDS013329, 1999-2007 Ford F250/F350 Rear Box Kit w/o overload, UPC Code 658848613304
• Includes one BDS013402, Pre 2/99 Ford F250/350 4 Inch Front Box Kit, UPC Code 658848613359
• Includes two FOX98224650, Fox 2.0 Shock 26.85 x 16.75 x 2- EB1/EB1
• Includes two FOX98224760, Fox 2.0 Shock 33.85 x 20.75 x 2- EB1/EB1

Transform your 1999-2004 Ford F250 or F350 Super Duty into an off-road powerhouse with the BDS Suspension BDS309FS 4-Inch Lift Kit. Designed specifically for 4WD models without factory overload, this kit elevates your truck’s stance, enhancing both performance and aesthetic appeal. Achieve the perfect balancing act between style and capability, allowing your vehicle to accommodate tires up to 35 inches.

The front of the kit boasts BDS's innovative Glide-Ride leaf springs, expertly crafted with a multi-leaf progressive spring rate design. This unique configuration ensures a smooth ride, no matter the load, thanks to its exclusive triple-stage design that offers enhanced flexibility throughout the suspension cycle. Steering capabilities are optimized with a high-strength forged drop pitman arm, paired with a precision-engineered track bar bracket that maintains proper axle alignment during suspension travel.

At the rear, the lift kit features robust lift blocks and longer u-bolts, completed by a premium set of NX2 Nitro or optional FOX 2.0 Performance Series shocks. These shocks not only provide exceptional control on and off the road but are also designed with vehicle-specific valving to maximize performance.

Installation of the BDS309FS kit is simple and straightforward, utilizing 100% bolt-on components. Both the track bar relocation bracket and pitman arm ensure that steering angles are maintained for improved handling and safety.

Please note the importance of verifying specific details about your truck, such as the front u-bolt type and factory overload leaf options, to confirm compatibility before ordering. Elevate your driving experience with this comprehensive lift kit, meticulously engineered for durability and performance. Whether on rugged trails or city streets, the BDS Suspension BDS309FS Lift Kit is the perfect upgrade for those looking to enhance their early model Super Duty.
