BDS SUSPENSION BDS308FS 4 INCH LIFT KIT FORD F350 MONOBEAM 80-96 4WD FOX 2.0 PERFORMANCE SHOCKS

Take your 1980-1996 Ford F350 Monobeam 4WD truck to the next level with this 4-inch lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35 inch Tires.

Up front the lift kit includes Glide-Ride leaf springs, forged drop pitman arm and track bar bracket for steering correction, and precision tuned NX2 or FOX nitrogen charged shocks.

In the rear this kit utilizes a high-strength lift block, longer u-bolts and a matching set of NX2 Nitro or FOX Performance shocks.

Glide-Ride Leaf Springs

Built to outperform, BDS engineered the Glide-Ride leaf springs into a multi-leaf progressive spring rate design that provides a smooth ride with any load. This is accomplished with an exclusive triple-stage leaf spring design. Upgrading to BDS Glide-Ride leaf springs will provide flexibility throughout the suspension cycle.

• Front Lift Method: Leaf Spring
• Rear Lift Method: Block
• Shocks Included: Yes
• Front Lift Height: 4 inch
• Rear Lift Height: 3 inch

1. This system is designed for a front solid axle style suspension only. The kit will not work on Twin-Traction Beam applications.

• Easy, 100 percent Bolt-on installation
• Glideride leaf springs to provide full lift height and increased capacity
• Track bar relocation bracket and pitman arm maintains proper steering angles for improved handling
• Cast steel blocks provide level stance from front to rear
• Standard NX2 Nitro shocks with vehicle-specific valving for better control
• Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road

Shock Option

FOX 2.0 Performance Series

• 2-inch Impact extruded aluminum body
• Internal floating piston (Internal Floating Piston) monotube design
• CNC machined 6061-T6 aluminum mounting ends
• Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• Long-lasting clear anodized finish

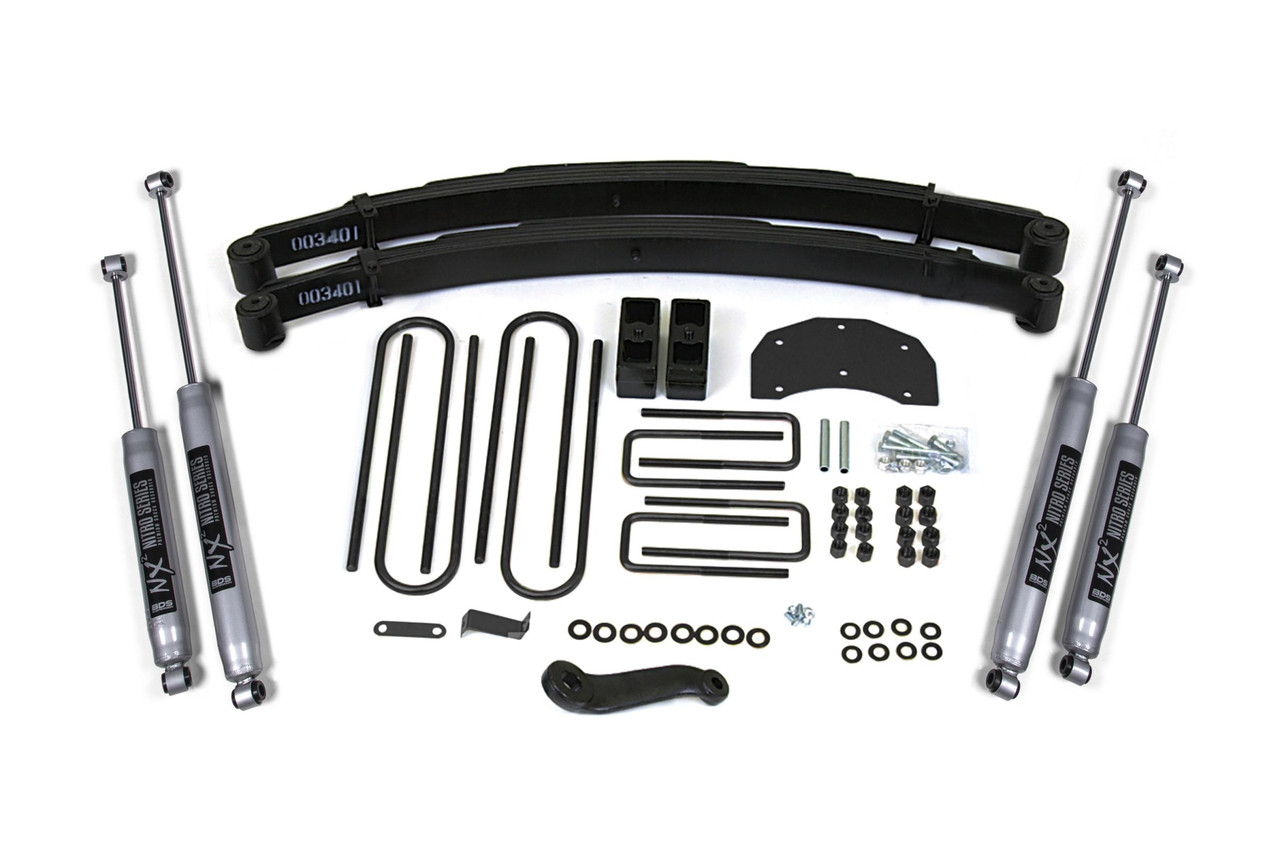

Kit Components:

• Includes two BDS003401, 80-96 Ford F250 Gas 4 Inch Front Spring, UPC Code 658848611331
• Includes one BDS013308, 86-97 Ford F350 3in Rear Block&Ubolt Kit, UPC Code 658848613267
• Includes one BDS013403, 86-96 Ford F350 Front Box Kit, UPC Code 658848613366
• Includes one BDS083401, Ford F150/Bron/Rang Pitman Arm - PS, UPC Code 658848618279
• Includes two FOX98224650, Fox 2.0 Shock 26.85 x 16.75 x 2- EB1/EB1
• Includes two FOX98224660, Fox 2.0 Shock 30.05 x 18.45 x 2- EB1/EB1

Elevate your 1980-1996 Ford F350 Monobeam 4WD truck with the BDS308FS 4-inch Lift Kit from BDS Suspension, designed for enhanced performance and improved aesthetics. This comprehensive lift kit transforms your truck, offering ample clearance for up to 35-inch tires, ensuring you conquer any terrain with confidence.

At the forefront of this lift kit are the innovative Glide-Ride leaf springs. Engineered with a multi-leaf progressive spring rate design, these springs provide a remarkably smooth ride, regardless of the load. The exclusive triple-stage design enhances flexibility throughout the suspension cycle, allowing for exceptional handling and control.

Installation is straightforward, featuring a 100% bolt-on setup that caters specifically to front solid axle suspensions. The kit includes a forged drop pitman arm and a track bar relocation bracket, which maintain proper steering angles and optimize handling. The addition of standard NX2 Nitro shocks with vehicle-specific valving ensures better control, while the option to upgrade to FOX 2.0 Performance Series shocks provides maximum performance both on and off-road.

In the rear, the high-strength lift block and longer U-bolts ensure a level stance from front to rear, making your truck stand out while also enhancing performance. Safety and reliability are paramount, with cast steel blocks providing durability throughout rides.

The BDS308FS Lift Kit comprises essential components, including front and rear springs and shocks, each meticulously crafted to meet rigorous standards. Experience superior capability, improved stance, and the freedom to tackle diverse terrains with the BDS SUSPENSION BDS308FS 4 INCH LIFT KIT for your Ford F350.
