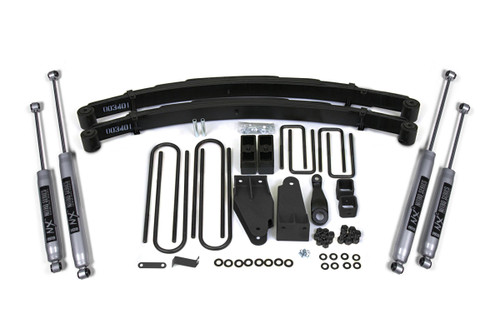

BDS SUSPENSION BDS306H 4 INCH LIFT KIT FORD F250 TTB 87-96 4WD NX2 NITRO SHOCKS

Update the style of your 1980-1996 Ford F250 TTB 4WD truck with this 4-inch lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35 inch Tires.

Up front the lift kit includes Glide-Ride leaf springs, axle pivot drop brackets, forged drop pitman arm for steering correction, bump stop brackets and precision tuned NX2 or FOX nitrogen charged shocks.

In the rear this kit utilizes a high-strength lift block, longer u-bolts and a matching set of NX2 Nitro or FOX Performance shocks.

Glide-Ride Leaf Springs

Built to outperform, BDS engineered the Glide-Ride leaf springs into a multi-leaf progressive spring rate design that provides a smooth ride with any load. This is accomplished with an exclusive triple-stage leaf spring design. Upgrading to BDS Glide-Ride leaf springs will provide flexibility throughout the suspension cycle.

• Front Lift Method: Leaf Spring
• Rear Lift Method: Block
• Shocks Included: Yes
• Front Lift Height: 4 inch
• Rear Lift Height: 3 inch

1. This system is designed for Twin-Traction Beam style suspension only. The kit will not work on front solid axle applications.

2. In some cases a pair of alignment cam BDS129102 may be required to achieve proper caster and camber alignment specifications.

• Easy, 100 percent Bolt-on installation
• Glideride leaf springs to provide full lift height and increased capacity
• Pitman arm maintains proper steering angles for improved handling
• Cast steel blocks provide level stance from front to rear
• Standard NX2 Nitro shocks with vehicle-specific valving for better control
• Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road

Shock Option NX2 Nitro Series

• Nitrogen-charged
• Twin-tube design
• 10-stage velocity-sensitive valving
• Dual-welded ends for increased strength
• 1-3/8-inch high-flow piston
• Self-lubricating seals
• Silver powder coat finish

Kit Components:

• Includes two BDS003401, 80-96 Ford F250 Gas 4 Inch Front Spring, UPC Code 658848611331
• Includes one BDS013309, 80-96 Ford F250 3in Rear Box Kit, UPC Code 658848613274
• Includes one BDS013401, 80-96 Ford F250 4 Inch Front Box Kit, UPC Code 658848613342
• Includes two BDS85650, Shock- 26.20 x 15.80 x 2-3/8 - EB1/EB1, UPC Code 711745609457
• Includes two BDS85660, Shock- 29.80 x 17.60 x 2-3/8 - EB1/EB1, UPC Code 711745609471

Transform the performance and style of your 1980-1996 Ford F250 TTB 4WD truck with the BDS SUSPENSION BDS306H 4 Inch Lift Kit. Specifically crafted to elevate your vehicle's stance, this lift kit enhances off-road capability, allowing for the installation of larger tires up to 35 inches. Built with precision engineering, it features an array of components designed to improve handling and ride quality, ensuring both a smooth drive on highways and rugged terrain.

The front suspension is fortified with Glide-Ride leaf springs, designed for progressive spring rates that adapt to varying loads, delivering a superior riding experience. Accompanied by axle pivot drop brackets, a forged drop pitman arm for steering correction, and bump stop brackets, the front assembly is optimized for performance. The precision-tuned NX2 Nitro or FOX shocks seamlessly complement this setup.

In the rear, a robust lift block and longer u-bolts enhance the lift, paired with NX2 Nitro or FOX shocks. This combination delivers a consistent ride height and maintains a balanced stance, ensuring your truck stands proud both on and off-road.

Installation is effortless, utilizing a 100% bolt-on design and requiring no cutting or welding. Custom alignment cams (BDS129102) may be necessary for precise alignment. The included shocks are nitrogen-charged with a twin-tube design, featuring 10-stage velocity-sensitive valving for enhanced control and responsiveness.

Kit components are engineered for durability and performance, making this lift kit a remarkable investment in your Ford F250. Elevate not just the height but the overall experience of your truck with the BDS306H Lift Kit – where rugged meets refined.
