BDS SUSPENSION
BDS SUSPENSION BDS306FS 4 INCH LIFT KIT FORD F250 TTB 87-96 4WD FOX 2.0 PERFORMANCE SHOCKS
- SKU:
- BDS306FS
- MPN:
- BDS306FS
- Shipping:
- Calculated at Checkout
Description
Update the style of your 1980-1996 Ford F250 TTB 4WD truck with this 4-inch lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35 inch Tires.
Up front the lift kit includes Glide-Ride leaf springs, axle pivot drop brackets, forged drop pitman arm for steering correction, bump stop brackets and precision tuned NX2 or FOX nitrogen charged shocks.
In the rear this kit utilizes a high-strength lift block, longer u-bolts and a matching set of NX2 Nitro or FOX Performance shocks.
Glide-Ride Leaf Springs
Built to outperform, BDS engineered the Glide-Ride leaf springs into a multi-leaf progressive spring rate design that provides a smooth ride with any load. This is accomplished with an exclusive triple-stage leaf spring design. Upgrading to BDS Glide-Ride leaf springs will provide flexibility throughout the suspension cycle.
- Front Lift Method: Leaf Spring
- Rear Lift Method: Block
- Shocks Included: Yes
- Front Lift Height: 4 inch
- Rear Lift Height: 3 inch
- This system is designed for Twin-Traction Beam style suspension only. The kit will not work on front solid axle applications.
-
In some cases a pair of alignment cam BDS129102 may be required to achieve proper caster and camber alignment specifications.
- Easy, 100 percent Bolt-on installation
- Glideride leaf springs to provide full lift height and increased capacity
- Pitman arm maintains proper steering angles for improved handling
- Cast steel blocks provide level stance from front to rear
- Standard NX2 Nitro shocks with vehicle-specific valving for better control
- Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road
Shock Option
FOX 2.0 Performance Series
- 2-inch Impact extruded aluminum body
- Internal floating piston (Internal Floating Piston) monotube design
- CNC machined 6061-T6 aluminum mounting ends
- Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
- Race-developed high-flow piston design
- Application-specific valving to maximize performance
- Long-lasting clear anodized finish

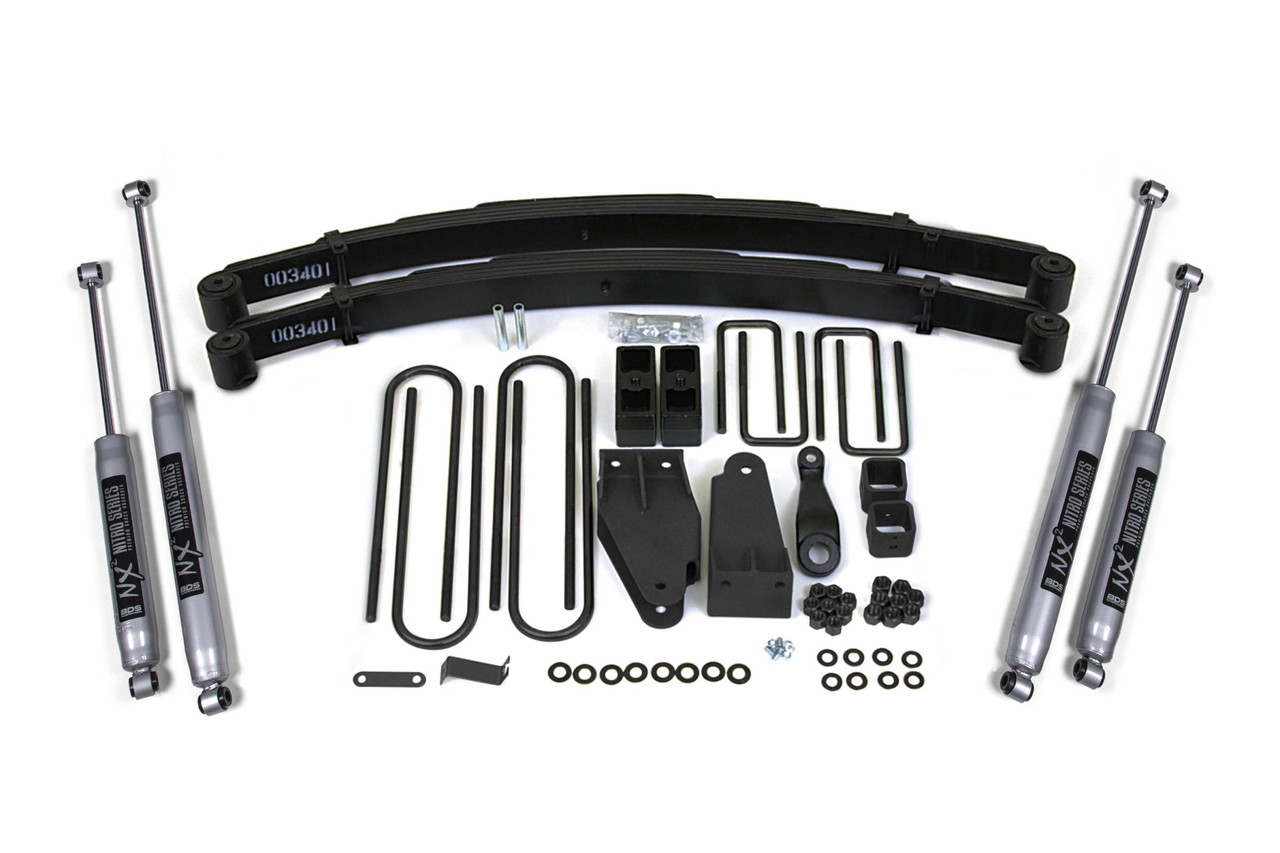

Kit Components:
- Includes two BDS003401, 80-96 Ford F250 Gas 4 Inch Front Spring, UPC Code 658848611331
- Includes one BDS013309, 80-96 Ford F250 3in Rear Box Kit, UPC Code 658848613274
- Includes one BDS013401, 80-96 Ford F250 4 Inch Front Box Kit, UPC Code 658848613342
- Includes two FOX98224650, Fox 2.0 Shock 26.85 x 16.75 x 2- EB1/EB1
- Includes two FOX98224660, Fox 2.0 Shock 30.05 x 18.45 x 2- EB1/EB1
Elevate your 1980-1996 Ford F250 TTB 4WD truck's performance and aesthetics with the BDS Suspension BDS306FS 4-Inch Lift Kit. Engineered for adventure, this comprehensive lift kit not only enhances your vehicle’s stance but also significantly improves its capability on and off the road. Designed for the Twin-Traction Beam suspension system, it allows for clearance to accommodate tires up to 35 inches, transforming your truck into a formidable off-road machine.
The front of the lift kit features Glide-Ride leaf springs that incorporate a sophisticated multi-leaf progressive design, ensuring a smooth ride regardless of load. Paired with axle pivot drop brackets and a forged drop pitman arm, this setup promotes improved steering geometry, contributing to a better overall driving experience. A set of precision-tuned NX2 or FOX nitrogen-charged shocks are included to optimize performance and handling.
In the rear, this kit employs a robust lift block and longer u-bolts, alongside a matching set of NX2 Nitro or FOX Performance shocks, providing excellent control and stability. The front lift is set at 4 inches while the rear adds an additional 3 inches, contributing to a balanced and level stance.
Installation is a breeze with a 100 percent bolt-on design, making it suitable for DIY enthusiasts and professional mechanics alike. For enhanced performance, consider upgrading to FOX 2.0 Performance Series shocks, known for their exceptional build quality and performance characteristics.
Overall, the BDS306FS Lift Kit is the ideal solution for those looking to enhance their Ford F250 with improved handling, style, and the capability to tackle any terrain while retaining a smooth ride. Experience the elevation your truck deserves and take your adventures to the next level.
