BDS SUSPENSION BDS301FS 4 INCH LIFT KIT FORD EXCURSION 00-05 4WD LEAF SPRINGS FOX 2.0 PERFORMANCE

Improve the ride and level out your 2000-2005 Ford Excursion with this 4-inch leveling kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 33 inch Tires.

Up front the lift kit includes Glide-Ride leaf springs, track bar bracket for steering correction, extended sway bar links and custom-tuned nitrogen charged shocks. In the rear this kit utilizes high strength lift blocks, longer u-bolts, and a matching set of NX2 Nitro or FOX Performance shocks.

Glide-Ride Leaf Springs

Built to outperform, BDS engineered the Glide-Ride leaf springs into a multi-leaf progressive spring rate design that provides a smooth ride with any load.

This is accomplished with an exclusive triple-stage leaf spring design. Upgrading to BDS Glide-Ride leaf springs will provide flexibility throughout the suspension cycle.

• Front Lift Method: Leaf Spring
• Rear Lift Method: Block
• Shocks Included: Yes
• Front Lift Height: 4 inch
• Rear Lift Height: 3 inch

1. Models with rear CV style driveshaft may experience drive line vibration.
2. If your vehicle is equipped with a rear anti-sway bar, you should consider the rear sway bar links available in the accessories section.

• Easy, 100 percent Bolt-on installation
• Pro-Ride dual rate coil springs provide a remarkable ride through any terrain
• Heavy duty 4-Link control arms offer improved handling, stability, strength and caster control during wheel travel
• Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling
• Glideride leaf springs to provide full lift height and increased capacity with a built in overload spring
• Standard NX2 Nitro shocks with vehicle-specific valving for better control
• Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road

Rear Lift Option

Leaf Springs

• Eliminates any need for a lift block.
• Reduces axle wrap and creates a more controlled and stable feel.
• Multi-leaf progressive design for a smooth ride.
• Maintains factory payload weight ratings.

Shock Option

FOX 2.0 Performance Series

• 2-inch Impact extruded aluminum body
• Internal floating piston (Internal Floating Piston) monotube design
• CNC machined 6061-T6 aluminum mounting ends
• Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• Long-lasting clear anodized finish

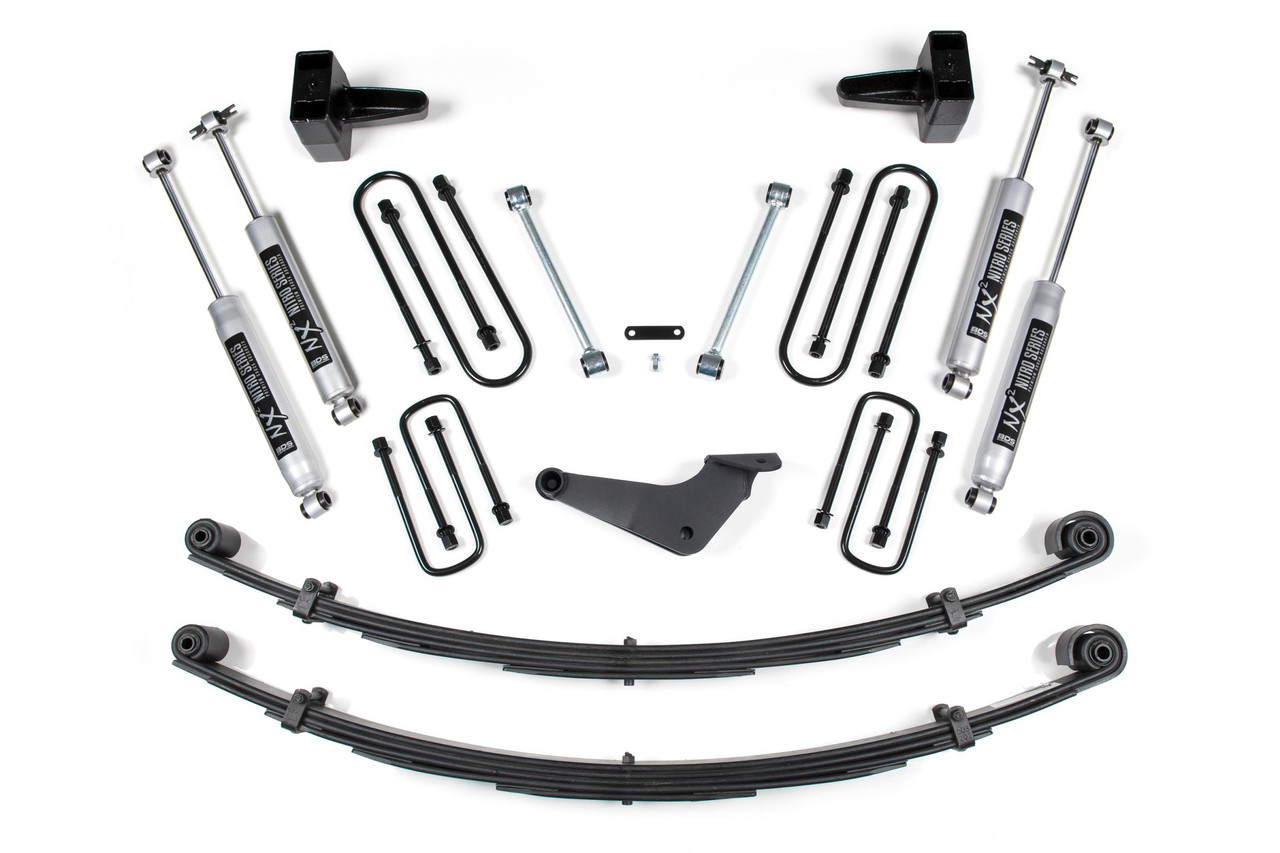

Kit Components:

• Includes two BDS003202, Ford F250/350 2 Inch Front Spring, UPC Code 658848611317
• Includes two BDS003609, Ford F250/350 6 Inch Rear Spring, UPC Code 658848611386
• Includes one BDS013253, Ford F250/350 2.5 InchFront Box Kit, UPC Code 658848613205
• Includes two FOX98224650, Fox 2.0 Shock 26.85 x 16.75 x 2- EB1/EB1
• Includes two FOX98224662, Fox 2.0 Shock 30.05 x 18.45 x 2- BP8/EB1
• Includes four UBT4032, 5/8 x 3-5/8 x 10 Round U-bolt, UPC Code 711745613300

Elevate your 2000-2005 Ford Excursion's performance and style with the BDS Suspension BDS301FS 4-Inch Lift Kit. This expertly designed lift kit enhances both the ride quality and overall capabilities of your vehicle, allowing you to install tires up to 33 inches for that commanding presence on and off the road.

The heart of this kit features BDS's proprietary Glide-Ride leaf springs. Engineered with a multi-leaf progressive spring rate design, these springs provide a smooth driving experience under any load, making them ideal for both everyday use and rugged adventures. The unique triple-stage design ensures flexibility throughout the suspension cycle, enhancing comfort without sacrificing support.

Installation is a breeze with the 100% bolt-on design, making it accessible for both seasoned enthusiasts and newcomers to vehicle upgrades. The kit includes crucial components such as a track bar bracket for steering correction, extended sway bar links, and the option to upgrade to FOX 2.0 Performance Series shocks for ultimate performance. The NX2 Nitro shocks included are specifically valved to optimize control and provide a stable ride, whether on highways or unpaved trails.

The comprehensive package also features high-strength lift blocks and extended U-bolts for the rear, maintaining stability while allowing for significant lift. With heavy-duty 4-link control arms, improved handling, and a beautiful aesthetics boost from a 4-inch front and 3-inch rear lift, you can navigate any terrain with confidence.

This BDS Suspension Lift Kit is the perfect upgrade for Ford Excursion owners looking to enhance ride height, capability, and overall driving enjoyment, making every journey an adventure.
