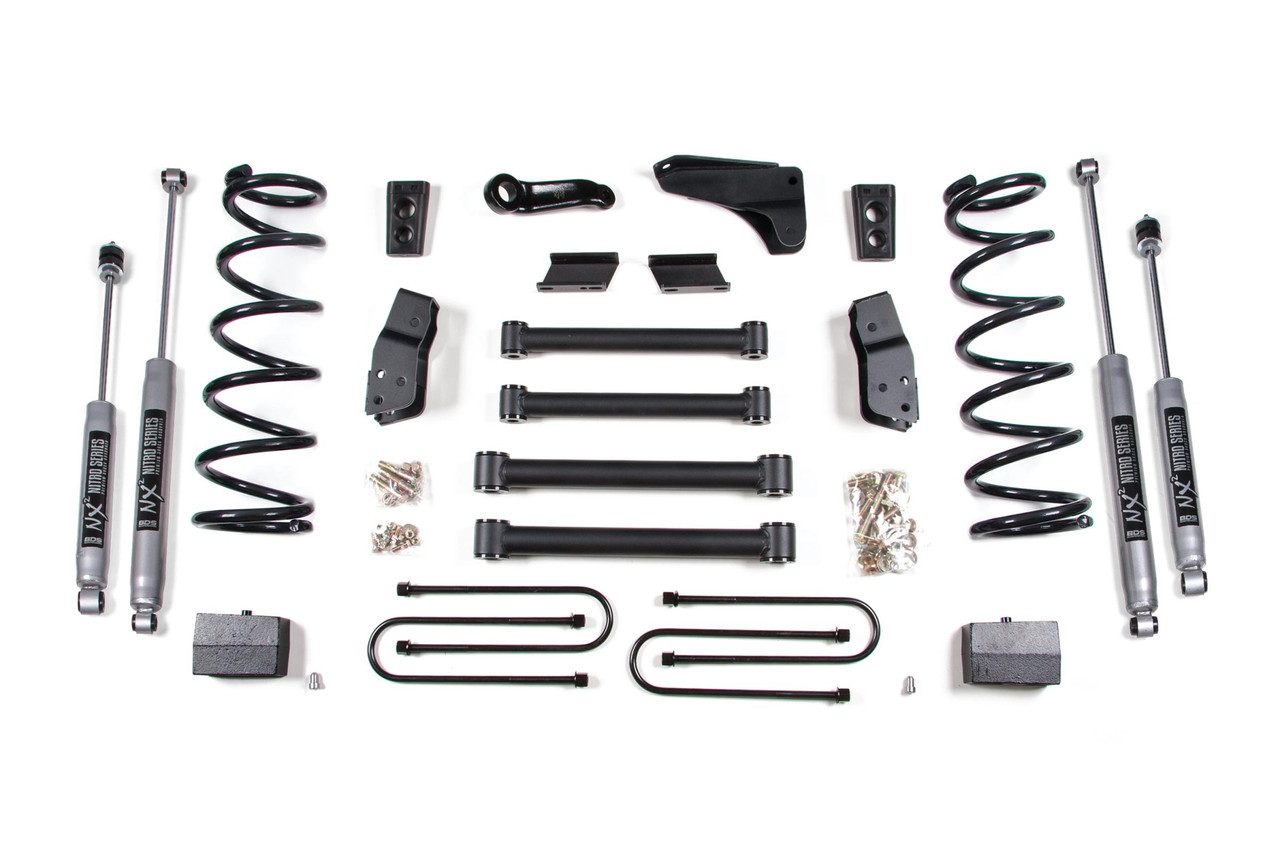

BDS SUSPENSION BDS286H 6 INCH LIFT KIT DODGE RAM 2500/3500 2008 4WD DIESEL 4 INCH BLOCK 4 INCH AXLE NX2 NITRO

Improve the ride and style of your 2008 Dodge RAM 2500 and 3500 4WD diesel powered truck with this 6-inch lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 36 inch Tires.

BDS engineered new lower control arms are longer than stock to rotate the axle for proper alignment and built a relocation mounting bracket to flatten out the angle of the upper control arm to maintain your factory handling characteristics.

Up front the lift kit includes diesel-specific Pro-Ride coil springs, all four control arms plus relocation bracket, forged drop pitman arm and track bar bracket for steering correction, bump stops, sway bar links, and precision tuned NX2 or FOX 2.0 nitrogen charged shocks.

In the rear this kit utilizes heavy duty cast steel blocks, longer u-bolts, and a matching set of NX2 Nitro or FOX 2.0 Performance shocks.

Pro-Ride Coil Springs

A pair of full-length, diesel-specific, progressive rate Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.

Manufactured from high tensile steel, our direct OE replacement coil springs are engineered with properly sized wire diameter. This results in maximum reliability without premature coil bind.

Steering Correction

To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.

• Front Lift Method: Coil Spring
• Rear Lift Method: Block
• Shocks Included: Yes
• Front Lift Height: 6 inch
• Rear Lift Height: 4 inch

1. Measure rear axle tube before ordering. Some 4 inch axle models with dual overloads will require u-bolt 4068.
2. Although unusual, if driveline vibration occurs, order appropriate transfer case drop kit 122602 (03-05 Diesel Auto), 122605 (06-08 Diesel Auto), or 122606 (03-13 Diesel Auto with OE mount P/N 52121938AA) available in options or t-case index kit. #122801 auto or #122802 for manual transmission.
3. Optional transfer case drop kits fit automatic transmission models only.
4. Exhaust modification will be required for dual rear shock kit 122009 on 6.7L Diesel models.
5. If your Truck has had the steering gear box changed and the sector shaft diameter measures 1-1/2 inch-1-5/8 inch you will need to add part # BDS082404 to your kit.

• Tubular short arms improve strength, handling and caster control
• Heavy duty control arm brackets maintain proper suspension geometry
• Front high strength progressive rate coil springs for a great ride on any terrain
• Front track bar relocation bracket to re-position axle
• Forged drop pitman arm to correct steering angles
• Front sway bar correction to maintain handling performance
• BDS NX2 gas or FOX performance series Internal Floating Piston gas shocks to improved ride and offroad performance

Rear Lift Option Block Kit

• Includes a rear block and u-bolt kit to achieve a 4 inch rear lift.
• Blocks are made from cast iron for strength.
• Tapered for correct pinion angle.
• Steel pin and hole are offset to restore axle position.

Axle Diameter 4 Inch Axle

The Dodge Ram truck has 2 different rear axle diameters. Please measure your rear axle and select the appropriate rear kit for your vehicle.

Shock Option NX2 Nitro Series

• Nitrogen-charged
• Twin-tube design
• 10-stage velocity-sensitive valving
• Dual-welded ends for increased strength
• 1-3/8-inch high-flow piston
• Self-lubricating seals
• Silver powder coat finish

Kit Components:

• Includes one BDS012405, 03-up Dodge 3/4ton 4 Inch Rear, UPC Code 658848612352
• Includes one BDS012621, 2008 Dodge 6 Inch Box Kit, UPC Code 658848612802
• Includes one BDS032503, 94-up Dodge Ram 2500(Diesel) Coil Kit, UPC Code 658848616398
• Includes two BDS85750, Shock- 27.40 x 16.20 x 2-3/8 - S50/EB2, UPC Code 711745609600
• Includes two BDS85761, Shock- 33.00 x 19.25 x 2-3/8 - EB1/EB1, UPC Code 711745609709

Elevate your 2008 Dodge RAM 2500 or 3500 4WD diesel truck's performance and aesthetics with the BDS286H 6-Inch Lift Kit. This expertly crafted lift kit is tailored to enhance your vehicle's stance while providing unparalleled ride quality. With the ability to accommodate up to 36-inch tires, this kit redefines your truck’s off-road capabilities and style.

The BDS286H features a set of innovative lower control arms designed to maintain proper axle alignment and optimize factory handling characteristics. The diesel-specific Pro-Ride coil springs ensure a smooth ride across diverse terrains, equipped with high tensile steel for enduring reliability. This kit also includes essential components such as a forged drop pitman arm, track bar bracket, and NX2 or FOX 2.0 nitrogen-charged shocks, meticulously engineered for optimal performance.

In the rear, heavy-duty cast steel blocks, longer u-bolts, and matching performance shocks elevate your truck by four inches, ensuring the ideal ride height and pinion angle. The front suspension boasts tubular short arms, which enhance strength and responsiveness, while additional sway bar correction components maintain superior handling through rugged terrains.

Installation is straightforward, with all necessary components included for a comprehensive lift setup. Please note that some modifications may be necessary depending on your truck's specific configurations, allowing for a tailored fit.

Whether tackling off-road adventures or cruising the highway, the BDS286H Lift Kit delivers impressive performance and a commanding presence. Transform your Dodge RAM into the off-road powerhouse you've always envisioned, combining style, capability, and durability with the trusted quality of BDS Suspension.
