BDS SUSPENSION

BDS SUSPENSION BDS265FS 6 INCH LIFT KIT DODGE RAM 2500/3500 03-07 4WD DIESEL 4 INCH BLOCK 4 INCH AXLE FOX 2.0 PERFORMANCE

(No reviews yet) Write a Review
SKU:
BDS265FS
MPN:
BDS265FS
Shipping:
Calculated at Checkout
  • BDS SUSPENSION BDS265FS 6 INCH LIFT KIT DODGE RAM 2500/3500 03-07 4WD DIESEL 4 INCH BLOCK 4 INCH AXLE FOX 2.0 PERFORMANCE
  • BDS SUSPENSION BDS265FS 6 INCH LIFT KIT DODGE RAM 2500/3500 03-07 4WD DIESEL 4 INCH BLOCK 4 INCH AXLE FOX 2.0 PERFORMANCE
$2,003.65

Description

Improve the ride and style of your 2003-2007 Dodge RAM 2500 and 3500 4WD diesel powered truck with this 6-inch lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 36 inch Tires.

BDS engineered new lower control arms are longer than stock to rotate the axle for proper alignment and built a relocation mounting bracket to flatten out the angle of the upper control arm to maintain your factory handling characteristics.

Up front the lift kit includes diesel-specific Pro-Ride coil springs, all four control arms plus relocation bracket, forged drop pitman arm and track bar bracket for steering correction, bump stops, sway bar links, and precision tuned NX2 or FOX 2.0 nitrogen charged shocks.

In the rear this kit utilizes heavy duty cast steel blocks, longer u-bolts, and a matching set of NX2 Nitro or FOX 2.0 Performance shocks.

Pro-Ride Coil Springs

A pair of full-length, diesel-specific, progressive rate Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains. Manufactured from high tensile steel, our direct OE replacement coil springs are engineered with properly sized wire diameter. This results in maximum reliability without premature coil bind.

Steering Correction

To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.

  • Front Lift Method: Coil Spring
  • Rear Lift Method: Block
  • Shocks Included: Yes
  • Front Lift Height: 6 inch
  • Rear Lift Height: 4 inch
  1. Measure rear axle tube before ordering. Some 4 inch axle models with dual overloads will require u-bolt 4068.
  2. Although unusual, if driveline vibration occurs, order appropriate transfer case drop kit 122602 (03-05 Diesel Auto), 122605 (06-08 Diesel Auto), or 122606 (03-13 Diesel Auto with OE mount P/N 52121938AA) available in options or t-case index kit. #122801 auto or #122802 for manual transmission.
  3. Optional transfer case drop kits fit automatic transmission models only.
  4. Exhaust modification will be required for dual rear shock kit 122009 on 6.7L Diesel models.
  5. If your Truck has had the steering gear box changed and the sector shaft diameter measures ~1-1/2 inch-1-5/8 inch you will need to add part # BDS082404 to your kit.
  • Tubular short arms improve strength, handling and caster control
  • Heavy duty control arm brackets maintain proper suspension geometry
  • Front high strength progressive rate coil springs for a great ride on any terrain
  • Front track bar relocation bracket to re-position axle
  • Forged drop pitman arm to correct steering angles
  • Front sway bar correction to maintain handling performance
  • BDS NX2 gas or FOX performance series Internal Floating Piston gas shocks to improved ride and offroad performance

Rear Lift Option Block Kit

  • Includes a rear block and u-bolt kit to achieve a 4 inch rear lift.
  • Blocks are made from cast iron for strength.
  • Tapered for correct pinion angle.
  • Steel pin and hole are offset to restore axle position.

Axle Diameter 4 Inch Axle

The Dodge Ram truck has 2 different rear axle diameters. Please measure your rear axle and select the appropriate rear kit for your vehicle.

Shock Option

FOX 2.0 Performance Series

  • 2-inch Impact extruded aluminum body
  • Internal floating piston (Internal Floating Piston) monotube design
  • CNC machined 6061-T6 aluminum mounting ends
  • Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
  • Race-developed high-flow piston design
  • Application-specific valving to maximize performance
  • Long-lasting clear anodized finish

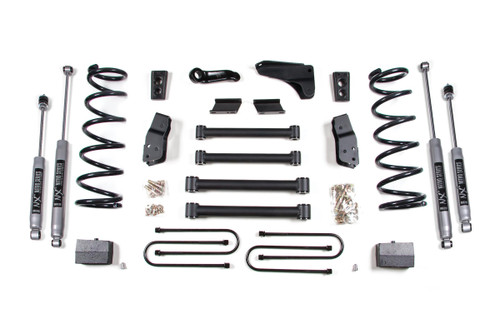

Kit Components:

  • Includes one BDS012405, 03-up Dodge 3/4ton 4 Inch Rear, UPC Code 658848612352
  • Includes one BDS012611, 03-07 Dodge 3/4-1 ton Box Kit, UPC Code 658848612734
  • Includes one BDS032503, 94-up Dodge Ram 2500(Diesel) Coil Kit, UPC Code 658848616398
  • Includes two FOX98224750, Fox 2.0 Shock 28.25 x 17.15 x 2- S50/EB1
  • Includes two FOX98224761, Fox 2.0 Shock 33.85 x 20.75 x 2- EB1/EB1

Transform your 2003-2007 Dodge RAM 2500 or 3500 4WD diesel truck with the BDS265FS 6 Inch Lift Kit from BDS Suspension. This comprehensive kit is designed to elevate your vehicle's ride height, enhance its performance, and bolster its imposing stance, allowing for the clearance of up to 36-inch tires. The lift kit's engineering focuses on maintaining proper vehicle alignment and improving overall handling characteristics.

The heart of the kit comprises diesel-specific Pro-Ride coil springs that guarantee a perfect lift while delivering a smooth and reliable ride across various terrains. Crafted from high tensile steel, these coil springs are designed to avoid premature coil bind, ensuring maximum durability. The kit also features advanced steering correction components, including a forged drop pitman arm and a heavy-duty track bar relocation bracket, which work together to optimize steering angles and maintain axle alignment during suspension travel.

For the rear, heavy-duty cast steel blocks coupled with longer u-bolts and precision-tuned NX2 Nitro or FOX 2.0 Performance shocks provide essential support and comfort. The blocks ensure correct pinion angles while restoring axle positioning for superior performance.

Whether you're navigating rugged backroads or cruising through the city, this lift kit significantly boosts off-road capability and improves on-road dynamics. The inclusion of tubular short arms enhances strength and stability, while sway bar links maintain handling performance, making it an ideal choice for those seeking both style and functional upgrades for their Dodge RAM truck. Equip your truck with the BDS265FS 6 Inch Lift Kit, and elevate not just the height of your vehicle, but also your driving experience.

View AllClose

Warranty Information

Lifetime Replacement Warranty Extends to Cover all BDS Hard Parts
